NPF-120D-12
30.02
Details

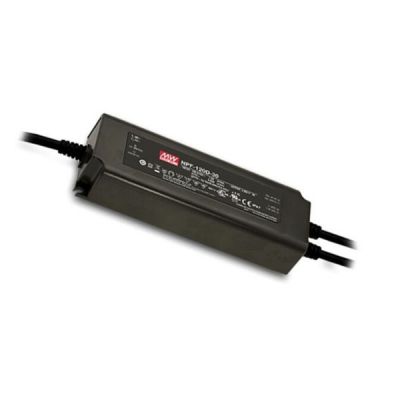

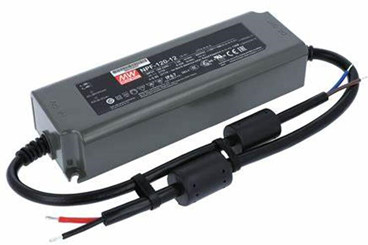

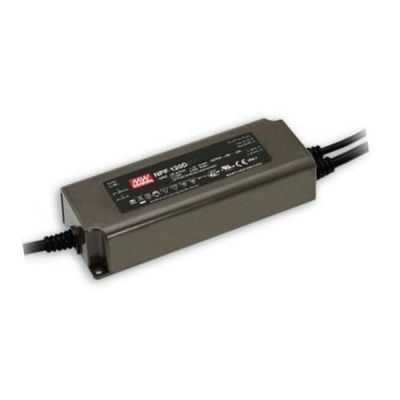

Meanwell NPF-120D-12 is 120W AC/DC LED driver with 10A120W7.2-12V±5.0%500ms/115VAC, 230VAC. The product features the constant current mode output, and operates from 90~305 VAC with rated voltage 12V. The housing highlights 94V-0 flame-retardant plastic box, and the interior filled with thermally conductive silicone for enhanced heat dissipation. Meanwhile, it is resistant to 5G vibration, and meets IP67 protection rating, which can be used in harsh environments with high dust and extreme humidity. Moreover, NPF-120D-12 has high efficiency up to 90% and no-load loss less than 0.15 watts, which can fit the energy-saving needs of the new generation of LED lighting. ClassⅡdesign (no grounding wire) and input of double-layer insulation anti-weathering SJTW wire can make users convenient and flexible installation in various types of lighting systems. Additionally, NPF-120D-12 could work in -40°C~+70 °C temperature range, in line with the relevant lighting safety specifications with 40W, 60W 90W and 120W power levels. Apart from them, the D model has an online dimming function. The constant current and constant voltage values of this series are not adjustable. Due to its longevity, high reliability, and excellent quality, Meanwell NPF-120D-12 serves as an ideal solution to offer the design flexibility for LED lighting system.
Meanwell NPF-120D-12 Encoding
| NPF | Series Name |
| 120 | Rated Wattage |
| D | Built-in 3 in 1 dimming function |
| 12 | Output Voltage |
| □ | Function options |
| Blank IP67 | 3 in 1 dimming function (0-10Vdc, 10V PWM signal and resistance In stock |
| BE IP67 | 3 in 1 Dimming function and Auxiliary DC output By request |
Meanwell NPF-120D-12 Specifications
| Model | NPF-120D-12□ | |
| OUTPUT | RATED CURRENT | 10A |
| RATED POWER | 120W | |
| CONSTANT CURRENT REGION | 7.2-12V | |
| CURRENT RIPPLE | 5.0% max. @rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| AUXILIARY DC OUTPUT | Nominal 12V (deviation 11.4~12.6V) at 0.2A for BE-Type only | |
| SET UP TIME | 500ms/115VAC, 230VAC | |
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.96/230VAC, PF>=0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=60%/115VC, 230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |
| EFFICIENCY (Typ.) BLANK-TYPE | 88.50% | |
| EFFICIENCY (Typ.) BE-TYPE | 87.50% | |
| AC CURRENT | 1.3A / 115VAC 0.65A / 230VAC 0.55A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START60A(twidth=520μ s measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| STANDBY POWER CONSUMPTION | <0.5W | |
| LEAKAGE CURRENT | <0.25mA / 277VAC | |
| PROTECTION | OVER CURRENT | 95 ~ 108% |
| Constant current limiting, recovers automatically after fault condition is removed | ||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | |
| OVER VOLTAGE | 15-17V | |
| Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+90℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent,EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved; Design refer to BS EN/EN60335-1 |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load>=60%) ; BS EN/EN61000-3-3;GB17743 and GB17625.1, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity Line-Line 2KV);EAC TP TC 020 | |
| Others | MTBF | 2632.6K hrs min. Telcordia SR-332 (Bellcore) ; 233.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 191*63*37.5mm (L*W*H) | |
| PACKING | 0.97Kg; 15pcs/15.6Kg/0.87CUFT | |
Meanwell NPF-120D-12 Features
l 5 years warranty
l Plastic housing with classⅡdesign
l Built-in active PFC function
l Standby power consumption <0.5W
l IP67 rating for indoor or outdoor installations
l Function options: 3 in 1 dimming (dim-to-off); Auxiliary DC output
l Typical lifetime > 50000 hours
Meanwell NPF-120D-12 Applications
l LED panel lighting
l LED downlight
l LED decorative lighting
l Moving sign
l Type “HL” for use in Class l, Division 2 hazardous (Classified) location
Meanwell NPF-120D-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
