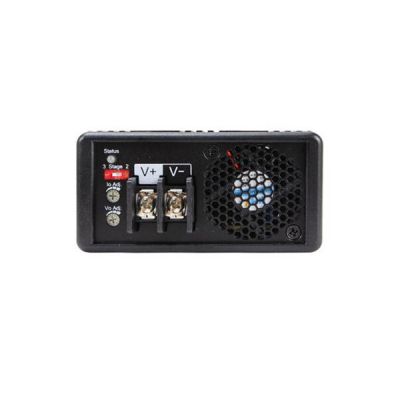

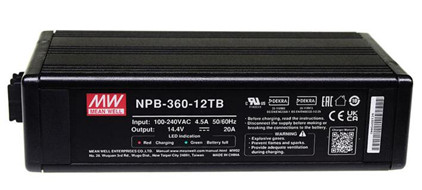

NPB-360-12
59.14
Details
Meanwell NPB-360-12 is 360W charger with 14.4V13.8V10.5-15.2V20A50%-100%304W65-195AH. The product is compatible with lead-acid (Flooded, Gel, AGM) and li-ion (Lithium iron, lithium manganese) batteries. Meanwhile, it is a class I power unit (with FG) equipped with standard IEC320-C14 AC inlet and two or three-stage charging control. In addition, NPB-360-12 provides the model with output voltages 10.5VDC, so that it can satisfy the demands for various types of batteries devices. Due to its longevity, good quality, and high reliability, Meanwell NPB-360-12 is very suitable for Radio system backup solutions, EV chargers, campervans, buses, heavy trucks, special vehicles, monitoring systems, and portable power tools.
Meanwell NPB-360-12 Encoding
| NPB | Series Name |
| 360 | Rated Wattage |
| 12 | Nominal Voltage (14.4V/28.8V/57.6V) |
| XLR | Output connector type (other options available by customers requested, please refer to page 6) |
| Type | Output Connector |
| XLR | 4 Pin Power Pin |
| AD1 | Anderson Equivalent Connector |
| TB | Terminal Block |
Meanwell NPB-360-12 Specifications
| Model | NPB-360-12□ | |
| □=XLR, AD1, TB | ||
| OUTPUT | BOOST CHARGE VOLTAGE (Vboost) (default) | 14.4V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | |
| VOLTAGE ADJUSTABLE RANGE | 10.5-15.2V | |
| OUTPUT CURRENT(Typ.) | 20A | |
| CURRENT ADJUSTABLE RANGE | 50%-100% | |
| MAX. POWER | 304W | |
| RECOMMENDED BATTERY CAPACITY (AMP HOURS | 65-195AH | |
| LEAKAGE CURRENT FROM BATTERY (Typ.) | <1mA | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.98/115VAC, PF>0.95/230VAC at full load | |
| EFFICIENCY (Typ.) XLR | 87.00% | |
| EFFICIENCY (Typ.) AD1 | 87.00% | |
| EFFICIENCY (Typ.) TB | 88.50% | |
| AC CURRENT (Typ.) | 4.5A/115VAC 2.2A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 50A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA/240VAC | |
| PROTECTION | SHORT CIRCUIT | Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover |
| OVER VOLTAGE | 16-20V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| REVERSE POLARITY | By internal fuse open | |
| OVER TEMPERATURE | Hiccup mode, recovers automatically after temperature goes down | |
| FUNCTION | CHARGING CURVE | 2 or 3 stage adjustable by DIP S.W |
| FAN CONTROL (Typ.) | Internal RTH3>=50℃ Fan ON, <=45℃ Fan OFF | |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, J62368-1(2020) (except for 48XLR & TB type) ,KC62368-1,EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55014-2,BS EN/EN55024,BS EN/EN55035, J55032(H29) (except for 48XLR & TB type), KSC 9832, KSC 9835 | |
| Others | MTBF | 1324.7K hrs min. Telcordia TR/SR-332 (Bellcore) ; 173.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 182.7*96*49mm (L*W*H) | |
| PACKING | 1.3Kg; 10pcs/ 14Kg / 1.13CUFT | |
Meanwell NPB-360-12 Features
l 3 years warranty
l 2 or 3 stage selectable by DIP S.W
l 90~264V ac universal AC input, built-in PFC
l Charger for compatible with lead-acid and li-ion batteries
l Wide adjustable output range by VR:
- Charging voltage adjustable (10.5~15.2V. 21~30.4V. 42~60.8V)
- Charging current adjustable (50~ 1 00% rated current)
l No load power consumption< O.15W (AC S.W off)
l Fan ON-OFF control (Depends on internal temperature)
l -30℃~+70℃ wide operating temperature
l Protections: Short circuit/Over voltage/Over temperature/Battery reverse polarity protection
l Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification
l Front panel LED indicator for charging status
Meanwell NPB-360-12 Applications
l Radio system backup solution
l Electric scooter charger
l Surveillance system
l Portable power tools
l Camping car, Buses, Heavy duty truck, Specialty vehicles
Meanwell NPB-360-12 Mechanical Diagram
