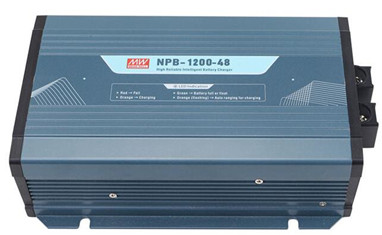

NPB-1200-48
155.97

NPB-1200-48

$155.97

1200W High Reliable Ultra Wide Output Range Intelligent Battery Charger with 57.6V55.2V42-80V18A1209.6W60-210AH<1mA

- +
Availability:In stock
SKU Meanwell NPB-1200-48
Brand Meanwell
Details

Meanwell NPB-1200-48 is a miniaturized, versatile and ultra-wide voltage intelligent charger with 57.6V55.2V42-80V18A1209.6W60-210AH<1mA. It utilizes fully digital control design with automatic battery voltage detection technology featuring intelligent, versatile, user friendly, safe and compact. The charging voltage range is wide enough to cover a variety of different battery voltages and battery chemistries. At the same time, there is a built-in intelligent voltage detection charging mode (Note this mode is set to OFF by factory default and suitable for lithium batteries with BMS only). NPB-1200-48 can pair with SBP-001 programmer for digital configuration such as adjust charging voltage/current, and set charging cycle time to protect battery lifetime. Through the user-friendly DIP S. W. on front panel, user may also directly adjust the 2/3 stage charging, current (50~100%), and choose between the 4 types of preset charging curves. Additionally, CANBus communication protocol is built in to meet professional applications, which allows remote controlling and monitoring for the status of the charger. As per safety, the model has intelligent detection for proper battery voltage and connection as well as protection from reverse polarity. The unit is also certified with ITE IEC/EN/UL62368-1 and household appliances EN60335-1/-2-29 dual safety and 3-year warranty to guarantee reliable operation. In light of its longevity, good quality, and high reliability, Meanwell NPB-1200-48 is truly an intelligent, safe, and reliable universal charger with outstanding cost performance.

Meanwell NPB-1200-48 Price and Specs Intelligent Battery Charger NPB-1200 NPB-1200-12 NPB-1200-24 AC/DC 1200W YCICT

Meanwell NPB-1200-48 Encoding

NPB Series Name
1200 Rated Wattage
48 Output Voltage (12V/24V/48V)

Meanwell NPB-1200-48 Specifications

Model NPB-1200-48
OUTPUT BOOST CHARGE VOLTAGE (Vboost) (default) 57.6V
FLOAT CHARGE VOLTAGE(Vfloat)(default) 55.2V
CHARGE VOLTAGE RANGE 42-80V
MAX. OUTPUT CURRENT(CC) 18A
MAX. POWER 1209.6W
RECOMMENDED BATTERY CAPACITY (AMP HOURS) 60-210AH
LEAKAGE CURRENT FROM BATTERY (Typ.) <1mA
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.) 94.00%
AC CURRENT (Typ.) 12A/115VAC 6.5A/230VAC
INRUSH CURRENT (Typ.) COLD START 50A at 230VAC
LEAKAGE CURRENT <1mA/240VAC
PROTECTION SHORT CIRCUIT Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover
OVER VOLTAGE 82-100V
Protection type : Shut down and latch off o/p voltage, re-power on to recover
REVERSE POLARITY Protected internal reverse detection, No damage, re-power on to recover after fault condition is removed
OVER TEMPERATURE Shut down O/P voltage, recovers automatically after temperature goes down
FUNCTION CHARGING STAGE 2 or 3 stage selectable through DIP S.W on panel
CHARGING PARAMETERS ADJUSTABLE Programmable: Constant current(CC),Tapper current(TC), Constant voltage(CV) and Float voltage(FV) can be set through SBP-001 with computer
Manual setting: 4 built-in charging curves adjustable via DIP S.W on panel, Please refer to function manual for more detail
AUTO RANGING FOR CHARGING (Typ.) Please refer to functin manual for more detail (page 8)
Charging current adjustable 50~100% by via potentiometer on panel (Only for auto ranging mode)
CANBUS INTERFACE CANBus 2.0B, Can control, Setting and monitoring(VO,IO,charging curve, internal temp. and DC output ON/OFF)
CHARGER OK The TTL signal out, Charger OK = H(4.5 ~ 5.5V) ; Charger failure or protection status =L( -0.5 ~ +0.5V)
BATTERY FULL SIGNAL The TTL signal out, Battery full = H(4.5 ~ 5.5V ); Charging = L(-0.5 ~ +0.5V)
REMOTE CONTROL Short : Charger normal work Open : Charger stop charging
TEMPERATURE COMPENSATION By external NTC
FAN SPEED CONTROL Depends on internal temperature
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.05%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
Others MTBF 517.5K hrs min. Telcordia SR-332 (Bellcore) ; 47.5K hrs min. MIL-HDBK-217F (25)
DIMENSION 250*158*67mm (L*W*H)
PACKING 1.93Kg; 4pcs/ 10Kg / 1.72CUFT

Meanwell NPB-1200-48 Features

l  3 years warranty

l  Remote ON/OFF control

l  Charger OK and Battery Full signal

l  Programmable charging curve via SBP-001

l  -30C~+70*C wide operating temperature

l  Thermal controlled DC fan for noise reduction

l  Built-in CANBus protocol for control, setting and monitoring

l  Manual setting for 2/3 stage and 4 built-in charging curves via DIP S.W

l  Temperature compensation function to prolong battery life (Lead-acid only)

l  Smart programmer available (Order NO.: SBP-0O1 , sold separately)

l  Carry handle accessory available (Order NO.: DS-Carry handle, sold separately

l  Comply with 62368-1 + 60335-1/-2-29 dual certification

l  Suitable for lead-acid (Pb) and li-ion batteries

l  Auto ranging with ultra-wide charging voltage (10.5~21V, 21~42V, 42~80V; Please refer to page 8 for setting)

l  Multiple protections: Short circuit/Over voltage/Over temperature/Battery under voltage/Battery reverse polarity (No damage)

Meanwell NPB-1200-48 Price and Specs 1200W Intelligent Battery Charger NPB-1200 NPB-1200-12 NPB-1200-24 AC/DC YCICT

Meanwell NPB-1200-48 Applications

l  AGV

l  Robotic lawn mower

l  Washing robot

l  Surveillance system

l  Radio system backup solution

l  Telecommunication base station

l  Recreation craft, Personal yacht or workboat

l  Equipment or instruments with back-up battery

l  E-Bike, E-Scooter, Camping car, Bus, Specialty vehicles

Meanwell NPB-1200-48 Mechanical Diagram

Meanwell NPB-1200-48 Price and Datasheet 1200W Intelligent Battery Charger NPB-1200 NPB-1200-12 NPB-1200-24 AC/DC YCICT

Meanwell NPB-1200-48 Price and Datasheet 1200W Intelligent Battery Charger NPB-1200 NPB-1200-12 NPB-1200-24 YCICT
