NPB-120-12
36.04
Details

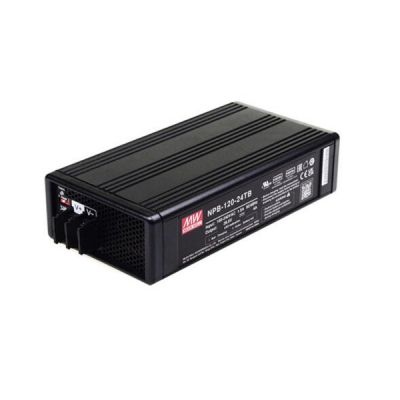

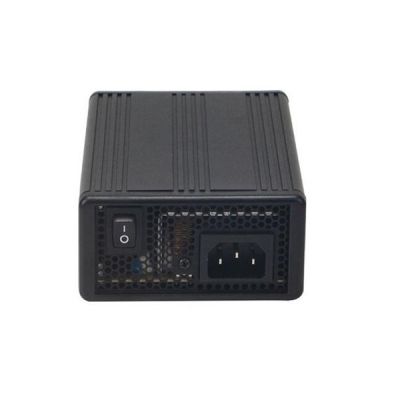

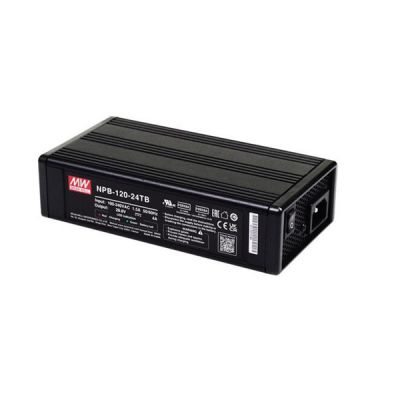

Meanwell NPB-120-12 is 120W charger with 14.4V13.8V10.5-15.2V6.8A50%-100%103.4W20-90AH. The product is compatible with lead-acid (Flooded, Gel, AGM) and li-ion (Lithium iron, lithium manganese) batteries. At the same time, it is a class I power unit (with FG) equipped with standard IEC320-C14 AC inlet and two or three-stage charging control. In addition, NPB-120-12 provides with output voltages 10.5VDC, so that the model can satisfy the demands for various types of batteries devices. Due to its longevity, good quality, and high reliability, Meanwell NPB-120-12 is very suitable for Radio system backup solutions, EV chargers, campervans, buses, heavy trucks, special vehicles, monitoring systems, and portable power tools.
Meanwell NPB-120-12 Encoding
| NPB | Series Name |
| 120 | Rated Wattage |
| 12 | Nominal Voltage (14.4V/28.8V/57.6V) |
| XLR | Output connector type (other options available by customers requested, please refer to page 6) |
Meanwell NPB-120-12 Specifications
| Model | NPB-120-12□ | |
| □=XLR, AD1, TB | ||
| OUTPUT | BOOST CHARGE VOLTAGE (Vboost) (default) | 14.4V |
| FLOAT CHARGE VOLTAGE(Vfloat)(default) | 13.8V | |
| VOLTAGE ADJUSTABLE RANGE | 10.5-15.2V | |
| OUTPUT CURRENT(Typ.) | 6.8A | |
| CURRENT ADJUSTABLE RANGE | 50%-100% | |
| MAX. POWER | 103.4W | |
| RECOMMENDED BATTERY CAPACITY (AMP HOURS | 20-90AH | |
| LEAKAGE CURRENT FROM BATTERY (Typ.) | <1mA | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR | PF>0.98/115VAC, PF>0.92/230VAC@12V,PF>0.93/230VAC@24/48V at full load | |
| EFFICIENCY (Typ.) XLR | 86.50% | |
| EFFICIENCY (Typ.) AD1 | 86.50% | |
| EFFICIENCY (Typ.) TB | 87.00% | |
| AC CURRENT (Typ.) | 1.5A/115VAC 0.8A/230VAC | |
| INRUSH CURRENT (Typ.) | COLD START 55A at 230VAC | |
| LEAKAGE CURRENT | <0.75mA/240VAC | |
| PROTECTION | SHORT CIRCUIT | Protection type : Constant current limiting, charger will shutdown after 5 sec, re-power on to recover |
| OVER VOLTAGE | 16-20V | |
| Protection type : Shut down and latch off o/p voltage, re-power on to recover | ||
| REVERSE POLARITY | By internal fuse open | |
| OVER TEMPERATURE | Hiccup mode, recovers automatically after temperature goes down | |
| FUNCTION | CHARGING CURVE | 2 or 3 stage adjustable by DIP S.W |
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.05%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | CB IEC62368-1,IEC60335-1/2-29, Dekra BS EN/EN62368-1,BS EN/EN60335-1/2-29, UL62368-1, AS/NZS60335-1/2-29, J62368-1(2020) (except for 48XLR & TB type),EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN55014-2,BS EN/EN55024,BS EN/EN55035,J55032(H29) (except for 48XLR & TB type) | |
| Others | MTBF | 1895.4K hrs min. Telcordia TR/SR-332 (Bellcore) ; 225.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 182.7*96*49mm (L*W*H) | |
| PACKING | 1.3Kg; 10pcs/ 14Kg / 1.13CUFT | |
Meanwell NPB-120-12 Features
l 3 years warranty
l Fanless design
l 90~ 264VAC universal AC input, built-in PFC
l Charger for compatible with lead-acid and li-ion batteries
l Wide adjustable output range by VR
- Charging voltage adjustable (10.5~15.2V. 21~30.4V. 42~60.8V)
- Charging current adjustable (50~100% rated current)
l 2 or 3 stage selectable by DIP S.W
l No load power consumption<0.15W (AC S.W off)
l -30℃~+70℃ wide operating temperature
l Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification

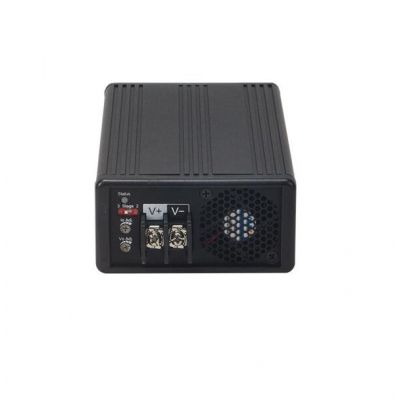

l Front panel LED indicator for charging status
l Protections: Short circuit/Over voltage/Over temperature/Battery reverse polarity protection
Meanwell NPB-120-12 Applications
l Radio system backup solution
l Electric scooter charger
l Camping car, Buses, Heavy duty truck, Specialty vehicles
l Surveillance system
l Portable power tools
Meanwell NPB-120-12 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
