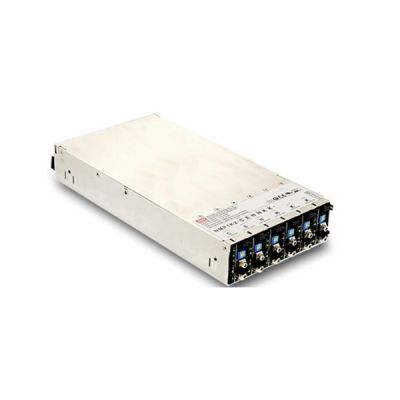

NMP650
650
Details
Meanwell NMP650 is a highly modular and configurable power supply with 28.8V27.6V110A3.5A/230VAC 7.5A/115VAC40A/230VAC 25A/115VAC. It is designed 1U low profile which is very suitable for system equipment with limited space. There are two power wattage for the line-up 650W and 1200W. A single power module can deliver output up to 240 watts and has the most critical output adjustment functions: programmable voltage (PV) and programmable constant current point (PC). What’s more, the four output modules of 5, 12, 24 and 48 volts operate in series or in parallel, covering the mainstream operating voltages of many industrial applications. Apart from them, NMP 650 has passed the double safety certification of medical (60601-1) and information communication/industrial (62368-1), and also meets the requirements of medical device insulation standards (the insulation distance between the primary side and the secondary side reaches 2x MOPP). Thanks to its high reliability, excellent quality, and longevity, Meanwell NMP650 serves as a flexible power supply solutions such as medical equipment, diagnostic or biological facilities and laser equipment and so o
Meanwell NMP650 Specifications
| Model | NMP650 (4 Slot) | |||
| Input | VOLTAGE RANGE | 28.8V | ||
| FREQUENCY RANGE | 27.6V | |||
| POWER FACTOR | 110A | |||
| EFFICIENCY(Typ.) | 91%, full case load with H / K module at nominal 24V / 48V only | |||
| 88.5%, full case load with each type of module at nominal voltage | ||||
| AC CURRENT | 3.5A/230VAC 7.5A/115VAC | |||
| INRUSH CURRENT | 40A/230VAC 25A/115VAC | |||
| LEAKAGE CURRENT | Earth leakage current <400uA / 264VAC, Touch current <100uA/264VAC | |||
| Output | TOTAL OUTPUT POWER | 650W max. | ||
| PROTECTION | OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| FUNCTION | REMOTE CONTROL | RC+/RC-: Short, Power ON RC+/RC-: Open, Power OFF | ||
| ALARM SIGNAL | TTL signal output for over temperature alarm. Please refer to the Function Manual. | |||
| AUXILIARY POWER(AUX) | 5V @ 1.5A ; tolerance ±10%; ripple: 50mVp-p (max.) | |||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Derate at 50℃, refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||
| VIBRATION | 10~500Hz, 2G 10min./1 cycle, 60 min. each along X, Y, Z axes | |||
| SAFETY &EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, Ed. 3.1,UL62368-1; TUV BS EN/EN60601-1, Ed. 3.1, TUV BS EN/EN62368-1; IEC 60601-1, Ed. 3.1, IEC 62368-1, IEC60950-1; EAC TP TC 004 approved | ||
| ISOLATION LEVEL | Primary-Secondary: 2x MOPP, Primary-Earth: 1x MOPP | |||
| WITHSTAND VOLTAGE | I/P-O/P: 4KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) | Class B | ||
| Radiated | BS EN/EN55032 (CISPR32) / BS EN/EN55011 (CISPR11) | Class A | ||
| Harmonic Current | BS EN/EN61000-3-2 | ----- | ||
| Voltage Flicker | BS EN/EN61000-3-3 | ----- | ||
| EMC IMMUNITY | BS EN/EN60601-1-2, BS EN/EN55024, SEMI F47 | |||
| Parameter | Standard | Test Level | ||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air; Level 4, 8KV contact | ||
| Radiated | BS EN/EN61000-4-3 | Level 3, 10V/m | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 3, 2KV | ||
| Surge | BS EN/EN61000-4-5 | Level 4, 4KV/Line-FG; 2KV/Line-Line | ||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V | ||
| Magnetic Field | BS EN/EN61000-4-8 | Level 4, 30A/m | ||
| Voltage Dips and Interruptions | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, | ||
| 100% interruptions 250 periods | ||||
| Others | MTBF | 1314.6K hrs min. Telcordia SR-332 (Bellcore) ; 128.2K hrs min. MIL-HDBK-217F (25℃) (NMP650) | ||
| 1275.4K hrs min. Telcordia SR-332 (Bellcore) ; 124.5K hrs min. MIL-HDBK-217F (25℃) (NMP1K2) | ||||
| DIMENSION | 250*89*41mm (L*W*H) | |||
| PACKING | 1.45Kg (typ.); 9pcs / 14Kg / 0.98CUFT | |||
Meanwell NMP650 Features
l Medical (2x MOPP) ITE safety approvals
l Suitable for BF application with appropriate system consideration (Touch current < 100uA/264V AC)
l 1U low profile
l Universal AC input/Full range
l Output voltage and current programmable
l Built-in parallel function/output programmable/global enable/remote local ON-OFF/auxiliary DC output/over temperature alarm/DC OK
l Cooling by thermostatically controlled fan with fan alarm function
l Protections: Short circuit /Overload/Over voltage/Over temperature for all output modules
l 5 years warranty
Meanwell NMP650 Applications
l Medical equipment
l Diagnostic or biological facilities
l MRI, CT and PET scanners
l Test or measurement systems
l Telecommunication equipment
l Factory automation and aging equipment
l Laser equipment
Meanwell NMP650 Mechanical Diagram
