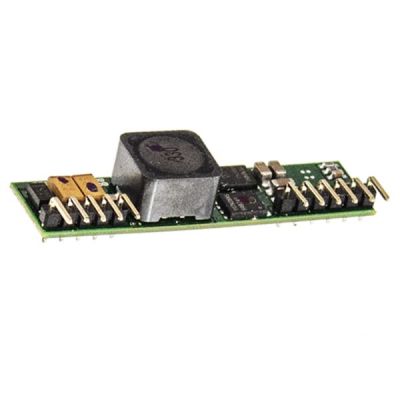

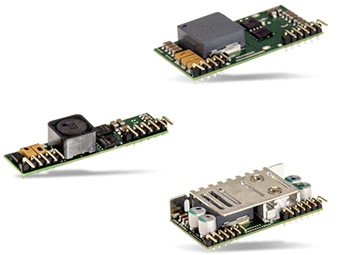

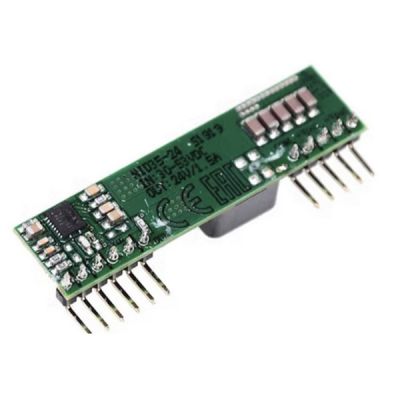

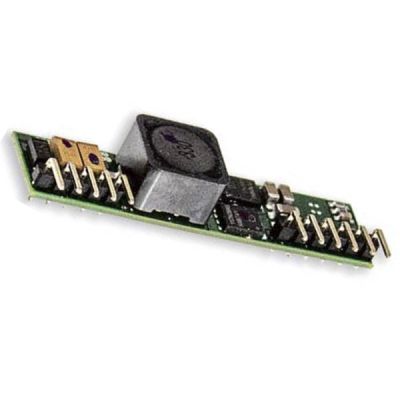

NID35
7.5
NID35

NID35

$7.50
- +
Availability:In stock
SKU Meanwell NID35
Brand Meanwell
Details

Meanwell NID35 Series Encoding

Meanwell NID35 Series Model Specifications

ORDER NO. NID35-5 NID35-12 NID35-12 NID35-24
OUTPUT DC VOLTAGE 5V 12V 15V 24V
CURRENT RANGE 0-3.5A 0-2.9A 0-2.4A 0-1.5A
RATED POWER 17.5W 34.8W 36W 36W
RIPPLE & NOISE (max.) 100mVp-p 120mVp-p 150mVp-p 200mVp-p
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±0.5% ±0.5% ±0.5% ±0.5%
VOLTAGE TOLERANCE ±2.0% ±2.0% ±2.0% ±2.0%
SWITCHING FREQUENCY (Typ.) 200KHz
EXTERNAL CAPACITANCE LOAD (max.) 100uF / 16V low ESR 68uf/25V low ESR 47uf/50V low ESR 47uf/50V low ESR
INPUT VOLTAGE RANGE 10.5 ~ 53VDC 20 ~ 53VDC 20 ~ 53VDC 30 ~ 53VDC
NORMAL VOLTAGE 24VDC (or 12VDC or 48VDC) 24VDC (or 48VDC) 24VDC (or 48VDC) 48VDC
EFFICIENCY (Typ.) 24Vin 93% (12/24VDC) 95% 96% ---
EFFICIENCY (Typ.) 48Vin 89% 93% 94% 95%
DC CURRENT Full load  1700mA/12VDC 1580mA/24VDC 1620mA/24VDC 840mA/48VDC
DC CURRENT No load 30mA 30mA 30mA 50mA
PROTECTION Fuse recommended (3A)
PROTECTION OVERLOAD (Typ.) 120 ~ 250% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 6.4-7.5V 15.6-18V 17.5-21V 28-33V
Protection type : Shut off o/p voltage, clamp by TVS diode
SHORT CIRCUIT All output equipped with short circuit
Protection type : Hiccup mode, recovers automatically after fault condition is removed
FUNCTION OPERATING REMOTE CONTROL Power on : 1.2VDC < R.C ~ com < 12VDC or open circuit ; power off : R.C ~ com < 0.4VDC or short circuit (PIN5,6 & PIN11)
ENVIRONMENT SAFETY STANDARDS EAC TP TC 004 approved
WORKING TEMP. -30 ~ +85 (Refer to "Derating Curve")
WORKING HUMIDITY 20% ~ 85% RH non-condensing
STORAGE TEMP. -30 ~ +105
TEMP. COEFFICIENT ±0.03% / (0 ~ 55)
VIBRATION 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY SAFETY STANDARDS BS EN/EN62368-1(LVD)
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032 Class A without external components,Class B with external components
Radiated BS EN/EN55032 Class A without external components,Class B with external components
EMC IMMUNITY BS EN/EN55035
Parameter Standard Test Level
Radiated BS EN/EN61000-4-3 Level 2, 3V/m ; criteria A
EFT / Burst BS EN/EN61000-4-4 Level 2, 1KV ; criteria A
Surge BS EN/EN61000-4-5 Level 2, 1KV/Line-Line,criteria A
Conducted BS EN/EN61000-4-6 Level 2, 3V ; criteria A
OTHERS MTBF 12321.5K hrs min. Telcordia SR-332 (Bellcore) ; 757.9K hrs min. MIL-HDBK-217F (25)
DIMENSION 50.8*13*11mm or 2.0"*0.512"*0.433" inch (L*W*H)
PACKING 9g;440psc/4.96Kg/0.94CUFT

Meanwell NID35 Series Features

Meanwell NID35 Series Applications

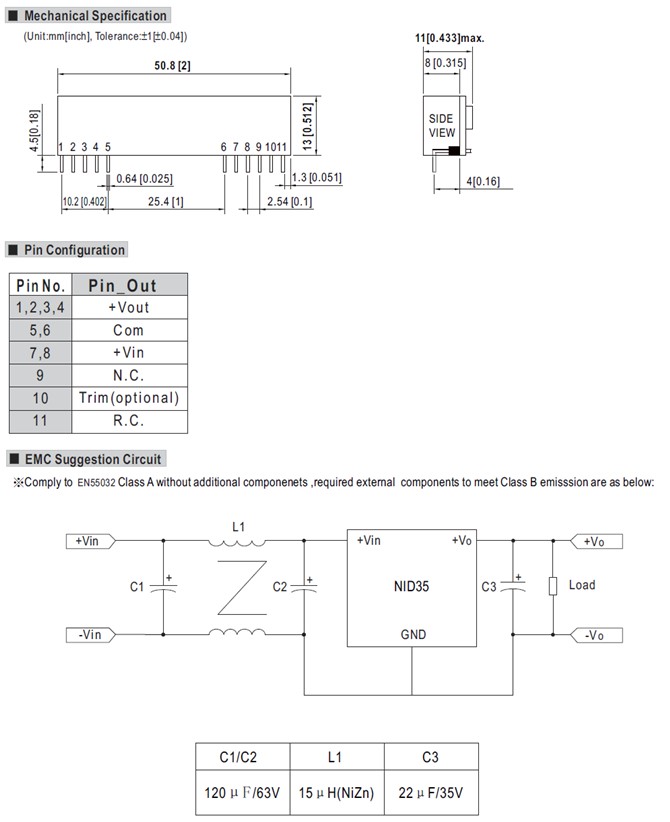

Meanwell NID35 Series Mechanical Diagram
