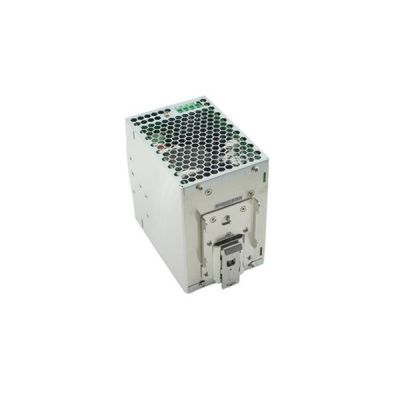

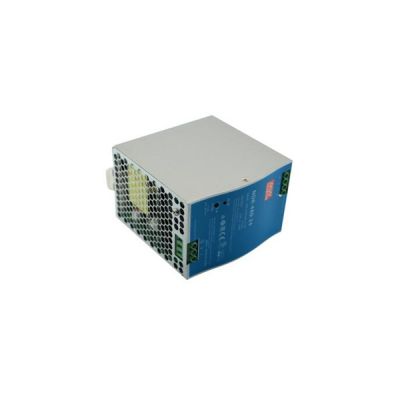

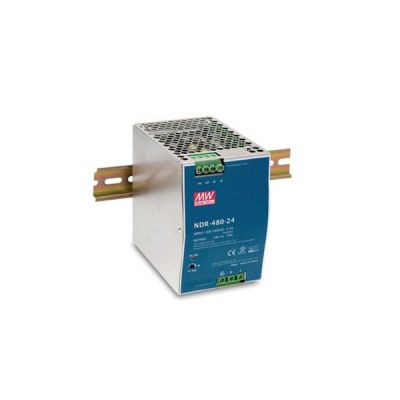

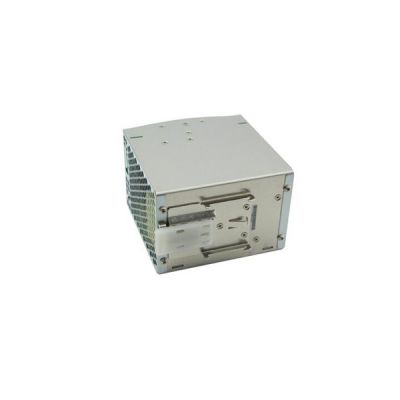

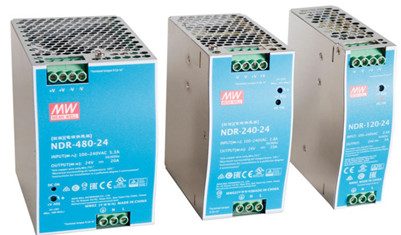

NDR-480-24
58.36
Details
Meanwell NDR-480-24 is one economical slim 480W Din rail power supply with 24V20A0-20A480W150mVp-p24-28V. The unit adapts to be installed on TS-35/7.5 or TS-35/15 mounting rails. Since the body is just 85.5mm in width, the design can save a lot of space inside the cabinets. NDR-480-24 adopts the full range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. In addition, NDR-480-24 is designed with metal housing which boosts the power dissipation. With working efficiency reaching up to 92.5%, Meanwell NDR-480-24could work at the ambient temperature between-20 ℃ and 70℃ under air convection. Furthermore, NDR-480-24 is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protections and relevant certificates for industrial control apparatus (UL .508, TUV BS EN/EN62368-1, and etc.) permits Meanwell NDR-480-24 a very competitive power supply solution for industrial applications.
Meanwell NDR-480-24 Specifications
| Model | NDR-480-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 20A | |
| CURRENT RANGE | 0-20A | |
| RATED POWER | 480W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 24-28V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1500ms, 100ms/230VAC 3000ms, 100ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR (Typ.) | PF>0.98/115VAC, PF>0.94/230VAC at full load | |
| EFFICIENCY (Typ.) | 92.50% | |
| AC CURRENT (Typ.) | 4.8A/115VAC 2.4A/230VAC | |
| INRUSH CURRENT (Typ. ) | 20A/115VAC 35A/230VAC | |
| LEAKAGE CURRENT | <2mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power |
| Protection type : Constant current limiting, unit will shut down after 3 sec., re-power on to recover | ||
| OVER VOLTAGE | 29-33V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| SAFETY &EMC | SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004 , BSMI CNS14336-1 approved;(meet BS EN/EN60204-1) |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32),BS EN/EN61204-3 Class B,BS EN/EN61000-3-2,-3,EAC TP TC 020,CNS13438 Class B | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11,BS EN/EN55024,BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN61204-3,heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 146.8K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 85.5*125.2*128.5mm (W*H*D) | |
| PACKING | 1.5Kg; 8pcs/13Kg/0.9CUFT | |
Meanwell NDR-480-24 Features
l Universal AC input/Full range
l Built-in active PFC function
l 100% full load burn-in test
l 3 years warranty
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l UL 508 (industrial control equipment) approved
l BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell NDR-480-24 Applications
l Industrial control system
l Factory automation
l Electro-mechanical apparatus
Meanwell NDR-480-24 Mechanical Diagram
