NDR-240-24
22.35

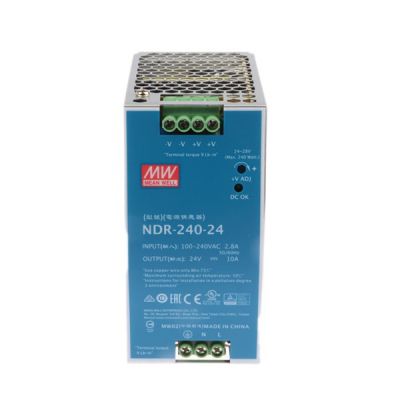

NDR-240-24

$22.35

Meanwell 240W Single Output Industrial DIN RAIL with 24V10A0-10A240W150mVp-p24-28V±1.0%±0.5%±1.0%

- +
Availability:In stock
SKU Meanwell NDR-240-24
Brand Meanwell
Details

Meanwell NDR-240-24 is one economical slim 240W Din rail power supply with 24V10A0-10A240W150mVp-p24-28V. The unit adapts to be installed on TS-35/7.5 or TS-35/15 mounting rails. As the body is designed just63mm in width, it saves much space inside the cabinets. NDR-240-24 adopts the full range AC input from 90VAC to 264V AC and complies with BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. Moreover, Meanwell NDR-240-24 is designed with metal housing that enhances the power dissipation. As working efficiency reaching up to 90%, the product can work at the ambient temperature between -20℃ and 70℃ under air convection. It is provided with constant current mode for over-load protection, fitting various inductive, or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) allow Meanwell NDR-240-24 a very competitive power supply solution for industrial applications.

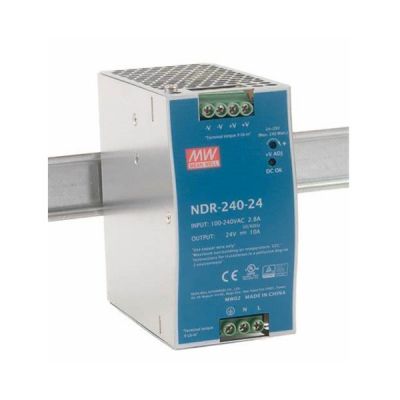

NDR-240-24 Meanwell Power Supply 240W Single Output Industrial Din Rail NDR-240 NDR-240-48 NDR Series with PFC YCICT

Meanwell NDR-240-24 Specifications

Model NDR-240-24
Output DC VOLTAGE 24V
RATED CURRENT 10A
CURRENT RANGE 0-10A
RATED POWER  240W
RIPPLE & NOISE (max.)  150mVp-p
VOLTAGE ADJ. RANGE 24-28V
VOLTAGE TOLERANCE ±1.0%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±1.0%
SETUP, RISE TIME 1500ms, 100ms/230VAC 3000ms, 100ms/115VAC at full load
HOLD UP TIME  28ms/230VAC 22ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
POWER FACTOR (Typ.) PF>0.98/115VAC, PF>0.95/230VAC at full load
EFFICIENCY (Typ.)  88.50%
AC CURRENT (Typ.) 2.5A/115VAC 1.3A/230VAC
INRUSH CURRENT (Typ. ) 20A/115VAC 35A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERLOAD 105 ~ 130% rated output power
Protection type : Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE 29-33V
Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP -20 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY &EMC SAFETY STANDARDS UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, IS13252(Part1)/IEC60950-1 approved ;(meet BS EN/EN60204-1
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2),BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020
Others MTBF 230.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 63*125.2*113.5mm (W*H*D)
PACKING 1Kg; 12pcs/13Kg/1.22CUFT

Meanwell NDR-240-24 Features

l  3 years warranty

l  Universal AC input/Full range

l  Built-in active PFC function

l  100% full load burn-in test

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  Cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5 or 15

l  UL 508 (industrial control equipment) approved

l  BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

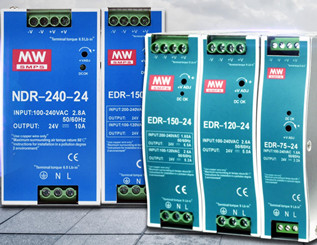

NDR-240-24 Meanwell Power Supply 240W Single Output Industrial Din Rail NDR-240 NDR-240-48 NDR Series 24v PFC YCICT

Meanwell NDR-240-24 Applications

l  Industrial control system

l  Semi-conductor fabrication equipment

l  Factory automation

l  Electro-mechanical

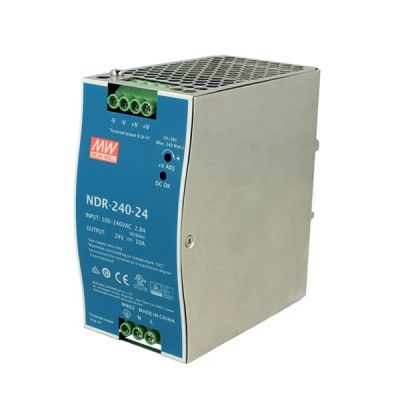

NDR-240-24 Meanwell Power Supply 240W Single Output Industrial Din Rail NDR-240 NDR-240-48 NDR Series 24v 10a YCICT

Meanwell NDR-240-24 Mechanical Diagram

NDR-240-24 Meanwell Power Supply 240W Single Output Industrial Din Rail NDR-240 NDR-240-48 NDR Series 63mm width YCICTNDR-240-24 Meanwell Power Supply 240W Single Output Industrial Din Rail NDR-240 NDR-240-48 NDR Series 63mm AC/DC YCICT
