NDR-120-24
21.92
Details

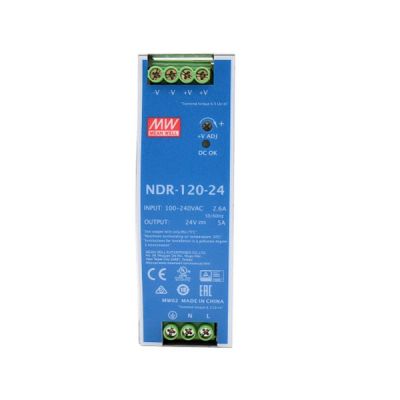

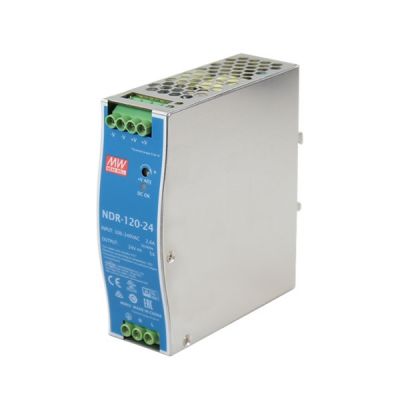

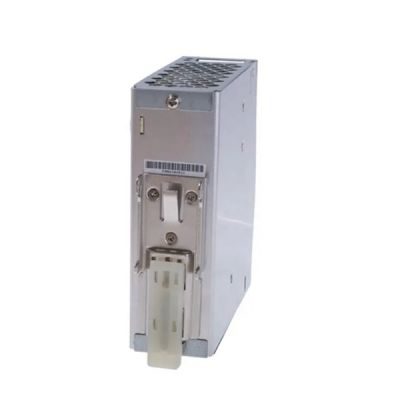

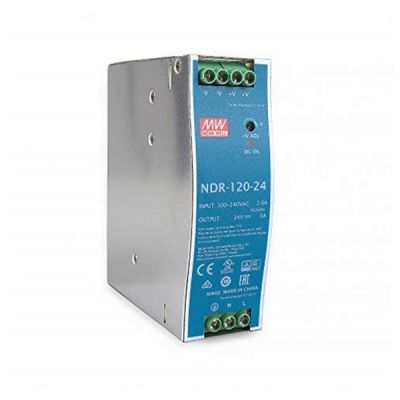

Meanwell NDR-120-24 is an economical slim 120W DIN rail power supply with 24V5A0-5A120W120mVp-p24-28V. The product is used to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed just 40mm in width, which saves a lot of space inside the cabinets. NDR-120-24 adopts the full range AC input from 90VAC to 264V AC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. Besides them, NDR-120-24 is designed with metal housing which boosts the power dissipation. As working efficiency reaches high up to 89%, it can operate at the ambient temperature between -20℃ and 70℃ under air convection. Furthermore, It is offered with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL .508, TUV BS EN/EN62368-1, and etc.) allows Meanwell NDR-120-24 a very competitive power supply solution for industrial applications.
Meanwell NDR-120-24 Specifications
| Model | NDR-120-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 5A | |
| CURRENT RANGE | 0-5A | |
| RATED POWER | 120W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 24-28V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1200ms, 60ms/230VAC 2500ms, 60ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 10ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC DC input operation possible by connecting AC/L(+), AC/N(-)] |
| FREQUENCY RANGE | 47 - 63Hz | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT (Typ.) | 2.25A/115VAC 1.3A/230VAC | |
| INRUSH CURRENT (Typ. ) | 20A/115VAC 35A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 130% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 29-33V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| SAFETY &EMC | SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004 approved;(meet BS EN/EN60204-1) |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 456.3K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 40*125.2*113.5mm (W*H*D) | |
| PACKING | 0.6Kg; 20pcs/13Kg/1.16CUFT | |
Meanwell NDR-120-24 Features
l 3 years warranty
l Universal AC input/Full range
l 100% full load burn-in test
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5 or 15
l UL 508 (industrial control equipment) approved
l BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell NDR-120-24 Applications
l Factory automation
l Industrial control system
l Electro-mechanical apparatus
l Semiconductor fabrication equipment
Meanwell NDR-120-24 Mechanical Diagram
