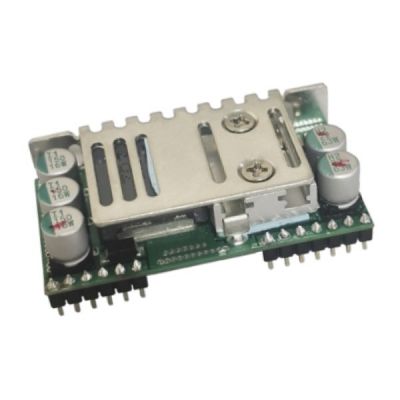

NID100-4.2
17.81
Details
Meanwell NID100-4.2 Specifications

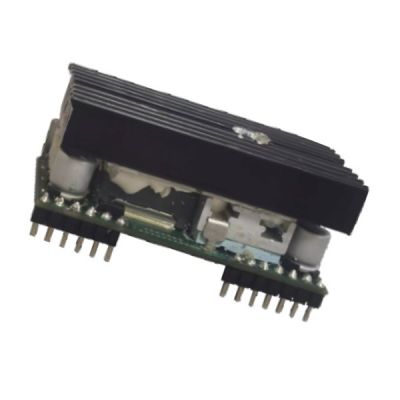

| ORDER NO. | NID100-4.2 | NID100-4.2H（with extra heatsink) | ||
| OUTPUT | DC VOLTAGE | 4.2V | ||
| RATED CURRENT | 11A | 15A | ||
| RATED POWER | 46.2W | 63W | ||
| RIPPLE & NOISE (max.) | 100mVp-p | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGULATION | ±0.5% | |||
| VOLTAGE TOLERANCE | ±2.0% | |||
| SWITCHING FREQUENCY (Typ.) | 200KHz | |||
| EXTERNAL CAPACITANCE LOAD (max.) | 100uF/16V low ESR | |||
| INPUT | VOLTAGE RANGE | 10.5 ~ 48VDC | 10.5 ~ 48VDC | |
| NORMAL VOLTAGE | 24VDC (or 48VDC) | 24VDC (or 48VDC) | ||
| EFFICIENCY (Typ.) 24Vin | 91 | 91% | ||
| EFFICIENCY (Typ.) 48Vin | 90% | 90% | ||
| DC CURRENT Full load | 5400mA/48VDC | 2500mA/48VDC | ||
| DC CURRENT No load | 20mA | 50mA | ||
| PROTECTION | Fuse recommended (8A) | |||
| PROTECTION | OVERLOAD (Typ.) | 120 ~ 300% rated output power | ||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 6.4-7.5V | |||
| Protection type : Shut off o/p voltage, clamp by TVS diode | ||||
| SHORT CIRCUIT | All output equipped with short circuit | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||
| FUNCTION OPERATING | REMOTE CONTROL | Power on : 1.2VDC < R.C ~ com < 12VDC or open circuit ; power off : R.C ~ com < 0.4VDC or short circuit (PIN5,6 & PIN11) | ||
| ENVIRONMENT | SAFETY STANDARDS | EAC TP TC 004 approved | ||
| WORKING TEMP. | -30 ~ +85℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20% ~ 85% RH non-condensing | |||
| STORAGE TEMP. | -30 ~ +105℃ | |||
| TEMP. COEFFICIENT | ±0.03% / ℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY | SAFETY STANDARDS | BS EN/EN62368-1(LVD) | ||
| EMC EMISSION | Parameter | Standard | Test Level | |
| Conducted | BS EN/EN55032 | Class A without external components,Class B with external components | ||
| Radiated | BS EN/EN55032 | Class A without external components,Class B with external components | ||
| EMC IMMUNITY | Parameter | Standard | Test Level | |
| Radiated | BS EN/EN61000-4-3 | Level 2, 3V/m ; criteria A | ||
| EFT / Burst | BS EN/EN61000-4-4 | Level 2, 3V ; criteria A | ||
| Surge | BS EN/EN61000-4-5 | Level 2, 1KV/Line-Line,criteria A | ||
| Conducted | BS EN/EN61000-4-6 | Level 2, 1KV ; criteria A | ||
| OTHERS | MTBF | 17290.5K hrs min. Telcordia SR-332 (Bellcore) ; 1000.6K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 50.8*27.5*13mm or 2.0"*1.082"*0.512" inch (L*W*H) | 50.8*27.5*19mm or 2.0"*1.082"*0.748" inch (L*W*H) | ||
| PACKING | 35g;280psc/10.8Kg/0.94CUFT | 40g;280psc/11Kg/0.94CUFT | ||
Meanwell NID100-4.2 Features
l Trimming output (optional)
l 3 years warranty
l Economical open frame design
l Wide input range
l Remote ON/OFF control
l Compact size 2.0"x1.082"x 0.472" (SIP package)
l Protections: Short circuit/Overload/Over voltage
l -30~+85℃ wide working temperature
l Cooling by free air convection
l Comply to BS EN/EN55032 Class A without additional components
Meanwell NID100-4.2 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|---|
| Meanwell DC/DC Module Type | NID100-4.2 |
