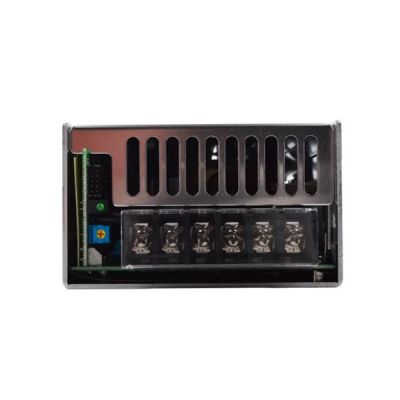

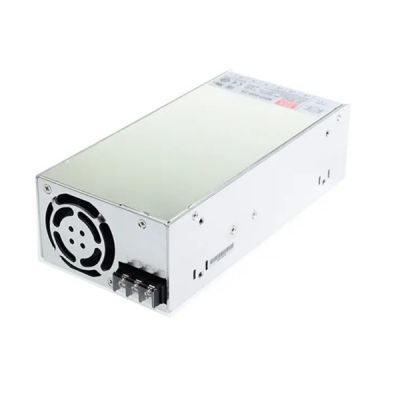

MSP-600-5
131.48
Details
Meanwell MSP-600-5 is 600W Single Output Medical Type Power Supply with Built-in active PFC function. In addition to the high efficiency, the metallic mesh case design enhances heat dissipation. By delivering an extremely low no load power consumption, it allows the end system to easily meet the worldwide energy requirement, and complied with the international safety standards such as ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 and BS EN/EN62368-1. Furthermore, MSP-600-5 is equipped with Built-in DC OK signal, cooling Fan ON-OFF control, remote ON-OFF control, remote sense function and Current sharing up. What’s more , It has multiple protection types such as short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. Thanks to its high efficiency, high reliability and long longevity. Meanwell MSP-600-5 is a high price-to-performance power supply solution for various medical applications.
Meanwell MSP-600-5 Specifications
| Model | MSP-600-5 | |
| Output | DC VOLTAGE | 5V |
| RATED CURRENT | 120A | |
| CURRENT RANGE | 0-120A | |
| RATED POWER W | 600W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 4.3-5.8V | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.93/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 82.00% | |
| AC CURRENT (Typ.) | 8.5A/115VAC 5A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 80A/230VAC | |
| LEAKAGE CURR ENT | Earth leakage current < 300 A/264VAC , Touch leakage current < 100 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 6-7V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | 5V STANDBY | 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) |
| DC OK SIGNAL | PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V | |
| FAN CONTROL (Typ.) | Load 30+-15% or RTH2>=50 degree Fan on | |
| REMOTE CONTROL | RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN60601-1-2, EAC TP TC 020 | |
| Others | MTBF | 138.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 218*105*63.5mm (L*W*H) | |
| PACKING | 1.57Kg;8pcs/13.6Kg/1.34CUFT | |
Meanwell MSP-600-5 Features
l Standby 5V@0.3A
l Built-in DC OK signal
l 5 years warranty
l Universal AC input/Full range
l Built-in active PFC function, PF>0.94
l High efficiency up to 89%
l Built-in remote ON-OFF control
l Built-in remote sense function
l No load power consumption<0.8W
l Current sharing up to 2400W (3+1) (24V ,36V ,48V)
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (MOOP level)
l Built-in cooling fan ON-OFF control
Meanwell MSP-600-5 Mechanical Diagram
