MSP-600-24
136.38
Details

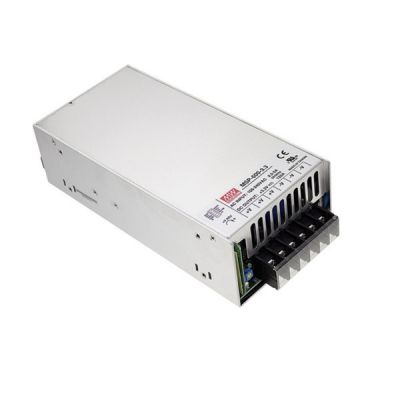

Meanwell MSP-600-24 is 600W Single Output Medical Type Power Supply with Built-in active PFC function. Apart from the high efficiency reaching up to 88%, the metallic mesh case design improves its heat dissipation. With delivering an extremely low no load power consumption, it allows the end system to easily meet the worldwide energy requirements, and complied with the international safety standards such as ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 and BS EN/EN62368-1. Moreover, MSP-600-24 is equipped with Built-in DC OK signal, cooling Fan ON-OFF control, remote ON-OFF control, remote sense function and Current sharing up. In addition, It has multiple protection types such as short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. Because of its high efficiency, high reliability and long longevity. Meanwell MSP-600-24 is a high price-to-performance power supply solution for various medical applications.
Meanwell MSP-600-24 Specifications
| Model | MSP-600-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 27A | |
| CURRENT RANGE | 0-27A | |
| RATED POWER W | 648W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | |
| VOLTAGE ADJ. RANGE | 21.6-28.8V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.2% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2500ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.93/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 88.00% | |
| AC CURRENT (Typ.) | 8.5A/115VAC 5A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 80A/230VAC | |
| LEAKAGE CURR ENT | Earth leakage current < 300 A/264VAC , Touch leakage current < 100 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 30-34.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | 5V STANDBY | 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) |
| DC OK SIGNAL | PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V | |
| FAN CONTROL (Typ.) | Load 30+-15% or RTH2>=50 degree Fan on | |
| REMOTE CONTROL | RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN60601-1-2, EAC TP TC 020 | |
| Others | MTBF | 138.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 218*105*63.5mm (L*W*H) | |
| PACKING | 1.57Kg;8pcs/13.6Kg/1.34CUFT | |
Meanwell MSP-600-24 Features
l Standby 5V@0.3A
l Built-in DC OK signal
l 5 years warranty
l High efficiency up to 89%
l Universal AC input/Full range
l Built-in remote ON-OFF control
l Built-in remote sense function
l No load power consumption<0.8W
l Medical safety approved (MOOP level)
l Built-in cooling fan ON-OFF control
l Built-in active PFC function, PF>0.94
l Withstand 300VAC surge input for 5 seconds
l Current sharing up to 2400W (3+1) (24V ,36V ,48V)
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell MSP-600-24 Mechanical Diagram
