MSP-450
120.14
Details
Meanwell MSP-450 Series is 450 W Single Medical Type Output with Built-in PFC Function. The entire series provides an output voltage line of 3.3V 5V 7.5V 12V 15V 24V 36V 48V. Apart from the high efficiency reaching up to 89.5%, the metallic mesh case design enhances the heat dissipation. With delivering an extremely low no load power consumption, the product permits end system to easily fulfill the worldwide energy standards, and complied with the international safety regulations such as ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 and BS EN/EN62368-1. Furthermore, MSP-450 is equipped with Built-in DC OK signal, cooling Fan ON-OFF control, constant current limiting circuit, remote ON-OFF control and remote sense function. Additionally, It has multiple protection types such as short circuit, over load, over voltage and Over temperature, and as well withstand 300VAC surge input for 5 seconds. Considering its high efficiency, high reliability and long longevity. Meanwell MSP-450 Series serves as a high price-to-performance power supply solution for various medical applications.
Meanwell MSP-450 Series Model Specifications
| Model | MSP-450-3.3 | MSP-450-5 | MSP-450-7.5 | MSP-450-12 | MSP-450-15 | MSP-450-24 | MSP-450-36 | MSP-450-48 | |
| Output | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 90A | 90A | 60A | 37.5A | 30A | 18.8A | 12.5A | 9.5A | |
| CURRENT RANGE | 0-90A | 0-90A | 0-60A | 0-37.5A | 0-30A | 0-18.8A | 0-12.5A | 0-9.5A | |
| RATED POWER W | 297W | 450W | 450W | 450W | 450W | 451.2W | 450W | 456W | |
| RIPPLE & NOISE (max.) mVp-p | 80 | 80 | 100 | 120 | 150 | 150 | 240 | 240 | |
| VOLTAGE ADJ. RANGE | 2.8-3.8V | 4.3-5.8V | 6.8-9V | 10.2-13.8V | 13.5-18V | 21.6-28.8V | 28.8-39.6V | 40.8-65.2V | |
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load | ||||||||
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | ||||||||
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||||||
| FREQUENCY RANGE | 47 - 63Hz | ||||||||
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | ||||||||
| EFFICIENCY (Typ.) | 80.00% | 83.00% | 86.00% | 88.00% | 89.00% | 88.00% | 89.00% | 89.50% | |
| AC CURRENT (Typ.) | 5A/115VAC 2.4A/230VAC | ||||||||
| INRUSH CURRENT (Typ. ) | 35A/115VAC 70A/230VAC | ||||||||
| LEAKAGE CURR ENT | Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC | ||||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 3.96-4.62V | 6-7V | 9.4-10.9V | 14.4-16.8V | 18.8-21.8V | 30-34.8V | 41.4-48.6V | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| FUNCTION | 5V STANDBY | 5VSB : 5V@0.3A ; tolerance±5%, ripple : 50mVp-p(max.) | |||||||
| DC OK SIGNAL | PSU turn on : 3.3 ~ 5.6V ; PSU turn off : 0 ~ 1V | ||||||||
| FAN CONTROL (Typ.) | Load 20+-10% or RTH2>=50 degree Fan on | ||||||||
| REMOTE CONTROL | RC+ / RC-: 4 ~ 10V or open = power on ; 0 ~ 0.8V or short = power off | ||||||||
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
| SAFETY &EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 approved; Meet BS EN/EN62368-1 | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN60601-1-2, EAC TP TC 020 | ||||||||
| Others | MTBF | 159.3K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 218*105*41mm (L*W*H) | ||||||||
| PACKING | 1.19Kg; 12pcs/15.3Kg/0.82CUFT | ||||||||
Meanwell MSP-450 Series Features
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l High efficiency up to 89.5%
l Withstand 300V AC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Built-in constant current limiting circuit
l Medical safety approved (MOOP level)
l Built-in cooling Fan ON-OFF control
l Built-in DC OK signal
l Built-in remote ON-OFF control
l Stand by 5V@0.3A
l Built-in remote sense function
l No load power consumption<0.6W
l 5 years warranty

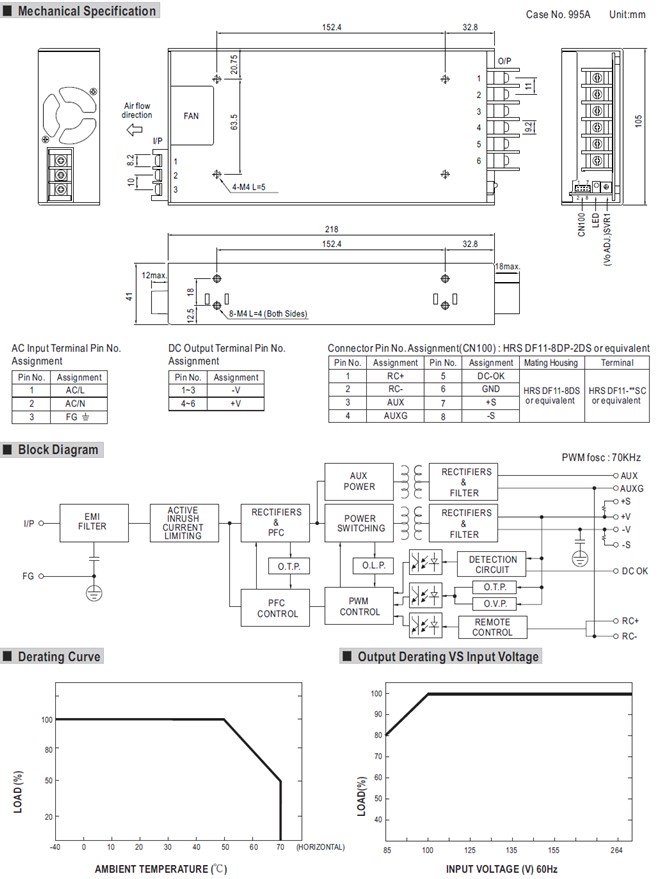

Meanwell MSP-450 Series Mechanical Diagram
