MSP-1000-24
155.58
Details

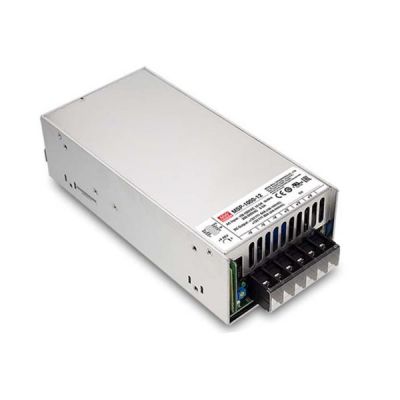

Meanwell MSP-1000-24 is a single output enclosed type AC/DC power supply with 24V42A0-42A1008W, and delivers 1000W output power for a wide range of medical applications. The model operates for 90~264 VAC input voltage and able to satisfy the demands for all kinds of medical equipment. In addition, the circuitry design fits the international medical standards, 2x MOPP, suitable for medical electrical devices. What’s more, MSP-1000-24 is equipped with various built-in functions such as auxiliary power, remote sense and remote on-off control. Due to its high performance, MSP-1000-24 supplies vast design flexibility for the purpose of using control solutions.
Meanwell MSP-1000-24 Encoding
| MSP | Series Name |
| 1000 | Output Wattage |
| 24 | Output Voltage |
Meanwell MSP-1000-24 Specifications
| Model | MSP-1000-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 42A | |
| CURRENT RANGE | 0-42A | |
| RATED POWER | 1008W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 22-28V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 50ms/230VAC 2000ms, 50ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC(300VAC for 5 sec.) 127 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.99/115VAC at full load | |
| EFFICIENCY (Typ.) | 93.00% | |
| AC CURRENT (Typ.) | 8.5A/115VAC 5A/230VAC | |
| INRUSH CURRENT (Typ. ) | 20A/115VAC 40A/230VAC | |
| LEAKAGE CURR ENT | Earth leakage current < 360 A/264VAC , Touch leakage current < 100 A/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 29-33V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | DC OK SIGNAL | The TTL signal out, PSU turn on = 3.3 ~ 5.6V ; PSU turn off = 0 ~ 1V. Please refer to the Function Manual. |
| CURRENT SHARING | Up to 4000W or (3+1) units. Please refer to the Function Manual | |
| REMOTE ON-OFF CONTROL | Power ON : short; Power OFF : open. Please refer to the Function Manual. | |
| REMOTE SENSE | Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual | |
| 5V STANDBY | 5VSB : 5V@0.3A ; tolerance 5%, ripple : 50mVp-p(max.) | |
| FAN CONTROL (Typ.) | Fan on/off by NTC(RT50) or 30% load min | |
| ENVIRONMENT | WORKING TEMP | -40 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, IEC60601-1 ; CAN/CSA-C22.2 No.60601-1:14-Edition 3 approved; Meet EN62368-1 |
| WITHSTAND VOLTAGE | I/P-O/P:4.5KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH | |
| Others | MTBF | 286.3K hrs min. Telcordia SR-332 (Bellcore) ; 105.7K hrs min. MIL-HDBK-217F (25 ) |
| DIMENSION | 218*105*63.5mm (L*W*H) | |
| PACKING | 1.53Kg;8pcs/13.3Kg/1.34CUFT | |
Meanwell MSP-1000-24 Features
l Built-in DC OK signal
l Built-in remote ON-OFF control
l Standby 5V@0.3A
l Built-in remote sense function
l No load power consumption<0.75W
l 5 years warranty
l Universal AC input/Full range
l Built-in active PFC function, PF>0.95
l High efficiency up to 94%
l Built-in cooling fan ON-OFF control
l Current sharing up to 4000W (3+1)
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Medical safety approved (2xMOPP)
l Suitable for BF application with appropriate system consideration
Meanwell MSP-1000-24 Applications
l MRI scanner
l CT and PET scanner
l Medical bed
l Surgery table
l Medical measurement device
Meanwell MSP-1000-24 Mechanical Diagram
