MSP-100-3.3
44.58
Details

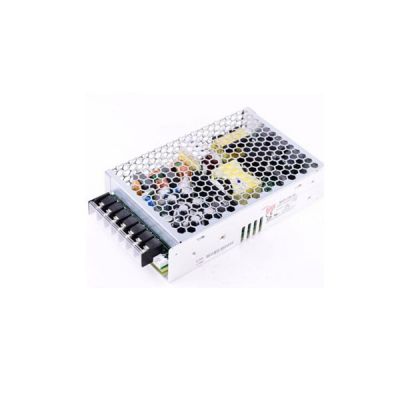

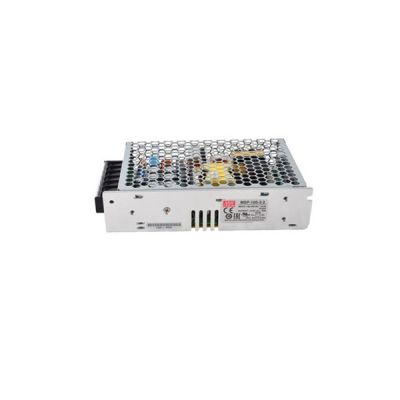

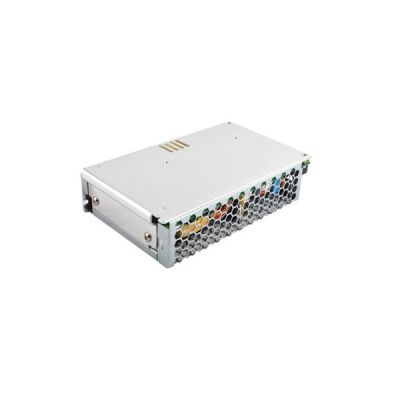

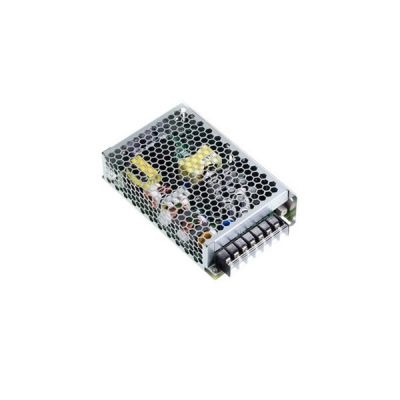

Meanwell MSP-100-3.3 is 100W Single Output Medical Type with 1U low profile 38mm and free air convection. Apart from the high efficiency and extremely low no load power consumption, it permits the end system to easily fulfill the worldwide energy requirement, and complied with the international safety regulations such as ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 and Medical safety approved. In addition, MSP-100-3.3 is equipped with Built-in active PFC function and remote ON-OFF control. Moreover, It has multiple protection types such as short circuit, over load, over voltage and Over temperature (optional), and as well withstand 300VAC surge input for 5 seconds. Due to its high efficiency, high reliability and long longevity. Meanwell MSP-100-3.3 is a high price-to-performance power supply solution for medical fields.
Meanwell MSP-100-3.3 Specifications
| Model | MSP-100-3.3 | |
| Output | DC VOLTAGE | 3.3V |
| RATED CURRENT | 20A | |
| CURRENT RANGE | 0-20A | |
| RATED POWER W | 66W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE ADJ. RANGE | 3.1-3.8V | |
| VOLTAGE TOLERANCE | +2.5,-3.5% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±2% | |
| SETUP, RISE TIME | 2500ms, 100ms/230VAC 2500ms, 100ms/115VAC at full load | |
| HOLD UP TIME | 50ms/230VAC 20ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 78.00% | |
| AC CURRENT (Typ.) | 1.2A/115VAC 0.6A/230VAC | |
| INRUSH CURRENT (Typ. ) | 35A/115VAC 65A/230VAC | |
| LEAKAGE CURR ENT | Earth leakage current < 300μA/264VAC , Touch leakage current < 100μA/264VAC | |
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power |
| Protection type : Constant current limiting for Vo=50 ~ 100% of rated voltage, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 3.96-4.62V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| FUNCTION | REMOTE CONTROL | RC+/RC- : 0 ~ 0.8V= power on ; 4 ~ 10V = power off |
| ENVIRONMENT | WORKING TEMP | -40 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.04%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | ANSI/AAMI ES60601-1, IEC60601-1, EAC TP TC 004 approved, Design refer to BS EN/EN60601-1, BS EN/EN62368-1 |
| WITHSTAND VOLTAGE | Primary-Secondary: 2×MOOP, Primary-Earth: 1×MOOP, Secondary-Earth: 1×MOOP | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, EN61000-3-2,-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN55011 (CISPR11) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| Others | MTBF | 295.7K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*38mm (L*W*H) | |
| PACKING | 0.38Kg; 24pcs/10.1Kg/0.9CUFT | |
Meanwell MSP-100-3.3 Features
l Universal AC input/Full range
l Built-in active PFC function
l High efficiency up to 90%
l 5 years warranty
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload /Over voltage
l Protections: Over temperature (optional)
l Cooling by free air convection
l 1U low profile 38mm
l Medical safety approved (MOOP level)
l Built-in remote ON-OFF control
l No load power consumption<0.5W
l All using 105℃ long life electrolytic capacitors
Meanwell MSP-100-3.3 Mechanical Diagram
