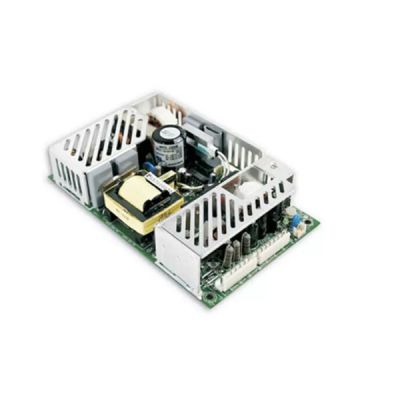

MS-75
9.14
Details
Meanwell MS-75 Series Model Specifications
| OUTPUT VOLTAGE CODE | MS-75L | MS-75M | MS-75N | MS-75Q | MS-75P | MS-75Q | |
| Output( MS-150) | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 15A | 15A | 6.3A | 5A | 3.2A | 1.6A | |
| CURRENT RANGE | 0-15A | 0-15A | 0-6.3A | 0-5A | 0-3.2A | 0-1.6A | |
| PEAK LOAD | 17.3A | 17.3A | 7.3A | 5.8A | 3.7A | 1.8A | |
| RATED POWER | 49.5W | 75W | 75.6W | 75W | 76.8W | 76.8W | |
| RIPPLE & NOISE (max.) | 80 mVp-p | 80 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 250 mVp-p | |
| VOLTAGE ADJ. RANGE | 2.6-4V | 4-6V | 9-13.2V | 13.2-16.8V | 20-26.4V | 40-53V | |
| VOLTAGE TOLERANCE | ±2.0% | ±2.0% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 50ms, 20ms at full load | ||||||
| PROTECTION | OVERLOAD | 116 ~ 150% rated output power | |||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 4.1-5V | 6.1-7.5V | 13.3-18V | 16.9-22V | 26.5-35V | 53.1-60V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| FUNCTION | REMOTE INHIBIT CONTROL | RC+/RC-: 0 ~ 0.8V or OPEN, POWER ON RC+/RC-: 4 ~ 12V POWER OFF | |||||
Meanwell MS-75 Series Features
l 3 years warranty
l Built in active PFC, PF>0.95
l Universal AC input/ full range
l Remote Control on every individual output module
l Remote Sense on every single output module (MS-75, 150,210,300,360)
l Remote margin/V-Program (MS-210/360)
l Built in parallel function (MS-2 10/300/360)
l Protections: Short circuit/Overload/Over voltage for all output modules
l Additional 12V/0.1A auxiliary output for remote control
l Cooling by built-in DC fan with fan alarm function
l Various output configuration is selectable
