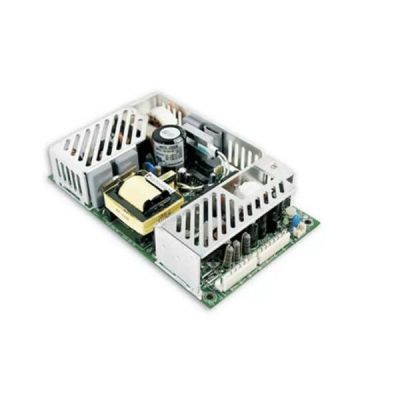

MS-300-2
11.02
Details
Meanwell MS-300-2 Series Model Specifications
| OUTPUT VOLTAGE CODE | MS-300-2A | MS-300-2B | MS-300-2C | MS-300-2D | MS-300-2E | MS-300-2F | MS-300-2G | MS-300-2H | MS-300-2I | MS-300-2J | MS-300-2K | |
| Output( MS-150) | DC VOLTAGE | 2V | 3.3V | 5V | 7.5V | 12V | 15V | 18V | 24V | 27V | 33V | 48V |
| RATED CURRENT | 50A | 50A | 50A | 40A | 25A | 20A | 16.7A | 12.5A | 11.2A | 9.1A | 6.3A | |
| CURRENT RANGE | 0-50A | 0-50A | 0-50A | 0-40A | 0-25A | 0-20A | 0-16.7A | 0-12.5A | 0-11.2A | 0-9.1A | 0-6.3A | |
| PEAK LOAD | 57.5A | 57.5A | 57.5A | 46A | 29A | 23A | 19.2A | 14.4A | 12.9A | 10.5A | 7.2A | |
| RATED POWER | 100W | 165W | 250W | 300W | 300W | 300W | 300W | 300W | 302.4W | 300.3W | 302.4W | |
| RIPPLE & NOISE (max.) | 80 mVp-p | 80 mVp-p | 80 mVp-p | 1000 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 200 mVp-p | 250 mVp-p | 300 mVp-p | |
| VOLTAGE ADJ. RANGE | 1.6-2.6V | 2.6-4V | 4-6V | 6-9V | 9-13.2V | 13.2-16.8V | 16.8-20V | 20-26.4V | 25-31V | 30-40V | 40-53V | |
| VOLTAGE TOLERANCE | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 1500ms, 50ms, 20ms at full load | |||||||||||
| PROTECTION | OVERLOAD | 116 ~ 150% rated output power | ||||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||||
| OVER VOLTAGE | 3-4V | 4.1-5V | 6.1-7.5V | 9.1-11.2V | 13.3-18V | 16.9-22V | 20.1-26V | 26.5-35V | 31.1-39V | 40.1-48V | 53.1-60V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||||
| FUNCTION | REMOTE INHIBIT CONTROL | RC+/RC-: 0 ~ 0.8V or OPEN, POWER ON RC+/RC-: 4 ~ 12V POWER OFF | ||||||||||
