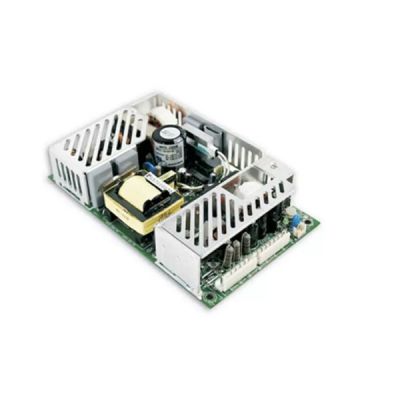

MS-210-1
10.01
Details
Meanwell MS-210-1 Series Model Specifications
| OUTPUT VOLTAGE CODE | MS-210-1A | MS-210-1B | MS-210-1C | MS-210-1D | MS-210-1E | MS-210-1F | MS-210-1G | MS-210-1H | MS-210-1I | MS-210-1J | MS-210-1K | |
| Output( MS-150) | DC VOLTAGE | 2V | 3.3V | 5V | 7.5V | 12V | 15V | 18V | 24V | 27V | 33V | 48V |
| RATED CURRENT | 35A | 35A | 35A | 28A | 17.5A | 14A | 11.6A | 8.75A | 7.8A | 6.4A | 4.4A | |
| CURRENT RANGE | 0-35A | 0-35A | 0-35A | 0-28A | 0-17.5A | 0-14A | 0-11.6A | 0-8.75A | 0-7.8A | 0-6.4A | 0-4.4A | |
| PEAK LOAD | 38.5A | 38.5A | 38.5A | 32.2A | 20.1A | 16.1A | 13.4A | 10.1A | 9A | 7.4A | 5.1A | |
| RATED POWER | 70W | 115.5W | 175W | 210W | 210W | 210W | 208.8W | 210W | 210.6W | 211.2W | 211.2W | |
| RIPPLE & NOISE (max.) | 50 mVp-p | 80 mVp-p | 80 mVp-p | 1000 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 150 mVp-p | 250 mVp-p | 250 mVp-p | |
| VOLTAGE ADJ. RANGE | 1.6-2.6V | 2.6-4V | 4-6V | 6-9V | 9-13.2V | 13.2-16.8V | 16.8-20V | 20-26.4V | 25-31V | 30-40V | 40-53V | |
| VOLTAGE TOLERANCE | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 50ms, 20ms at full load | |||||||||||
| PROTECTION | OVERLOAD | 110 ~ 135% rated output power | 116 ~ 150% rated output power | |||||||||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||||||||||
| OVER VOLTAGE | 2.7-4V | 4.1-5V | 6.1-7.5V | 9.1-11.2V | 13.3-18V | 16.9-22V | 20.1-26V | 26.5-35V | 31.1-39V | 40.1-48V | 53.1-60V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | |||||||||||
| FUNCTION | REMOTE INHIBIT CONTROL | RC+/RC-: 0 ~ 0.8V or OPEN, POWER ON RC+/RC-: 4 ~ 12V POWER OFF | ||||||||||
