MPQ-200F
122.94
Details

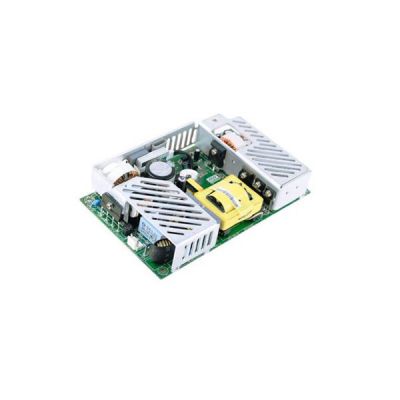

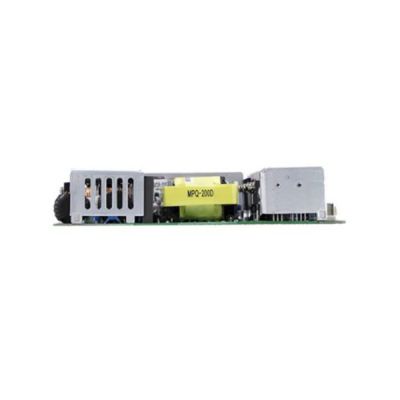

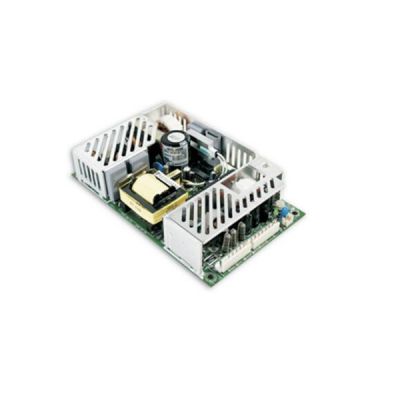

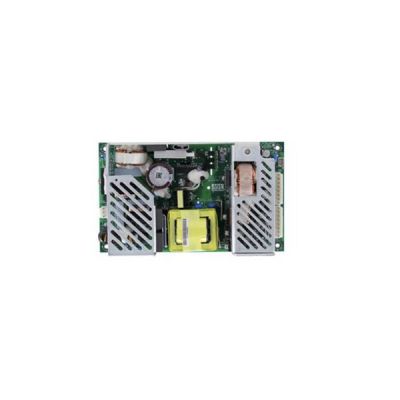

Meanwell MPQ-200F is a 1~4 Output Medical Type power supply with 5V24V15V-15V3A12A15A18A0.3A2.1A2.7A3.3A0A1A2A2.4A0A1A2A2.4A0A1A2A2.4A. It is designed with high power density with 90~264VAC input and Quad output voltages. At the same time, MPQ-200F stands out with the working efficiency up to 81%, low no load power consumption and low leakage current less than 150uA. Therefore it could be applied for ClassⅠ(with FG) system design. As per free air convection for 140W and forced air convection for 200W. Meanwell MPQ-200F satisfies the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Moreover, the product is equipped with Built-in remote ON-OFF control Built-in remote sense function and Fixed switching frequency at 100KHz. Apart from them, the model offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. As a result of its long lifespan, high reliability, excellent quality, Meanwell MPQ-200F is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell MPQ-200F Specifications
| Model | MPQ-200F | ||||
| OUTPUT | OUTPUTVOLTAGE | 5V | 24V | 15V | -15V |
| RATED CURRENT | 3A | 12A | 15A | 18A | |
| MINIMUM LOAD | 0.3A | 2.1A | 2.7A | 3.3A | |
| CONVECTION max. | 0A | 1A | 2A | 2.4A | |
| WITH FAN (25CFM) | 0A | 1A | 2A | 2.4A | |
| PEAK LOAD WITH 25CFM FAN | 0A | 1A | 2A | 2.4A | |
| RIPPLE & NOISE (max.) | 80mVp-p | 180mVp-p | 80mVp-p | 80mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | ±8.0% | ±5.0% | ±5.0% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | ±5.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 20ms / 230VAC at full load 3000ms, 20ms / 115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 16ms / 230VAC at full load 16ms / 115VAC at full load | ||||
| EFFICIENCY (Typ.) | 81% | ||||
| INRUSH CURRENT(Typ.) | Inrush current is less than 25A at 115VAC orless than 40A at 230VAC under cold start conditions. Limiting provided by internal thermistors. |
||||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | ||||
| PROTECTION | OVERL OAD | Fully protected against short circuit and output overload. The hiccup type protection will be activated at 120~160% rated load and recovers automatically after fault condition is removed. |
|||
| OVER VOLTAGE | Provided on output channel 1 only at 115%~135% rated output voltage. Output will be shut down when this protection is activated | ||||
| OVER TEMPERATURE PROTECTION | When the temperature of TSW1 which detect on heat sink of power transistor reaches 95℃, This protection is activated. Then output will be shut down and recovers automatically after temperature goes down. |
||||
| ENVIRONMENT | WORKING TEMP. | Whole series can operate from -20~70℃. Please refer to the derating curves | |||
| WORKING HUMIDITY | 20~90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40~+85℃, 10~90% RH | ||||
| TEMP. COEFFICIENT | ±0.04%/℃ on all outputs at full load between 0~50℃ of ambient temperature | ||||
| VIBRATION | 2G of acceleration, vibrating frequency adjust from 10Hz ~500Hz within a10-minute cycle. 6 testing cycles (60 minutes) each along X, Y, Z axes. | ||||
| SAFETY & EMC | SAFETY STANDARDS | Medical : ANSI/AAMI ES60601-1, TUV BS EN/EN60601-1, IEC60601-1, EAC TP TC 004 approved Commercial : Also design refer to UL60950-1 | |||
| WITHSTAND VOLTAGE | 4000VAC between input and output 2000VAC between input and F.G. 1500VAC between output and F.G. |
||||
| ISOLATION RESISTANCE | >100M Ohms for I/P-O/P, I/P-FG, O/P-FG by using 500VDC test voltage | ||||
| OTHERS | MTBF | 1679.6K hrs min. Telcordia SR-332 (Bellcore) ; 213.8K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 177.8x107.2x35.5mm or 7"x4.22"x1.4" | ||||
| PACKING | 0.66Kg; 24pcs/16.8Kg/1.17CUFT | ||||
Meanwell MPQ-200F Features
l Universal AC input/ Full range
l 3 years warranty
l Low leakage current <150uA
l Built-in remote ON-OFF control
l Built-in remote sense function
l Fixed switching frequency at 100KHz
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Free air convection for 140W and forced air convection for 200W
l Medical safety approved (2 X MOPP between primary to secondary) With power good and fail signal output
Meanwell MPQ-200D Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine
Meanwell MPQ-200F Mechanical Diagram
