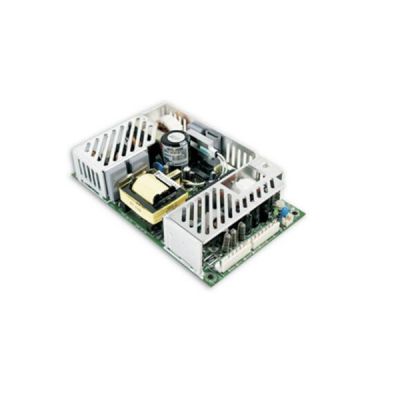

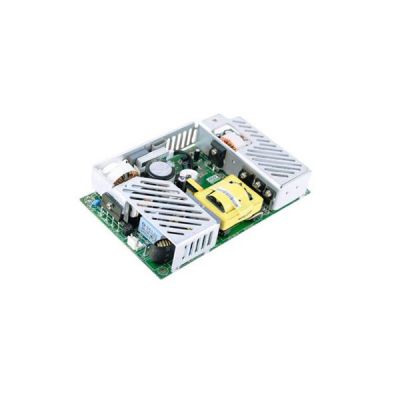

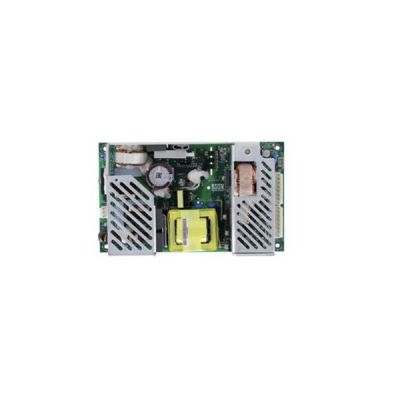

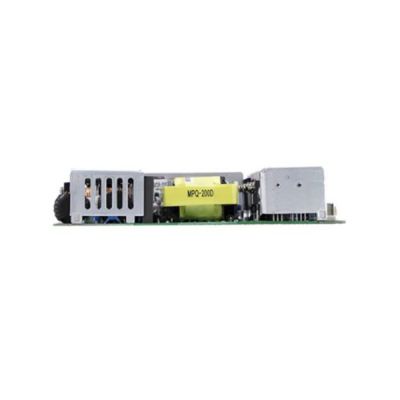

MPQ-200B
120.14
Details
Meanwell MPQ-200B is a 1~4 Output Medical Type power supply with 5V12V5V-12V15A7A2A2A3A12A15A18A12A5.3A7A8.4A 15A1A2A2.4A18A1A2A2.4A.The product accepts 90~264VAC input with Quad output voltages with high power density. In Addition, MPQ-200B outstands the working efficiency up to 81%, extremely low no load power consumption and extremely low leakage current down below 150uA. Therefore, it can be used for ClassⅠ(with FG) system design. As per free air convection for 140W and forced air convection for 200W. Meanwell MPQ-200B complies with the international medical regulations (2*MOPP) and EMC BS EN/EN55011. Moreover, it is equipped with Built-in remote ON-OFF control Built-in remote sense function and Fixed switching frequency at 100KHz. Apart from them, the item offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Thanks to its long lifespan, high reliability, excellent quality, Meanwell MPQ-200B is a very perfectly fitting solution for all kinds of BF rated "patient contact" medical system equipment.
Meanwell MPQ-200B Specifications
| Model | MPQ-200B | ||||
| OUTPUT | OUTPUTVOLTAGE | 5V | 12V | 5V | -12V |
| RATED CURRENT | 15A | 7A | 2A | 2A | |
| MINIMUM LOAD | 3A | 12A | 15A | 18A | |
| CONVECTION max. | 12A | 5.3A | 7A | 8.4A | |
| WITH FAN (25CFM) | 15A | 1A | 2A | 2.4A | |
| PEAK LOAD WITH 25CFM FAN | 18A | 1A | 2A | 2.4A | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 80mVp-p | 80mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | ±8.0% | ±5.0% | ±5.0% | |
| LINE REGULATION | ±0.5% | ±1.0% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | ±5.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 1000ms, 20ms / 230VAC at full load 3000ms, 20ms / 115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 16ms / 230VAC at full load 16ms / 115VAC at full load | ||||
| EFFICIENCY (Typ.) | 78.00% | ||||
| INRUSH CURRENT(Typ.) | Inrush current is less than 25A at 115VAC orless than 40A at 230VAC under cold start conditions. Limiting provided by internal thermistors. |
||||
| LEAKAGE CURRENT | Earth leakage current < 150 A/264VAC , Touch current < 100 A/264VAC | ||||
| PROTECTION | OVERL OAD | Fully protected against short circuit and output overload. The hiccup type protection will be activated at 120~160% rated load and recovers automatically after fault condition is removed. |
|||
| OVER VOLTAGE | Provided on output channel 1 only at 115%~135% rated output voltage. Output will be shut down when this protection is activated | ||||
| OVER TEMPERATURE PROTECTION | When the temperature of TSW1 which detect on heat sink of power transistor reaches 95℃, This protection is activated. Then output will be shut down and recovers automatically after temperature goes down. |
||||
| ENVIRONMENT | WORKING TEMP. | Whole series can operate from -20~70℃. Please refer to the derating curves | |||
| WORKING HUMIDITY | 20~90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40~+85℃, 10~90% RH | ||||
| TEMP. COEFFICIENT | ±0.04%/℃ on all outputs at full load between 0~50℃ of ambient temperature | ||||
| VIBRATION | 2G of acceleration, vibrating frequency adjust from 10Hz ~500Hz within a10-minute cycle. 6 testing cycles (60 minutes) each along X, Y, Z axes. | ||||
| SAFETY & EMC | SAFETY STANDARDS | Medical : ANSI/AAMI ES60601-1, TUV BS EN/EN60601-1, IEC60601-1, EAC TP TC 004 approved Commercial : Also design refer to UL60950-1 | |||
| WITHSTAND VOLTAGE | 4000VAC between input and output 2000VAC between input and F.G. 1500VAC between output and F.G. |
||||
| ISOLATION RESISTANCE | >100M Ohms for I/P-O/P, I/P-FG, O/P-FG by using 500VDC test voltage | ||||
| OTHERS | MTBF | 1679.6K hrs min. Telcordia SR-332 (Bellcore) ; 213.8K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 177.8x107.2x35.5mm or 7"x4.22"x1.4" | ||||
| PACKING | 0.66Kg; 24pcs/16.8Kg/1.17CUFT | ||||
Meanwell MPQ-200B Features
l 3 years warranty
l Universal AC input/ Full range
l Low leakage current <150uA
l Built-in remote ON-OFF control
l Built-in remote sense function
l Fixed switching frequency at 100KHz
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Free air convection for 140W and forced air convection for 200W
l Medical safety approved (2 X MOPP between primary to secondary) With power good and fail signal output
Meanwell MPQ-200B Applications
l Oral irrigator
l Hemodialysis machine
l Medical monitors
l Sleep apnea devices
l Pumps machine
Meanwell MPQ-200B Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
