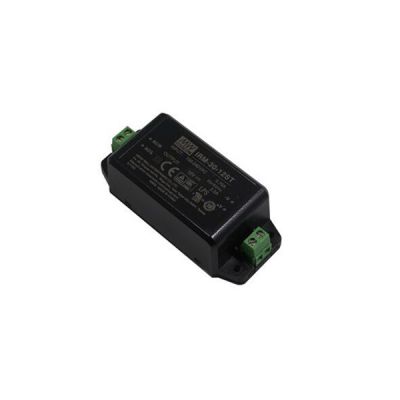

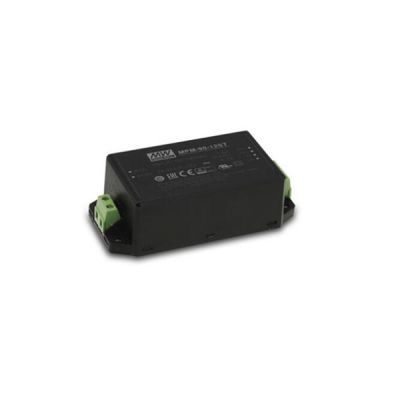

Meanwell MPM-90 Series is a 90W high density and small size (87x52x29. 5mm) AC/DC PCB-mount module type medical grade power supply. The entire features the operation for 80~264VAC, low no load power consumption less than O.1W, and high efficiency up to 93%. At the same time, MPM-90 is equipped with Class II (no FG) double insulation, outstanding dissipation,2~ 5G anti-vibration by model, high EMC performance, 4KVAC isolation, etc. This allows to observe IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2 X MOPP level. In addition to PCB mounting style, MPM-90 series also offers the screw terminal style model (ST). PCB mounting style model (Blank) meets the anti-vibration demand up to 2G and screw terminal style model (ST) meets the anti-vibration demand up to 5G. Considering its longevity, high reliability, excellent quality, Meanwell MPM-90 Series serves as a very suitable solution for BF (patient contact) type medical device or relevant equipment.

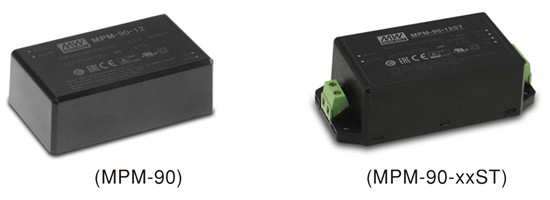

Meanwell MPM-90 Series Encoding
| MPM | Series Name |
| 90 | Rated Wattage |
| 12 | Output Voltage |
| ST | Blank: PCB mounting Style |
| ST: Screw Terminal Style |
Meanwell MPM-90 Series Model Specifications
| Model | MPM-90-12 | MPM-90-15 | MPM-90-24 | MPM-90-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 48V | |
| CURRENT | Peak (10Sec.) | 7.37A | 6.23A | 4.13A | 2.07A | |
| Convection | 6.7A | 5.67A | 3.75A | 1.88A | ||
| RATED POWER | Peak (10Sec.) | 88.4A | 93.5A | 99W | 99.2W | |
| Convection | 80.4W | 85.05W | 90W | 90.2W | ||
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | 200mVp-p | 240mVp-p | ||
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 30ms/230VAC 10ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 92.00% | 92.50% | 93.00% | 93.00% | ||
| AC CURRENT (Typ.) | 1.9A/115VAC 1.1A/230VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 65A/230VAC | |||||
| LEAKAGE CURRENT | Touch current <100μ A/264VAC | |||||
| PROTECTION | OVERL OAD | 115% ~ 160% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 12.6-16.2V | 15.8-20.3V | 25.2-32.4V | 50.4-64.8V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +80℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| STORAGE TEMP. | -40 ~ +85℃ | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |||||
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max | |||||
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| OPERATING ALTITUDE | 4000 meters / OVCⅡ | |||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to BS EN/EN60335-1(by request) | ||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55011 (CISPR11) | Class B | ||||
| Radiated | BS EN/EN55011 (CISPR11) | Class B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | ||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | ||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||
| OTHERS | MTBF | 4548.9K hrs min. Telcordia SR-332 (Bellcore) ; 570.5K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H) | |||||
| PACKING | PCB mounting style : 0.197Kg;60pcs/12.8Kg/0.94CUFT Screw terminal style :0.219Kg;50pcs/12Kg/0.56CUFT | |||||

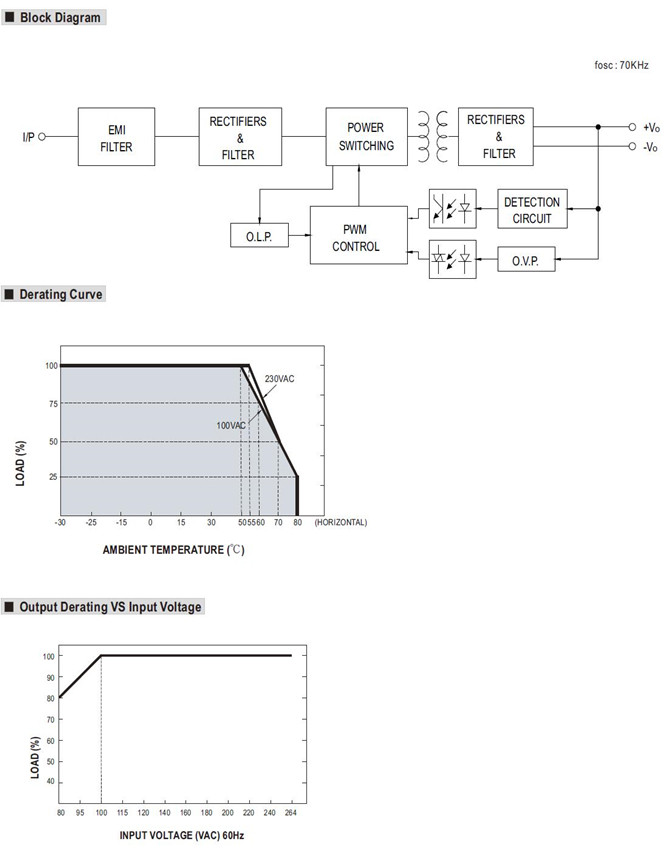

Meanwell MPM-90 Series Features
l 3.43"x2.05" compact size
l PCB, chassis or screw terminal mounting version
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/E N60601-1
l Suitable for BF application with appropriate system consideration
l No load power consumption<0.1W
l Extremely low leakage current
l Wide operating temp. range -30 ~ +80℃
l EMI Class B without additional components
l Isolation Class Ⅱ
l Protections: Short circuit/Overload/Over voltage
l No minimum load required
l Operating altitude up to 4000 meters
l 100W peak (10 sec.)
l 3 years warranty
Meanwell MPM-90 Series Applications
l Portable medical device
l Mobile clinical workstation
l Medical computer monitor
l Medical examination instrument

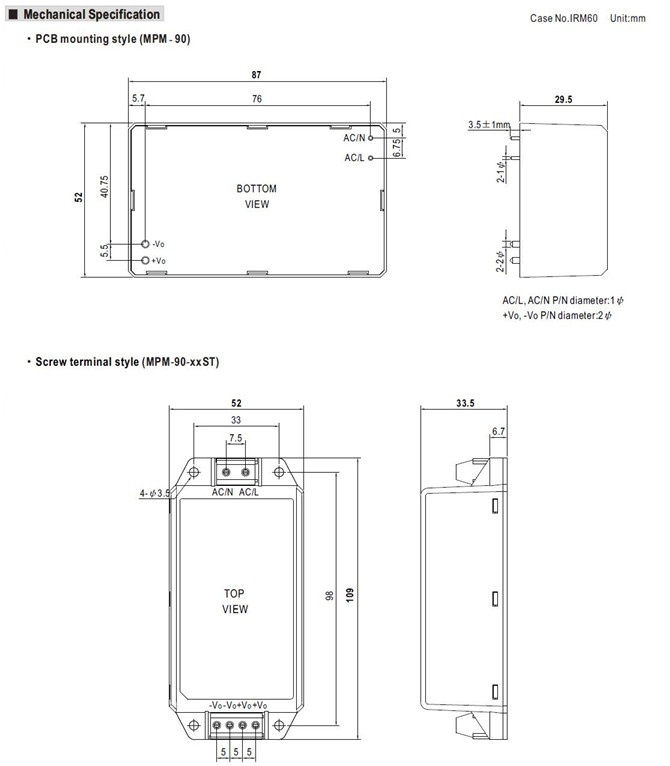

Meanwell MPM-90 Series Mechanical Diagram
