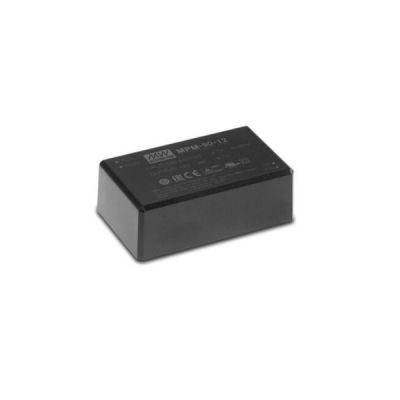

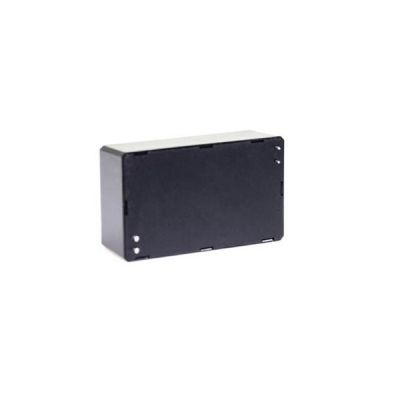

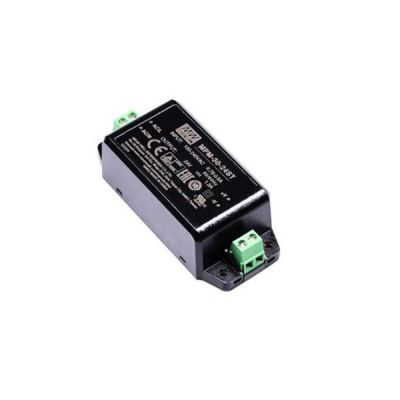

Meanwell MPM-90-24 is a 90W AC/DC PCB-mount module type medical grade power supply with 24V4.13A3.75A99W90W200mVp-p. The item is designed in high density and small size, and also features the operation for 80~264VAC, low no load power consumption less than 0.1W, and high efficiency up to 93%. Furthermore, MPM-90-24 is provided with Class II (no FG) double insulation, outstanding dissipation,2~ 5G anti-vibration by model, high EMC performance, 4KVAC isolation, and the like. This allows to satisfy IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2 X MOPP level. In addition to the PCB mounting style, MPM-90-24 has the screw terminal style model (ST). PCB mounting style model (Blank) meets the anti-vibration demand up to 2G and screw terminal style model (ST) meets the anti-vibration demand up to 5G. In light of its longevity, high reliability, excellent quality, Meanwell MPM-90-24 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MPM-90-24 Encoding
| MPM | Series Name |
| 90 | Rated Wattage |
| 24 | Output Voltage |
| ST | Blank: PCB mounting Style |
| ST: Screw Terminal Style |
Meanwell MPM-90-24 Specifications
| Model | MPM-90-24 | ||
| OUTPUT | DC VOLTAGE | 24V | |
| CURRENT | Peak (10Sec.) | 4.13A | |
| Convection | 3.75A | ||
| RATED POWER | Peak (10Sec.) | 99W | |
| Convection | 90W | ||
| RIPPLE & NOISE (max.) | 200mVp-p | ||
| VOLTAGE TOL ERANCE | ±2.0% | ||
| LINE REGULATION | ±0.5% | ||
| LOAD REGUL .ATION | ±0.5% | ||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | ||
| HOLD UP TIME (Typ.) | 30ms/230VAC 10ms/115VAC at full load | ||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 93.00% | ||
| AC CURRENT (Typ.) | 1.9A/115VAC 1.1A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 65A/230VAC | ||
| LEAKAGE CURRENT | Touch current <100μ A/264VAC | ||
| PROTECTION | OVERL OAD | 115% ~ 160% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 25.2-32.4V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +80℃(Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||
| STORAGE TEMP. | -40 ~ +85℃ | ||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | ||
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max | ||
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| OPERATING ALTITUDE | 4000 meters / OVCⅡ | ||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to BS EN/EN60335-1(by request) | |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||
| OTHERS | MTBF | 4548.9K hrs min. Telcordia SR-332 (Bellcore) ; 570.5K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H) | ||
| PACKING | PCB mounting style : 0.197Kg;60pcs/12.8Kg/0.94CUFT Screw terminal style :0.219Kg;50pcs/12Kg/0.56CUFT | ||
Meanwell MPM-90-24 Features
l Isolation Class Ⅱ
l 100W peak (10 sec.)
l 3 years warranty
l 3.43"x2.05" compact size
l No minimum load required
l Operating altitude up to 4000 meters
l No load power consumption<0.1W
l Extremely low leakage current
l Wide operating temp. range -30 ~ +80℃
l EMI Class B without additional components
l PCB, chassis or screw terminal mounting version
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/E N60601-1
Meanwell MPM-90-24 Applications
l Portable medical device
l Medical computer monitor
l Mobile clinical workstation
l Medical examination instrument
Meanwell MPM-90-24 Mechanical Diagram
