Meanwell MPM-65 Series is a 65W AC/DC PCB-mount type medical grade power supply. The entire series is designed in high density and small size (87x52x29.5mm). Additionally, it features the operation for 80~ 264V AC, low no load power consumption less than 0.1W, and high efficiency up to 93%. At the same time, they highlight with Class II (no FG) double insulation, outstanding dissipation, 2~ 5G anti-vibration by model, high EMC performance, 4KV AC isolation, etc. therefore, it is able to observe IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2 x MOPP level. Considering its longevity, high reliability, excellent quality, Meanwell MPM-65 Series serves as a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MPM-65 Series Encoding
| MPM | Series Name |
| 65 | Rated Wattage |
| 5 | Output Voltage |
| ST | Blank: PCB mounting Style |
| ST: Screw Terminal Style |
Meanwell MPM-65 Series Model Specifications

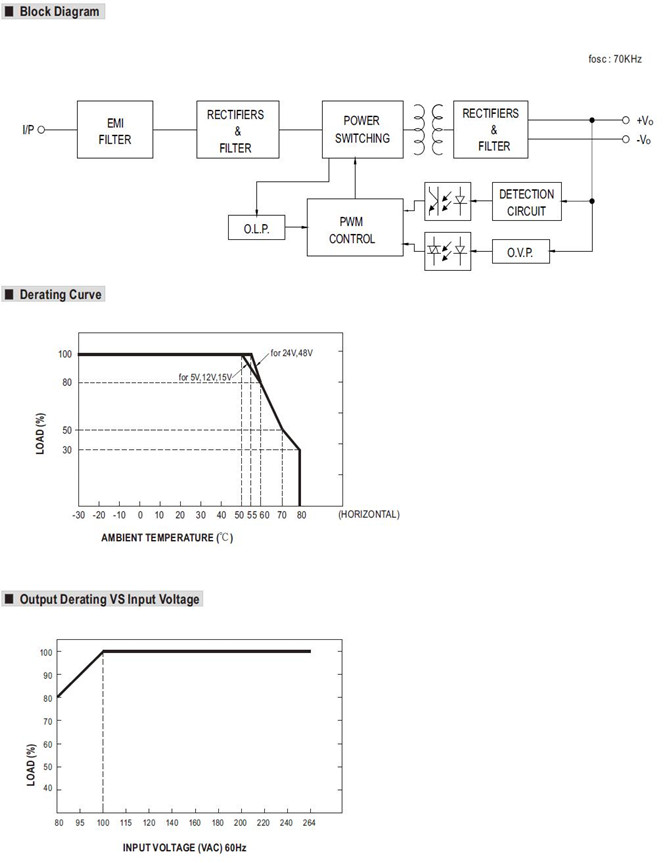

| Model | MPM-65-5 | MPM-65-12 | MPM-65-15 | MPM-65-24 | MPM-65-48 | ||
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 48V | |
| CURRENT | Peak (10Sec.) | 11A | 5.96A | 4.77A | 2.98A | 1.49A | |
| Convection | 10A | 5.42A | 4.33A | 2.71A | 1.36A | ||
| RATED POWER | Peak (10Sec.) | 55W | 71.5W | 71.6W | 71.5W | 71.5W | |
| Convection | 50W | 65W | 65W | 65W | 65.3W | ||
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | 240mVp-p | ||
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ||
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ||
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ||
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 12ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC 113 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 86.50% | 92.50% | 92.50% | 93.00% | 92.00% | ||
| AC CURRENT (Typ.) | 1.5A/115VAC 1A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 65A/230VAC | ||||||
| LEAKAGE CURRENT | Touch current <100μ A/264VAC | ||||||
| PROTECTION | OVERL OAD | 115% ~ 135% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 5.3 ~ 7.2V | 12.6-16.2V | 15.8-20.3V | 25.2-32.4V | 50.4-64.8V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +80℃(Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| STORAGE TEMP. | -40 ~ +85℃ | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | ||||||
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max | ||||||
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| OPERATING ALTITUDE | 4000 meters / OVCⅡ | ||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to BS EN/EN60335-1(by request) |
|||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55011 (CISPR11) | Class B | |||||
| Radiated | BS EN/EN55011 (CISPR11) | Class B | |||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | ------ | |||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | |||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||||
| OTHERS | MTBF | 5087.8K hrs min. Telcordia SR-332 (Bellcore) ; 563.4K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | PCB mounting style : 87*52*29.5mm (L*W*H) Screw terminal style : 109*52*33.5mm (L*W*H) | ||||||
| PACKING | PCB mounting style : 0.191Kg;60pcs/12.5Kg/0.94CUFT Screw terminal style :0.216Kg;50pcs/11.8Kg/0.56CUFT | ||||||
Meanwell MPM-65 Series Features
l 3.43"x2.05" compact size

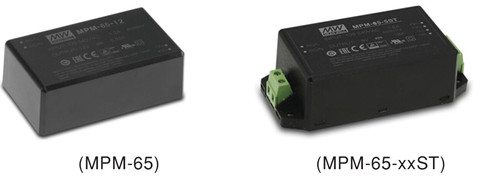

l PCB chassis or screw terminal mounting version
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l No load power consumption<0.1W
l Extremely low leakage current
l Wide operating temp. range -30 ~ +80℃
l EMI Class B without additional components
l Isolation Class Ⅱ
l Protections: Short circuit/Overload/Over voltage
l No minimum load required
l Operating altitude up to 4000 meters
l 71 W peak (10 sec.)
l 3 years warranty
Meanwell MPM-65 Series Applications
l Portable medical device
l Mobile clinical workstation
l Medical computer monitor
l Medical examination instrument

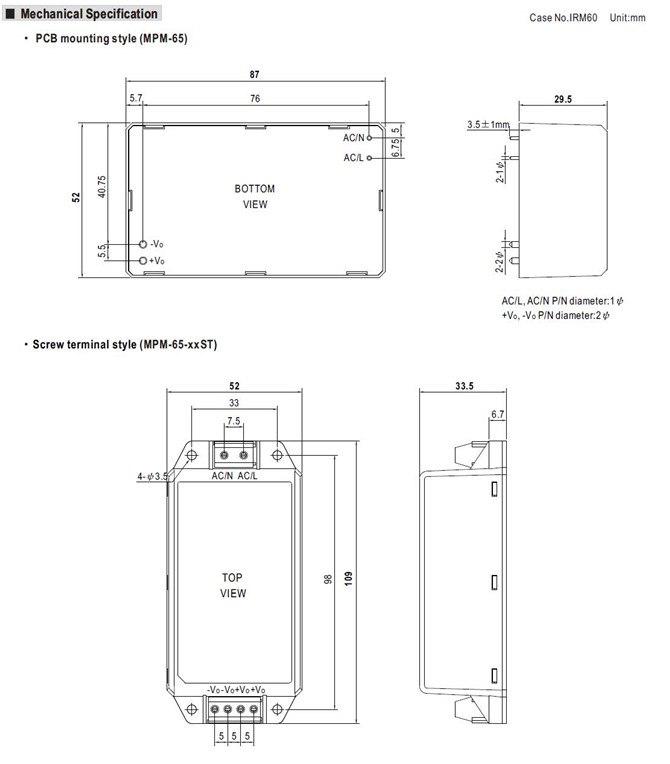

Meanwell MPM-65 Series Mechanical Diagram
