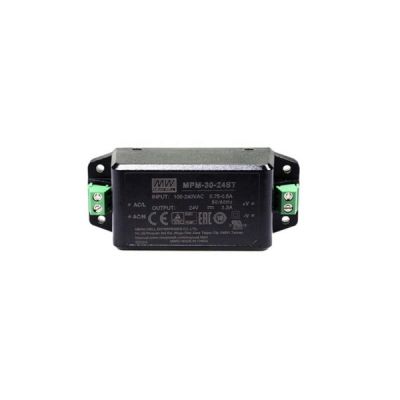

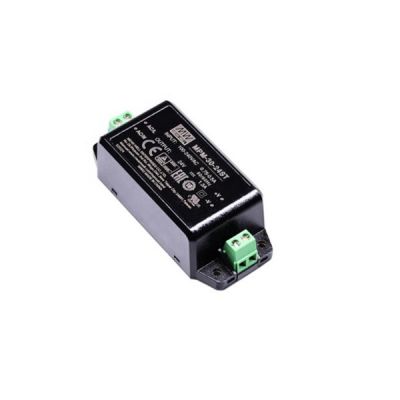

Meanwell MPM-30 Series is a 30W high density and small size (69.5x39x24mm) AC/DC module type medical power supply offered in pin type. The entire series features the operation for 80~ 264V AC, low no load power consumption less than 0.075W, high efficiency up to 91%. At the same time, MPM-30 is equipped with the interior potting, high EMC performance, 4KVAC isolation, etc. this allows to observes IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2xMOPP level. Apart from them, the series provides Class II (no FG) double insulation, outstanding dissipation and ultra-low leakage current. In addition to PCB mounting style, MPM-30 series also offers the screw terminal style model (ST). PCB mounting style model ( Blank) meets the anti-vibration demand up to 2G and screw terminal style model (ST) meets the anti-vibration demand up to 5G. Considering its longevity, high reliability, excellent quality, Meanwell MPM-30 Series serves as a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MPM-30 Series Encoding
| MPM | Series Name |
| 30 | Rated Wattage |
| 5 | Output Voltage |
| ST | Blank: PCB mounting Style |
| ST: Screw Terminal Style |
Meanwell MPM-30 Series Model Specifications
| Model | MPM-30-3.3 | MPM-30-5 | MPM-30-12 | MPM-30-15 | MPM-30-24 | MPM-30-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 6A | 6A | 2.5A | 2A | 1.3A | 0.63A | |
| CURRENT RANGE | 0-6A | 0-6A | 0-2.5A | 0-2A | 0-1.3A | 0-0.63A | |
| PEAK CURRENT | 7.8A | 6.9A | 2.9A | 2.3A | 1.5A | 0.73A | |
| RATED POWER | 19.8W | 30W | 30W | 30W | 31.2W | 30.2W | |
| PEAK LOAD(10sec.) | 25.7W | 34.5W | 34.8W | 34.5W | 36W | 35W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 120mVp-p | 120mVp-p | 200mVp-p | 200mVp- | |
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | ±1.0% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 40ms/230VAC 12ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 82.50% | 86.50% | 90.00% | 89.00% | 90.00% | 91.00% | |
| AC CURRENT (Typ.) | 0.75A/115VAC 0.5A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 45A/230VAC | ||||||
| LEAKAGE CURRENT | Touch current <80μA/264VAC | ||||||
| PROTECTION | OVERL OAD | 115% ~ 165% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 3.5-4.5V | 5.3-6.8V | 13.6-16.2V | 15.8-20.3V | 25.2-32.4V | 50.4-64V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃(Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | ||||||
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | ||||||
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| LEAD TEMPERATURE | 260±5℃,5s (max.) | ||||||
| OPERATING ALTITUDE | PCB mounting: 5000 meters Screw terminal style: 3000 meters | ||||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, EN60601-1, , UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; rd BS EN/ EAC TP TC 004 Design refer to BS EN/EN60335-1(by request) | |||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55011 (CISPR11) | Class B | |||||
| Radiated | BS EN/EN55011 (CISPR11) | Class B | |||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | |||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | |||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | ||||||
| Parameter | Standard | Test Level | |||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | |||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
|||||
| EFT bursts | BS EN/EN61000-4-4 | Level 3, 2KV | |||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | |||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | |||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | |||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
|||||
| OTHERS | MTBF | 779Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | PCB mounting style:69.5*39*24mm (L*W*H) or 2.73″*1.53″*0.94″ inch Screw terminal style:91*39.5*28.5mm (L*W*H) or 3.58″*1.55″*1.12″ inch | ||||||
| PACKING | PCB mounting style:0.102Kg;144pcs/15.7Kg/0.97CUFT Screw terminal style :0.12Kg;120pcs/14.9Kg/0.74CUFT | ||||||
Meanwell MPM-30 Series Features
l 2.73"x1.53" compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l No load power consumption <0.075W
l Extremely low leakage current
l Wide operating temp range -40 ~ +85℃
l EMI class B for class Ⅱ configuration
l Protections: Short circuit/Overload/Over voltage
l No minimum load required
l 3 years warranty
Meanwell MPM-30 Series Applications
l Portable medical device
l Mobile clinical workstation
l Medical computer monitor
l Medical examination instrument

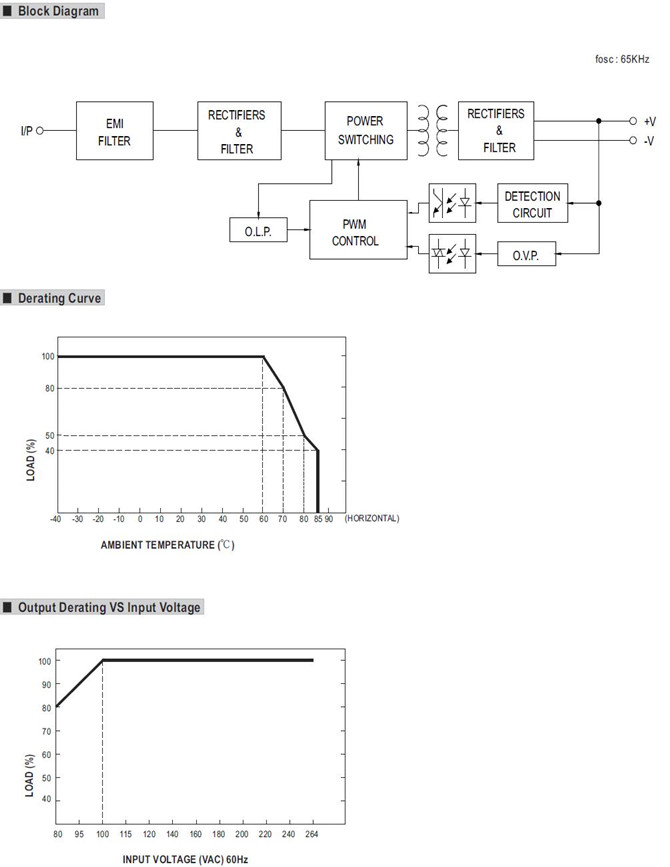

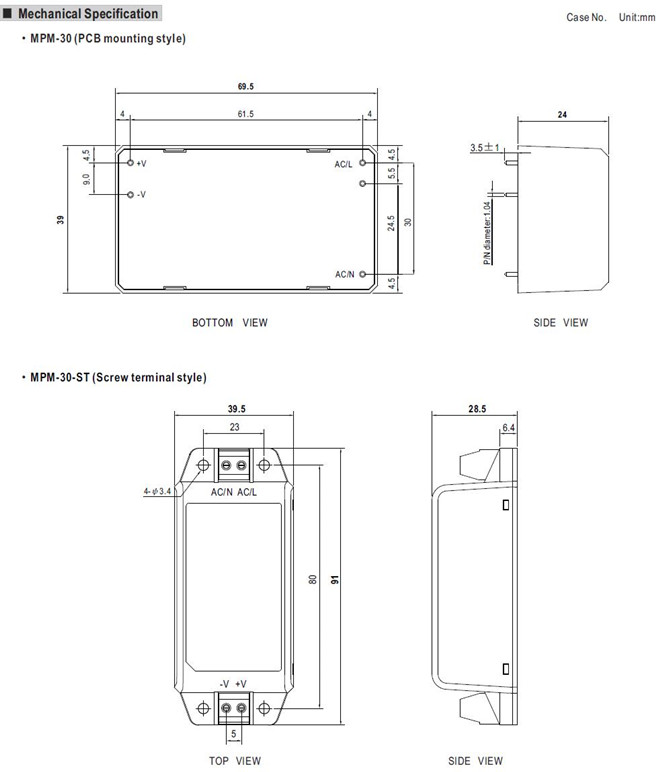

Meanwell MPM-30 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
