MPM-30-3.3
12.14
Details

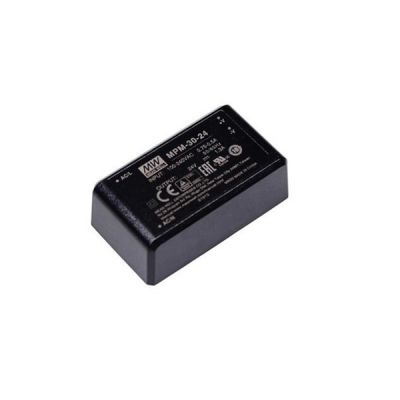

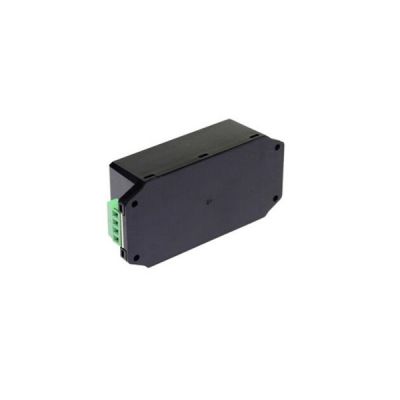

Meanwell MPM-30-3.3 is a 30W AC/DC module type medical power supply with 3.3V6A0-6A7.8A19.8W25.7W80mVp-p. The product is designed in high density and small size (69.5x39x24mm) in pin type. At the same time, it highlights the operation for 80~ 264V AC, low no load power consumption >0.075W, and high efficiency up to 91%. Additionally, MPM-30-3.3 has the interior potting, high EMC performance, 4KVAC isolation, etc. this permits to observes IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2xMOPP level. Besides them, the item provides Class II (no FG) double insulation, outstanding dissipation and ultra-low leakage current. Except for PCB mounting style, MP M-30-3.3 also offers the screw terminal style model (ST). PCB mounting style model ( Blank) meets the anti-vibration demand up to 2G and screw terminal style model (ST) meets the anti-vibration demand up to 5G. Thanks to its longevity, high reliability, excellent quality, Meanwell MPM-30-3.3 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MPM-30-3.3 Encoding
| MPM | Series Name |
| 30 | Rated Wattage |
| 3.3 | Output Voltage |

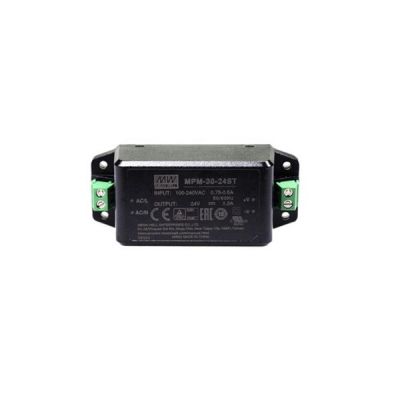

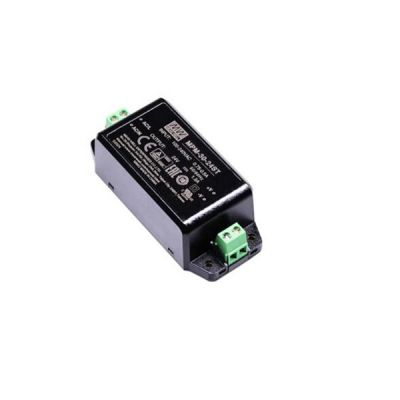

| ST | Blank: PCB mounting Style |
| ST: Screw Terminal Style |
Meanwell MPM-30-3.3 Specifications
| Model | MPM-30-3.3 | |
| OUTPUT | DC VOLTAGE | 3.3V |
| RATED CURRENT | 6A | |
| CURRENT RANGE | 0-6A | |
| PEAK CURRENT | 7.8A | |
| RATED POWER | 19.8W | |
| PEAK LOAD(10sec.) | 25.7W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 82.50% | |
| AC CURRENT (Typ.) | 0.75A/115VAC 0.5A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 45A/230VAC | |
| LEAKAGE CURRENT | Touch current <80μA/264VAC | |
| PROTECTION | OVERL OAD | 115% ~ 165% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 3.5-4.5V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |
| VIBRATION | Blank:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| ST:10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |
| OPERATING ALTITUDE | PCB mounting: 5000 meters Screw terminal style: 3000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, EN60601-1, , UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved; rd BS EN/ EAC TP TC 004 Design refer to BS EN/EN60335-1(by request) |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 779Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | PCB mounting style:69.5*39*24mm (L*W*H) or 2.73″*1.53″*0.94″ inch Screw terminal style:91*39.5*28.5mm (L*W*H) or 3.58″*1.55″*1.12″ inch | |
| PACKING | PCB mounting style:0.102Kg;144pcs/15.7Kg/0.97CUFT Screw terminal style :0.12Kg;120pcs/14.9Kg/0.74CUFT | |
Meanwell MPM-30-3.3 Features
l 2.73"x1.53" compact size
l 3 years warranty
l Suitable for BF application with appropriate system consideration
l No load power consumption <0.075W
l Extremely low leakage current
l Wide operating temp range -40 ~ +85℃
l EMI class B for class Ⅱ configuration
l Protections: Short circuit/Overload/Over voltage
l No minimum load required
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
Meanwell MPM-30-3.3 Applications
l Portable medical device
l Medical computer monitor
l Mobile clinical workstation
l Medical examination instrument
Meanwell MPM-30-3.3 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
