MPM-15-3.3
8.92

MPM-15-3.3

$8.92

Meanwell 15W High Reliable Green Medical Encapsulated Type with 3.3V3.5A0-3.5A3.85A11.6W12.7W150mVp-p±2.0%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell MPM-15-3.3
Brand Meanwell
Details

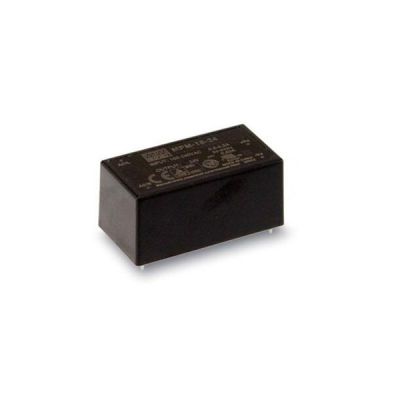

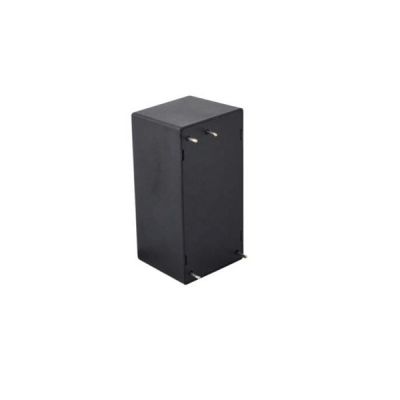

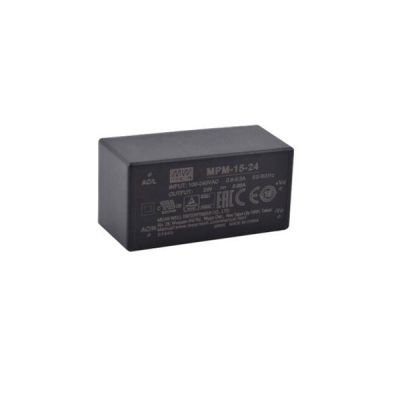

Meanwell MPM- 15-3.3 is a 15W AC/DC module type medical grade power supply with 3.3V3.5A0-3.5A3.85A11.6W12.7W150mVp-p. The product is designed in high density and small size (52 .4*27.2*24mm) in pin type, and it also outstands with the operation for 80~ 264VAC, low no load power consumption <0.1W, and high efficiency reaching up to 87%. Additionally, MPM-15-3.3 has the interior potting, 2G anti-vibration, high EMC performance, 4KV AC isolation, and so on, allowing to observe IEC/BS EN/EN6O6O1-1 and ANSI/AAMI ES60601-1version three with 2xMOPP level. Moreover, the unit provides Class II (no FG) double insulation, outstanding dissipation and ultra-low leakage current. Due to its longevity, high reliability, excellent quality, Meanwell MPM-15-3.3 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.

Meanwell MPM- 15-3.3

Meanwell MPM-15-3.3 Specifications

Model MPM-15-3.3
OUTPUT DC VOLTAGE 3.3V
RATED CURRENT 3.5A
CURRENT RANGE 0-3.5A
PEAK CURRENT 3.85A
RATED POWER 11.6W
PEAK LOAD(10sec.) 12.7W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOL ERANCE  ±2.0%
LINE REGULATION ±0.5%
LOAD REGUL .ATION ±0.5%
SETUP, RISE TIME 1500ms, 30ms/230VAC 1500ms, 30ms/115VAC at full load
HOLD UP TIME (Typ.) 40ms/230VAC 10ms/115VAC at full load
INPUT VOLTAGE RANGE 80~264VAC 113V~370VDC
FREQUENCY RANGE 47 ~ 440Hz
EFFICIENCY (Typ.) 83.50%
AC CURRENT (Typ.) 0.6A/115VAC 0.3A/230VAC
INRUSH CURRENT(Typ.) COLD START 20A/115VAC 45A/230VAC
LEAKAGE CURRENT Touch current <80μA/264VAC
PROTECTION OVERL OAD 110% ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 3.8-5V
Protection type : Shut off o/p voltage, clamping by zener diode
OVER TEMPERATURE Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. -40 ~ +85(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
SOLDERING TEMPERATURE 260±5/10sec.max.
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes
LEAD TEMPERATURE 260±5,5s (max.)
OPERATING ALTITUDE 5000 meters
SAFETY & EMC SAFETY STANDARDS Note.6,9 IEC60601-1, BS EN/EN60601-1, IEC60335-1, BS EN/EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved rd
ISOLATION LEVEL Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE I/P-O/P:4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC IMMUNITY BS EN/EN60601-1-2
OTHERS MTBF 1210Khrs min. MIL-HDBK-217F (25)
DIMENSION 52.4*27.2*24mm (L*W*H) or 2.06″*1.07″*0.94″ inch
PACKING 0.056Kg; 240pcs/14.4Kg/0.94CUFT

Meanwell MPM-15-3.3 Features

l  2.06"x1.07" compact size

l  No load power consumption<0.1W

l  Extremely low leakage current

l  Wide operating temp. range -40 ~ +85℃

l  EMI class B for class Ⅱ configuration

l  Protections: Short circuit/Overload/Over voltage/Over temperature

l  No minimum load required

l  3 years warranty

l  Medical safety approved (2X MOPP) according to ANS I/AAMI ES60601-1 and IEC/BS EN/EN60601-1

l  Suitable for BF application with appropriate system consideration

Meanwell MPM-15-3.3 Features

Meanwell MPM-15-3.3 Applications

l  Portable medical device

l  Medical computer monitor

l  Mobile clinical workstation

l  Medical examination instrument

Meanwell MPM-15-3.3 Applications

Meanwell MPM-15-3.3 Mechanical Diagram

Meanwell MPM-15-3.3 Mechanical Diagram

Meanwell MPM-15-3.3 Mechanical Diagram
