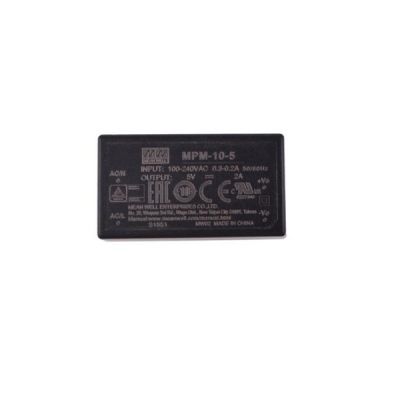

MPM-10
9.03
Details
Meanwell MPM- 10 Series is a 10W AC/DC module type medical grade power supply designed in high density and small size (45.7*25.4*21.5mm) offered in pin type. The entire series features the operation for 80~ 264VAC, low no load power consumption less than 0.075W, and high efficiency up to 84%. Moreover, MPM-10 is equipped with the interior potting, 5G anti-vibration, high EMC performance, 4KV AC isolation, and so on, this allows to observe IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1version three with 2xMOPP level. Apart from them, they provide Class II (no FG) double insulation, outstanding dissipation and ultra-low leakage current. Considering its longevity, high reliability, excellent quality, Meanwell MPM- 10 Series is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MPM-10 Series Encoding
| MPM | Series Name |
| 10 | Rated Wattage |
| 5 | Output Voltage |
Meanwell MPM-10 Series Model Specifications

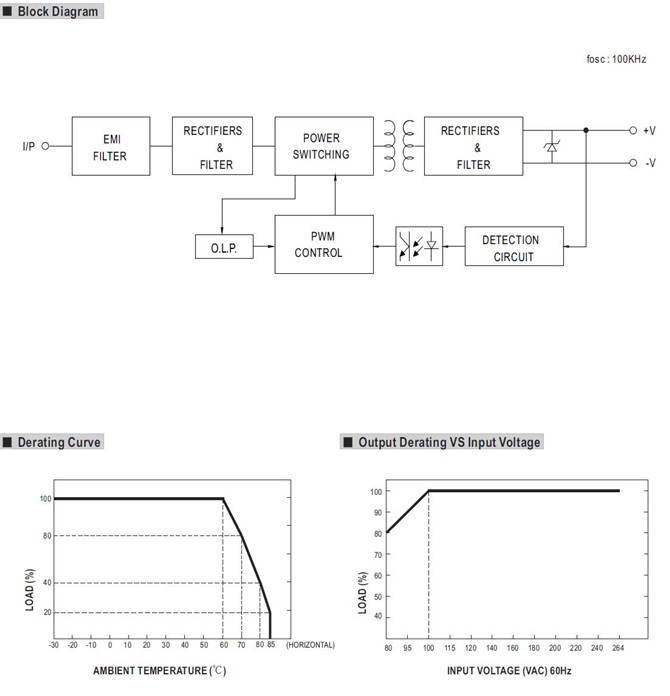

| Model | MPM-10-3.3 | MPM-10-5 | MPM-10-12 | MPM-10-15 | MPM-10-24 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V |
| RATED CURRENT | 2.5A | 2A | 0.85A | 0.67A | 0.42A | |
| CURRENT RANGE | 0-2.5A | 0-2A | 0-0.85A | 0-0.67A | 0-0.42A | |
| PEAK CURRENT | 2.75A | 2.2A | 0.94A | 0.74A | 0.46A | |
| RATED POWER | 8.3W | 10W | 10.2W | 10W | 10W | |
| PEAK LOAD(10sec.) | 9W | 11W | 11.3W | 11.1W | 11W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 100mVp-p | 180mVp-p | 180mVp-p | 2000mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | |
| LINE REGULATION | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 40ms/230VAC 8ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | ||||
| FREQUENCY RANGE | 47 ~ 440Hz | |||||
| EFFICIENCY (Typ.) | 78% | 81% | 83% | 83% | 84% | |
| AC CURRENT (Typ.) | 0.3A/115VAC 0.2A/230VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 45A/230VAC | |||||
| LEAKAGE CURRENT | Touch current <80μA/264VAC | |||||
| PROTECTION | OVERL OAD | 110% ~ 180% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 3.8-5V | 5.8-6.8V | 13.8-16.2V | 17.3-20.3V | 27.6-32.4V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +85℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +100℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| LEAD TEMPERATURE | 260±5℃,5s (max.) | |||||
| OPERATING ALTITUDE | 5000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, BS EN/EN60601-1, , UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3 Edition approved ; rd EAC TP TC 004 Design refer to BS EN/EN60335-1(by request) |
||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% R | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55011 (CISPR11) | Class B | ||||
| Radiated | BS EN/EN55011 (CISPR11) | Class B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | ||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||
| OTHERS | MTBF | 1756.2Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 45.7*25.4*21.5mm (L*W*H) or 1.8*1.0"0.85" inch | |||||
| PACKING | 0.035Kg; 270pcs/10.5Kg/0.94CUFT | |||||
Meanwell MPM-10 Series Features
l 1.8"x1" compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l No load power consumption<0.07 5W
l Extremely low leakage current
l Wide operating temp. range -30 ~ +85℃
l EMI class B for class I configuration
l Protections: Short circuit/Overload/Over voltage/Over temperature
l No minimum load required
l 3 years warranty
Meanwell MPM-10 Series Applications
l Portable medical device
l Mobile clinical workstation
l Medical computer monitor
l Medical examination instrument

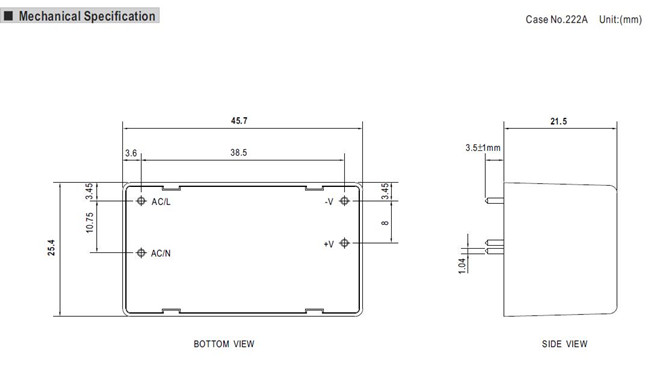

Meanwell MPM-10 Series Mechanical Diagram
