MFM-30-24
22.57
Details

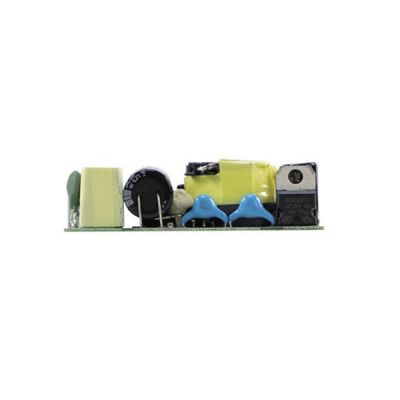

Meanwell MFM-30-24 is a 30W AC/DC on board type medical grade power supply with 24V1.3A0-1.3A1.5A31.2W36W200mVp-p. The unit is designed in high density, small size (65.5*35*23mm)and wide operating temp range (-40~+85℃).. Additionally, it highlights the operation for 80~264VAC, low no load power consumption less than 0.075W, and high efficiency up to 91%. Furthermore, MFM-30-24 is equipped with Class II (no FG) double insulation, excellent dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. so it is capable to meet IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three. Apart from them, MFM-30-24 provides the various protection functions such as Short circuit, Overload and Over voltage. As a result of its longevity, high reliability, excellent quality, Meanwell MFM-30-24 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MFM-30-24 Encoding
| MFM | Series Name |
| 30 | Rated Wattage |
| 24 | Output Voltage |
Meanwell MFM-30-24 Specifications
| Model | MFM-30-24 | |
| OUTPUT | DC VOLTAGE | 24V |
| RATED CURRENT | 1.3A | |
| CURRENT RANGE | 0-1.3A | |
| PEAK CURRENT | 1.5A | |
| RATED POWER | 31.2W | |
| PEAK LOAD(10sec.) | 36W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 0.75A/115VAC 0.5A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 45A/230VAC | |
| LEAKAGE CURRENT | Touch current <80μ A/264VAC | |
| PROTECTION | OVERL OAD | 115% ~ 165% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 25.2-32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |
| VIBRATION | 10 ~ 500Hz, 3G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved; Design refer to BS EN/EN60335-1(by request) |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 6325.8K hrs min. Telcordia SR-332 (Bellcore) ; 778.9K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 65.5*35*23mm (L*W*H) or 2.58″*1.38″*0.90″ inch | |
| PACKING | 0.053Kg; 144pcs/8.6Kg/0.97CUFT | |
Meanwell MFM-30-24 Features
l 3 years warranty
l 2.58"x1.38" compact size
l No minimum load required
l Extremely low leakage current
l EMI class B for class Ⅱconfiguration
l No load power consumption<0.075W
l Wide operating temp. range -40~+85℃
l Protections: Short circuit/Overload/Over voltage
l Suitable for BF application with appropriate system consideration
l Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN606O1-1
Meanwell MFM-30-24 Applications
l Portable medical device
l Mobile clinical workstation
l Medical examination instrument
l Medical computer monitor
Meanwell MFM-30-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
