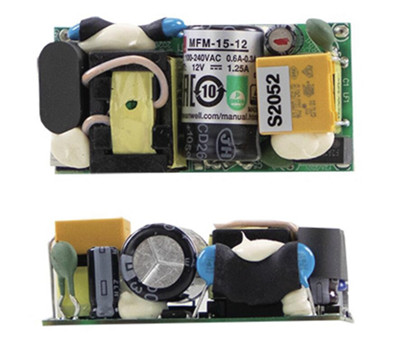

MFM-15
20.06
Details
Meanwell MFM-15 Series is a 15W AC/DC on board type medical grade power. The entire series is designed in high density and small size (49*23.8* 23mm). At the same time, it features the operation for 80~264VAC, low no load power consumption less than 0.1W, and high efficiency up to 87%. What’s more, MFM-15 is equipped with Class II (no FG) double insulation, excellent dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. so it is able to observe IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three with 2xMOPP level. Apart from them, MFM- 15 offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Considering its longevity, high reliability, excellent quality, Meanwell MFM-15 Series is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MFM-15 Series Encoding
| MFM | Series Name |
| 15 | Rated Wattage |
| 5 | Output Voltage |
Meanwell MFM-15 Series Model Specifications
| Model | MFM-15-3.3 | MFM-15-5 | MFM-15-12 | MFM-15-15 | MFM-15-24 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V |
| RATED CURRENT | 3.5A | 3A | 1.25A | 1A | 0.63A | |
| CURRENT RANGE | 0-3.5A | 0-3A | 0-1.25A | 0-1A | 0-0.63A | |
| PEAK CURRENT | 3.85A | 3.3A | 1.38A | 1.1A | 0.69A | |
| RATED POWER | 11.6W | 15W | 15W | 15W | 15.1W | |
| PEAK LOAD(10sec.) | 12.7W | 16.5W | 16.6W | 16.5W | 16.6W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 180mVp-p | 180mVp-p | |
| VOLTAGE TOL ERANCE | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 30ms/230VAC 1500ms, 30ms/115VAC at full | |||||
| HOLD UP TIME (Typ.) | 40ms/230VAC 10ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | ||||
| FREQUENCY RANGE | 47 ~ 440Hz | |||||
| EFFICIENCY (Typ.) | 83.50% | 85.50% | 86.50% | 87.00% | 86.50% | |
| AC CURRENT (Typ.) | 0.6A/115VAC 0.3A/230VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 20A/115VAC 45A/230VAC | |||||
| LEAKAGE CURRENT | Touch current <80μ A/264VAC | |||||
| PROTECTION | OVERL OAD | 110% ~ 150% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 3.8-5V | 5.8-6.8V | 13.8-16.2V | 17.3-20.3V | 27.6-32.4V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| ENVIRONMENT | WORKING TEMP. | -35 ~ +85℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| OPERATING ALTITUDE | 5000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, BS EN/EN60601-1, IEC60335-1, BS EN/EN60335-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved |
||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted emission | BS EN/EN55011 (CISPR11) | Class B | ||||
| Radiated emission | BS EN/EN55011 (CISPR11) | Class B | ||||
| Harmonic current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | ||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||
| OTHERS | MTBF | 7319.8K hrs min. Telcordia SR-332 (Bellcore) ; 1210.1K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 49*23.8*23mm (L*W*H) or 1.93 ″*0.94″*0.91″ inch | |||||
| PACKING | 0.028Kg; 200pcs/6.6Kg/0.94CUFT | |||||
Meanwell MFM-15 Series Features
l 1.93"x0.94" compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l No load power consumption<0.1W
l Extremely low leakage current
l Wide operating temp. range -35 ~ +85℃
l EMI class B for class Ⅱ configuration
l Protections: Short circuit/Overload/Over voltage/Over temperature
l No minimum load required
l 3 years warranty
Meanwell MFM-15 Series Applications
l Portable medical device
l Mobile clinical workstation
l Medical computer monitor
l Medical examination instrument

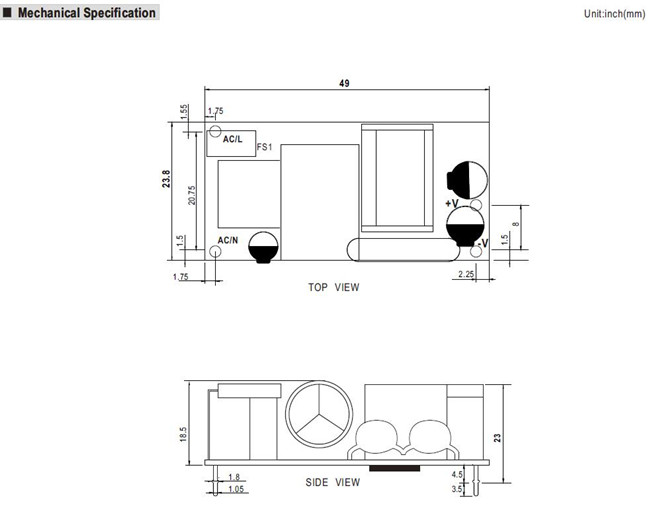

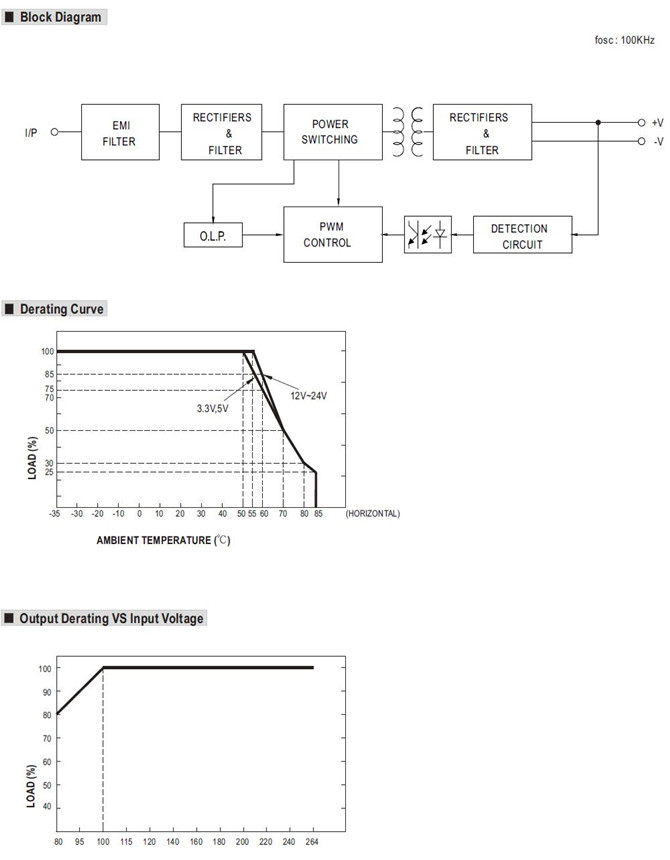

Meanwell MFM-15 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
