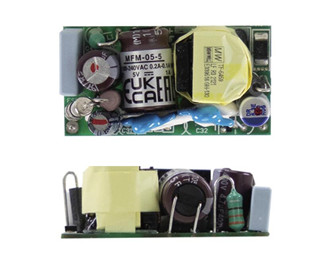

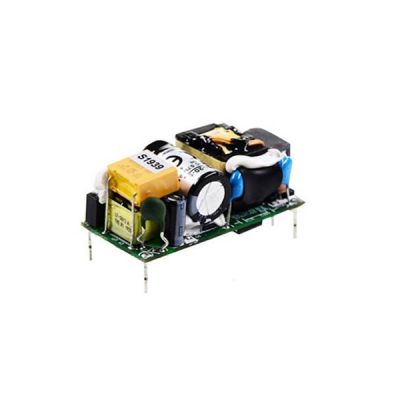

Meanwell MFM- 05 Series is a 5W AC/DC on board type medical grade power. It is designed in high density and small size (42*22.3* 20.5mm). The entire series features the operation for 80~264VAC, low no load power consumption less than 0.075W, high efficiency up to 82%. Moreover, MFM-05 is provided with Class II (no FG) double insulation, outstanding dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. so as to observe IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three with 2xMOPP level. Besides them, the series offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Considering its longevity, high reliability, excellent quality, Meanwell MFM- 05 Series is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MFM-05 Series Encoding
| MFM | Series Name |
| 5 | Rated Wattage |
| 5 | Output Voltage |
Meanwell MFM-05 Series Model Specifications
| Model | MFM-05-3.3 | MFM-05-5 | MFM-05-12 | MFM-05-15 | MFM-05-24 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V |
| RATED CURRENT | 1.25A | 1A | 0.42A | 0.33A | 0.23A | |
| CURRENT RANGE | 0-1.25A | 0-1A | 0-0.42A | 0-0.33A | 0-0.23A | |
| PEAK CURRENT | 1.38A | 1.1A | 0.46A | 0.36A | 0.25A | |
| RATED POWER | 4.1W | 5W | 5W | 5W | 5.5W | |
| PEAK LOAD(10sec.) | 4.6W | 5.5W | 5.5W | 5.4W | 6W | |
| RIPPLE & NOISE (max.) | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 180mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | ±2.5% | ±2.5% | ±2.5% | ±2.5% | |
| LINE REGULATION | ±0.3% | ±0.3% | ±0.3% | ±0.3% | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 40ms/230VAC 12ms/115VAC at full load | |||||
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC | ||||
| FREQUENCY RANGE | 47 ~ 440Hz | |||||
| EFFICIENCY (Typ.) | 74% | 78% | 80% | 81% | 82% | |
| AC CURRENT (Typ.) | 0.2A/115VAC 0.1A/230VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 45A/230VAC | |||||
| LEAKAGE CURRENT | Touch current <80μA/264VAC | |||||
| PROTECTION | OVERL OAD | 110% ~ 180% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 3.8-5V | 5.75-6.8V | 13.8-16.2V | 17.3-20.3V | 27.6-32.4V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃(Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +100℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||||
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| OPERATING ALTITUDE | 5000 meters | |||||
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved ; Design refer to BS EN/EN60335-1(by request) |
||||
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Parameter | Standard | Test Level | |||
| Conducted | BS EN/EN55011 (CISPR11) | Class B | ||||
| Radiated | BS EN/EN55011 (CISPR11) | Class B | ||||
| Harmonic Current | BS EN/EN61000-3-2 | Class A | ||||
| Voltage Flicker | BS EN/EN61000-3-3 | ---- | ||||
| EMC IMMUNITY | BS EN/EN60601-1-2 | |||||
| Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 4, 15KV air ; Level 4, 8KV contact | ||||
| RF field susceptibility | BS EN/EN61000-4-3 | Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz ) |
||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 3, 2KV | ||||
| Surge susceptibility | BS EN/EN61000-4-5 | Level 3, 1KV/Line-Line | ||||
| Conducted susceptibility | BS EN/EN61000-4-6 | Level 3, 10V | ||||
| Magnetic field immunity | BS EN/EN61000-4-8 | Level 4, 30A/m | ||||
| Voltage dip, interruption | BS EN/EN61000-4-11 | 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods |
||||
| OTHERS | MTBF | 9337.3K hrs min. Telcordia SR-332 (Bellcore) ; 1799.5K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 42*22.3*20.5mm (L*W*H) or 1.65"*0.88"0.80" inch | |||||
| PACKING | 0.018Kg; 270pcs/5.8Kg/0.94CUFT | |||||
Meanwell MFM-05 Series Features
l 1.65"x0.88" compact size
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Suitable for BF application with appropriate system consideration
l No load power consumption<0.075W
l Extremely low leakage current
l Wide operating temp. range -40~+85℃
l EMI class B for classⅡconfiguration
l Protections: Short circuit/Overload/Over voltage/Over temperature
l No minimum load required
l Typical lifetime > 52K hours
l 3 years warranty
Meanwell MFM-05 Series Applications
l Portable medical device
l Mobile clinical workstation
l Medical computer monitor
l Medical examination instrument

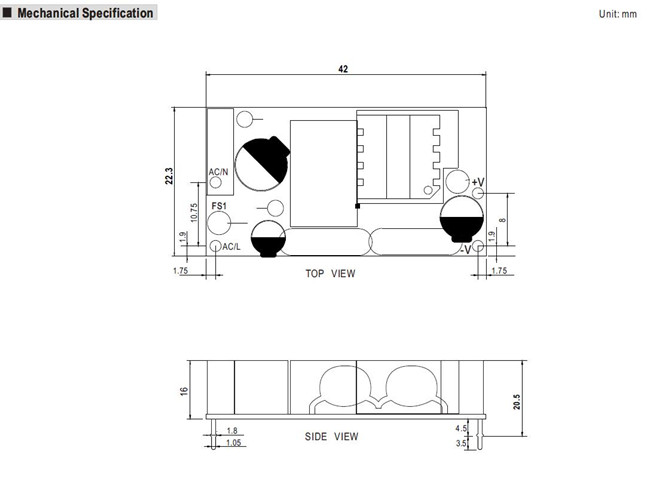

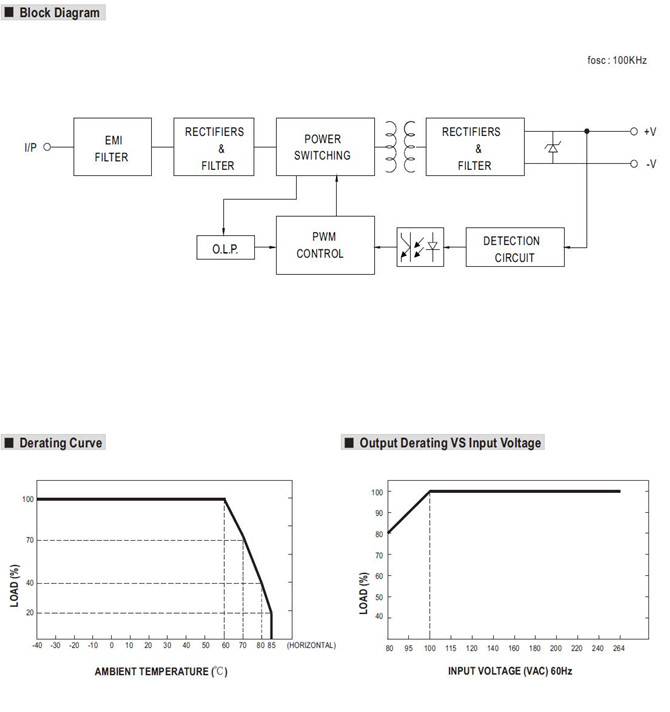

Meanwell MFM-05 Series Mechanical Diagram
