MFM-05-5
12.36
Details

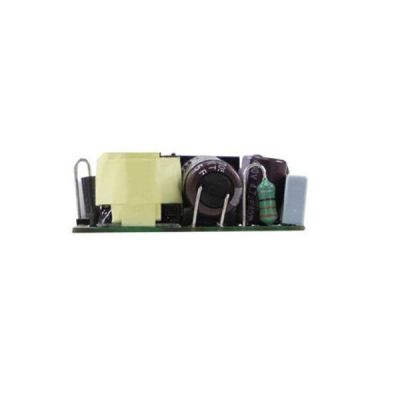

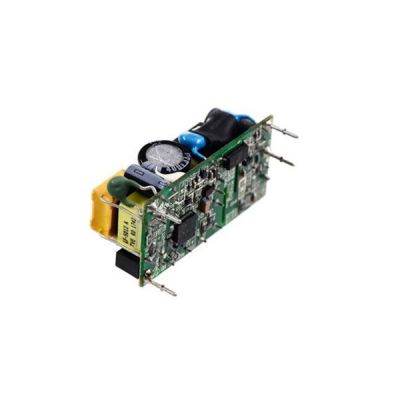

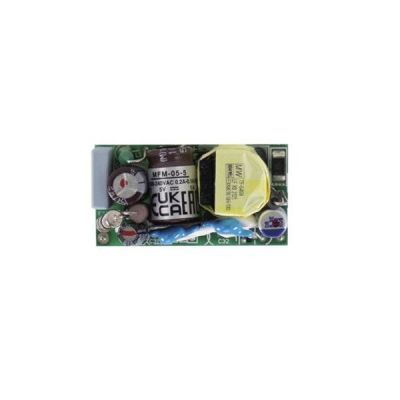

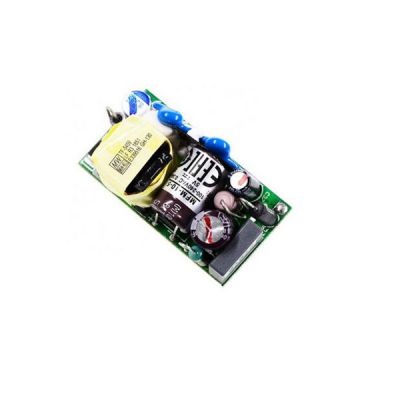

Meanwell MFM-05-5 is a 5W AC/DC on board type medical grade power with 5V1A0-1A1.1A5W5.5W100mVp-p. The item is in high density and small size (42*22.3* 20.5mm). Additionally, it outstands with the operation for 80~264VAC, low no load power consumption, high efficiency up to 82%. Moreover, MFM-05-5 is equipped with Class II (no FG) double insulation, excellent dissipation, 5G anti-vibration, high EMC performance, 4KVAC isolation, etc. so it is able to fit IEC/BS EN/EN60601-1 and ANSI/AAMIES60601-1 version three with 2xMOPP level. Besides them, it offers the complete protection functions such as Short circuit, Overload, Over voltage and Over temperature. Thanks to its longevity, high reliability, excellent quality, Meanwell MFM- 05-5 is a very suitable solution for BF (patient contact) type medical device or relevant equipment.
Meanwell MFM-05-5 Encoding
| MFM | Series Name |
| 5 | Rated Wattage |
| 5 | Output Voltage |
Meanwell MFM-05-5 Specifications
| Model | MFM-05-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0-1A | |
| PEAK CURRENT | 1.1A | |
| RATED POWER | 5W | |
| PEAK LOAD(10sec.) | 5.5W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE TOL ERANCE | ±2.5% | |
| LINE REGULATION | ±0.3% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 40ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 80 ~ 264VAC |
| FREQUENCY RANGE | 47 ~ 440Hz | |
| EFFICIENCY (Typ.) | 78% | |
| AC CURRENT (Typ.) | 0.2A/115VAC 0.1A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 25A/115VAC 45A/230VAC | |
| LEAKAGE CURRENT | Touch current <80μA/264VAC | |
| PROTECTION | OVERL OAD | 110% ~ 180% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 3.8-5V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +85℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +100℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| SOLDERING TEMPERATURE | 260℃±5℃/10sec.max. | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING ALTITUDE | 5000 meters | |
| SAFETY & EMC | SAFETY STANDARDS Note.6,9 | IEC60601-1, BS EN/EN60601-1, EAC TP TC 004, UL ANSI/AAMI ES60601-1(3.1 version), CAN/CSA-C22 3rd Edition approved ; Design refer to BS EN/EN60335-1(by request) |
| ISOLATION LEVEL | Primary-Secondary: 2xMOPP | |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC IMMUNITY | BS EN/EN60601-1-2 | |
| OTHERS | MTBF | 9337.3K hrs min. Telcordia SR-332 (Bellcore) ; 1799.5K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 42*22.3*20.5mm (L*W*H) or 1.65"*0.88"0.80" inch | |
| PACKING | 0.018Kg; 270pcs/5.8Kg/0.94CUFT | |
Meanwell MFM-05-5 Features
l 1.65"x0.88" compact size
l 3 years warranty
l No load power consumption<0.075W
l Extremely low leakage current
l Wide operating temp. range -40~+85℃
l EMI class B for classⅡconfiguration
l No minimum load required
l Typical lifetime > 52K hours
l Medical safety approved (2 X MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Suitable for BF application with appropriate system consideration
Meanwell MFM-05-5 Applications
l Mobile clinical workstation
l Medical computer monitor
l Portable medical device
l Medical examination instrument
Meanwell MFM-05-5 Mechanical Diagram
