SPD-10S-277S
9.05
Details

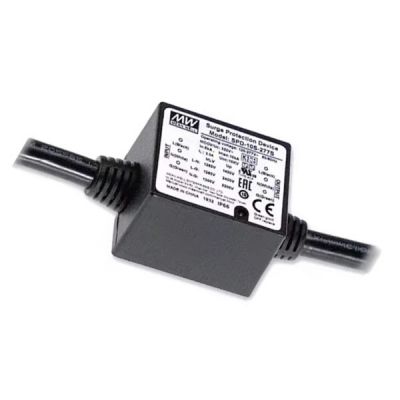

Meanwell SPD-10S-277S is a thermally protected Surge Protective Device with 120~277VAC 50/60Hz 320VAC 3.5A. The model is a self-protected device, specially designed to be used in outdoor and commercial LED lighting fixtures for transient overvoltage protection. At the same time, SPD-10S-277S is constructed with thermally protected varistor technology. Its built-in thermal disconnect function offers additional protection to prevent catastrophic failure and fire hazard even under the extreme circumstances of varistor end-of-life or sustaining over voltage conditions. In addition, SPD-10S-277S highlights a built-in LED indicator, which notifies when replacement of the module is needed.
Meanwell SPD-10S-277S Encoding
| SPD | Series Name |
| 10S | Maximum discharge current |
| 277 | 120-277VAC |
| S | Series Connection |
Meanwell SPD-10S-277S Model Specifications
| Model | SPD-10S-277S |
| OPERATING VOLTAGE | 120 ~ 277VAC 50/60Hz |
| MCOV/UC (MAX. CONTINUOUS OPERATING VOLTAGE | 320VAC |
| CONTINUOUS CURRENT (max.) | 3.5A |
| MLV (MEASURED LIMITING VOLTAGE) | L-N: 1260V L-G: 1260V N-G: 1300V |
| U (VOLTAGE PROTECTION LEVEL) | L-N: 1400V L-G/PE: 2400V N-G/PE: 2200V |
| In (NOMINAL DISCHARGE CURRENT) | 5kA, 8/20μs |
| Imax (MAX. DISCHARGE CURRENT) | 10kA, 8/20μs |
| OPERATING TEMPERATURE | -40 ~ +85℃ |
| SAFETY STANDARDS | UL1449(Fourth Edition), BS EN/EN61643-11, EAC TP TC 004 approved |
| DIMENSION | 46.36*56.76*26 (L*W*H) |
| PACKING | 0.113Kg/Unit ; 0.96Kg/one box(8pcs); 6.5Kg/carton(including 5 boxs) |
Meanwell SPD-10S-277S Features
l Series connection style
l UL1449 type 4 component assemblies
l Line to Ground & Line to Line protected
l 10kA maximum discharge current (Imax), 8/20us
l Thermally protected
l Double insulation cable wire
l LED status indicator
l IP66 design for indoor or outdoor installations
l 10KV surge protection capability
Meanwell SPD-10S-277S Applications
l Outdoor and commercial LED Lighting
l Roadway lighting
l Traffic lighting
l Digital signage
l Wall wash lighting
l Parking garage/lot lighting
l Flood lighting
l Tunnel lighting
l Street lighting
Meanwell SPD-10S-277S Mechanical Diagram
