SPD-10-320S
11.04
Details

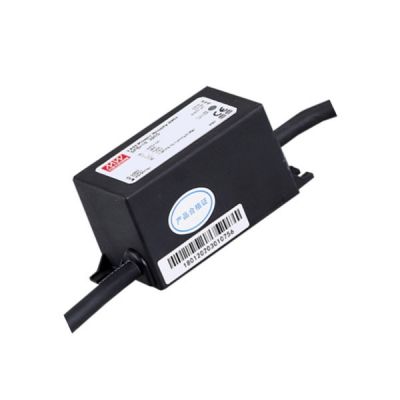

Meanwell SPD-10-320S is a 10kA High Performance Surge Protection Device. The product is mainly composed of MOV, GDT and flame retardant shells, which has flame retardant and overheat (thermal melting) protection. At the same time, SPD-10-320S is suitable for the second and third level surge protection of low-voltage power supply systems and LED electrical equipment. The item could greatly reduce the impact of lightning strikes and high-voltage surges on the lamps, and therefore effectively extend the service life of the lamps.
Meanwell SPD-10-320S Encoding
| SPD | Series Name |
| 10 | Maximum discharge current |
| 320S | 120-320VAC |
Meanwell SPD-10-320S Specifications
| Model | SPD-10-320S |
| OPERATING VOLTAGE | 120 ~ 320VAC 50/60Hz |
| MCOV/UC (MAX. CONTINUOUS OPERATING VOLTAGE | 320VAC |
| CONTINUOUS CURRENT (max.) | 5A |
| U (VOLTAGE PROTECTION LEVEL) | L-N: 1200V L-G/PE: 1500V N-G/PE: 1500V |
| I (NOMINAL DISCHARGE CURRENT) | 5kA, 8/20μs |
| Imax (MAX. DISCHARGE CURRENT) | 10kA, 8/20μs |
| OPERATING TEMPERATURE | -40 ~ +70℃ |
| SAFETY STANDARDS | Compliance to IEC61643-11: 2011, IEC61000-4-5: 2005 |
| DIMENSION | 85*37*40 (L*W*H) |
| PACKING | 0.16Kg/Unit ; 10Kg/carton (60pcs) |
Meanwell SPD-10-320S Features
l Thermally protected
l Double insulation cable wire
l LED status indicator
l Series connection style
l 10KV surge protection capability
l Line to Ground & Line to Line protected
l 10kA maximum discharge current (Imax), 8/20us
l IP67 design for indoor or outdoor installations
l Suitable for LED driver surge protection with class l insulation
Meanwell SPD-10-320S Applications
l Outdoor and commercial LED Lighting
l Roadway lighting
l Traffic lighting
l Digital signage
l Wall wash lighting
l Parking garage/lot lighting
l Flood lighting
l Tunnel lighting
l Street lighting
Meanwell SPD-10-320S Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
