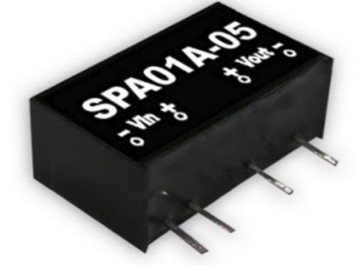

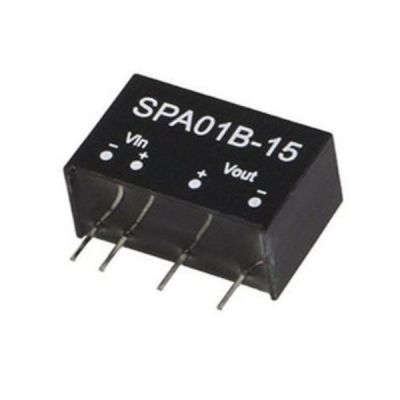

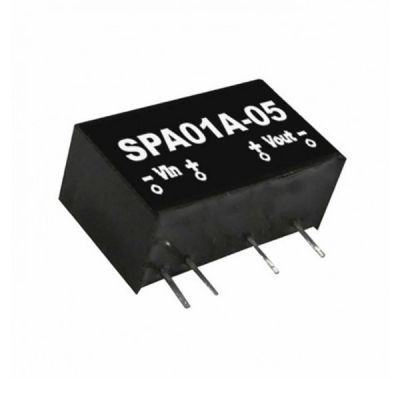

Meanwell SPA01-15 Series is 1W DC-DC Regulated Single Output Converter with 15V6~67mA1W80mVp-p. The product adopts SIP6 single-row packaging with industry standard pin. Compared with the existing 1W regulated product SPR01, SPA01 has wide VDC input range (2:1), high operating temperature range (-40~+90°C), good conversion efficiency (79%), and up to 1500VDC input/output isolation. Considering its low cost, high efficiency and excellent performance, Meanwell SPA01-15 Series is very suitable for industrial control, communication industry and distributed power architecture and other related applications.
Meanwell SPA01-15 Specifications
| ORDER NO. | SPA01A-15 | SPA01B-15 | SPA01C-15 | |
| OUTPUT | DC VOLTAGE | 15V | ||
| CURRENT RANGE | 6~67mA | |||
| RATED POWER | 1W | |||
| RIPPLE & NOISE (max.) | 80mVp-p | |||
| LINE REGULATION | ±0.5% | |||
| LOAD REGULATION | ±0.5% | |||
| VOLTAGE ACCURACY | ±2.0% | |||
| SWITCHING FREQUENCY | 100KHz min. | |||
| INPUT | VOLTAGE RANGE | A: 9~18VDC B: 18~36VDC C: 36~75VDC | ||
| EFFICIENCY (Typ.) | 79.00% | 79.00% | 79.00% | |
| DC CURRENT Full load | A:110mA B:55mA C:27mA | |||
| DC CURRENT No load | A:20mA B:10mA C:7mA | |||
| FILTER | Capacitor Type | |||
| PROTECTION | Fuse recommended | |||
| PROTECTION | OVERLOAD | 130~200% rated output power | ||
| Protection type : Recovers automatically after fault condition is removed | ||||
| SHORT CIRCUIT | All output equipped with short circuit | |||
| Protection type : Recovers automatically after fault condition is removed | ||||
| ENVIRONMENT | WORKING TEMP. | -40~+90℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40~+105℃, 10~95% RH | |||
| TEMP. COEFFICIENT | ±0.05% /℃(0~50℃) | |||
| VIBRATION | 10~500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY | SAFETY STANDARDS | EAC TP TC 020/2011 (EAC TP TC 004 for 48Vin type only) approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVDC | |||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms/500VDC/25℃/70% RH | |||
| ISOLATION CAPACITANCE | 80pF max. | |||
| EMC EMISSION | Compliance to BS EN/EN55032 Class B, FCC part 15 Class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8 light industry level, criteria A, EAC TP TC 020 | |||
| OTHERS | MTBF | 500Khrs min. MIL-HDBK-217F(25℃) | ||
| DIMENSION | 17.4*7.75*11.1mm or 0.69"*0.30"*0.44" inch (L*W*H) | |||
| PACKING | 3g ; 28pcs/per tube, 2800pcs/100 tube/per carton | |||
Meanwell SPA01-15 Features
l Single in line package
l 2 years warranty
l 2:1 wide input range
l 100% full load burn-in test
l Low cost/High reliability
l 1500VDC I/O isolation
l Cooling by free air convection
l Protections: Short circuit/Overload
l Built-in EMI filter without external components

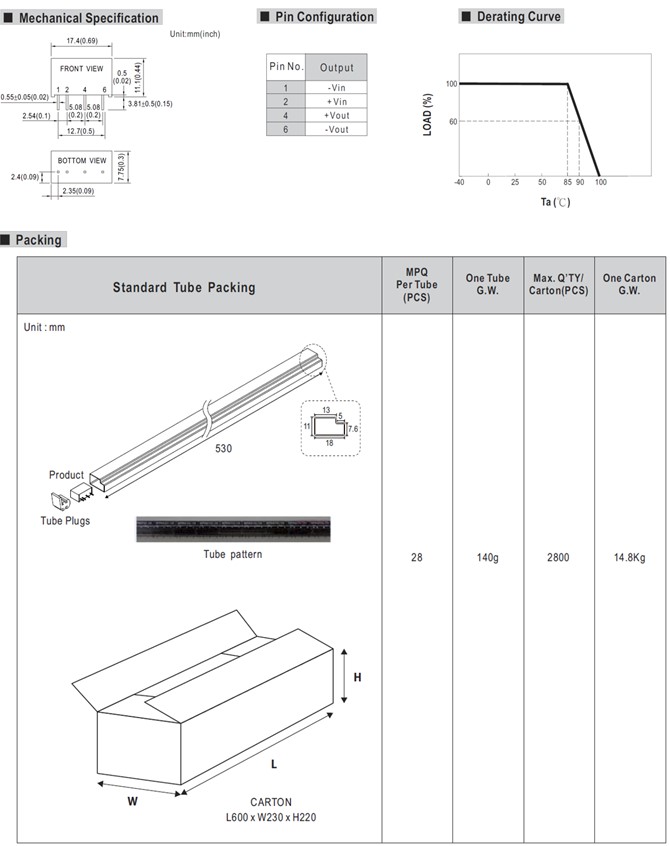

Meanwell SPA01-15 Mechanical Diagram
