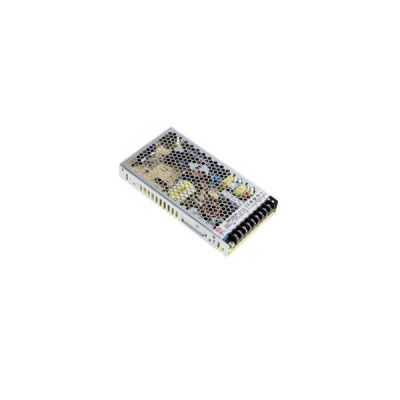

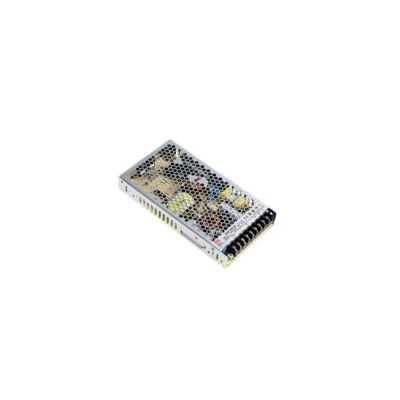

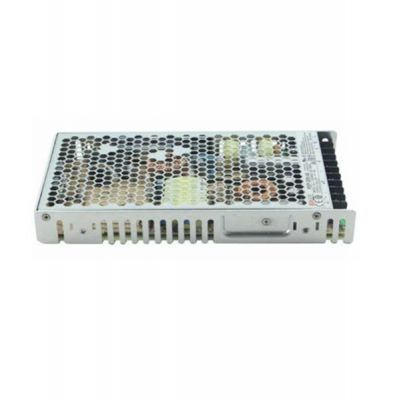

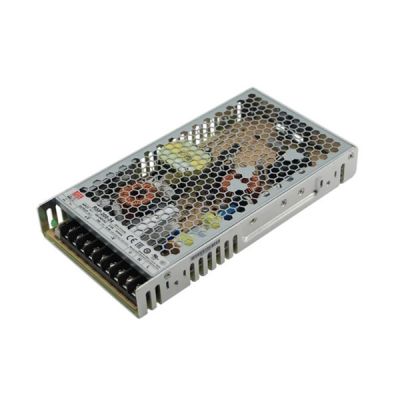

Meanwell RSP-200 Series is a 200W single output enclosed type AC/DC power supply with PFC Functions. The series operates for 88-264VAC input voltage and offers the models with the DC output mostly demanded from the industry. Each model is cooled by free air convection, and work for the temperature up to 70℃. Due to its high efficiency, long longevity and high reliability, Meanwell RSP-200 serves as a high price-to-performance power supply solution for various applications.
Meanwell RSP-200 Series Model Specifications
| Model | RSP-200-2.5 | RSP-200-3.3 | RSP-200-4 | RSP-200-5 | RSP-200-7.5 | RSP-200-12 | RSP-200-13.5 | RSP-200-15 | RSP-200-24 | RSP-200-27 | RSP-200-36 | RSP-200-48 | |
| Output | DC VOLTAGE | 2.5V | 3.3V | 4V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 36V | 48V |
| RATED CURRENT | 40A | 40A | 40A | 40A | 26.7A | 16.7A | 14.9A | 13.4A | 8.4A | 7.5A | 5.56A | 4.2A | |
| CURRENT RANGE | 0-40A | 0-40A | 0-40A | 0-40A | 0-26.7A | 0-16.7A | 0-14.9A | 0-13.4A | 0-8.4A | 0-7.5A | 0-5.56A | 0-4.2A | |
| RATED POWER | 100W | 132W | 160W | 200W | 200.25W | 200.4W | 201.15W | 201W | 201.6W | 202.5W | 200.16W | 201.6W | |
| RIPPLE & NOISE (max.) mVp-p | 100 | 100 | 100 | 150 | 150 | 150 | 150 | 150 | 150 | 200 | 220 | 240 | |
| VOLTAGE ADJ. RANGE | 2.35-2.85V | 2.97-3.8V | 3.7-4.3V | 4.5-5.5V | 6-9V | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 26-31.5V | 32.4-39.6V | 41-56V | |
| VOLTAGE TOLERANCE | ±2% | ±2% | ±2% | ±2% | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.3% | ±0.3% | ±0.3% | ±0.2% | ±0.2% | ±0.2% | ±0.2% | |
| LOAD REGULATION | ±1.5% | ±1.5% | ±1% | ±1% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1500ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load | ||||||||||||
| HOLD UP TIME | 8ms at full load 230VAC /115VAC | ||||||||||||
| Input | VOLTAGE RANGE | 88 ~ 264VAC 124 ~ 370VDC | |||||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||||||
| POWER FACTOR | PF>0.95/230VAC PF>0.98/115VAC at full load | ||||||||||||
| EFFICIENCY (Typ.) | 79.50% | 81.50% | 84.00% | 85.50% | 89.00% | 89.00% | 89.00% | 89.50% | 89.50% | 89.00% | 90.00% | 90.00% | |
| AC CURRENT (Typ.) | 2A/115VAC 1.1A/230VAC | 2.5A/115VAC 1.3A/230VAC | |||||||||||
| INRUSH CURRENT (Typ. ) | 20A/115VAC 40A/230VAC | ||||||||||||
| LEAKAGE CURR ENT | <1mA / 240VAC | ||||||||||||
| PROTECTION | OVERLOAD | 105 ~ 135% rated output power | |||||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||||||||
| OVER VOLTAGE | 2.88-3.5V | 3.8-4.462V | 4.5-5.6V | 5.75-7V | 9.4-10.9V | 13.8-16.2V | 15.7-18.4V | 18.8-21.8V | 27.6-32.4V | 32.9-38.8V | 41.4-48.6V | 58.4-68V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||||||
| OVER TEMPERATURE | Protection type : Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||||||
| ENVIRONMENT | WORKING TEMP | -30 ~ +70℃(Refer to "Derating Curve") | |||||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 45℃) | ||||||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1 ,EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1, AS/NZS 60950.1 approved | |||||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,EAC TP TC 020, CNS13438, GB9254 Class B, GB17625.1 | ||||||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | ||||||||||||
| Others | MTBF | 224.5K hrs min. MIL-HDBK-217F (25℃) | |||||||||||
| DIMENSION | 215*115*30mm (L*W*H) | ||||||||||||
| PACKING | 0.72Kg; 15pcs/11.8Kg/0.67CUFT | ||||||||||||
Meanwell RSP-200 Series Features
l Universal AC input/ Full range
l Built-in active PFC function
l High efficiency up to 90%
l Cooling by free air convection
l Protections: Short circuit/ Overload/Over voltage/Over temperature
l Optional conformal coating
l LED indicator for power on
l 3 years warranty
Meanwell RSP-200 Series Applications
l Burn-in facility
l RF application
l Laser related machine
l Test and measurement instrument
l Factory control or automation apparatus

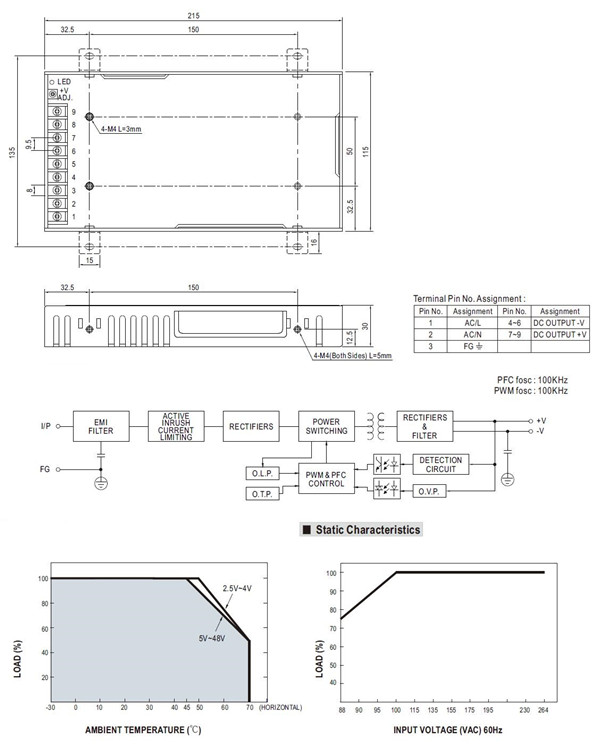

Meanwell RSP-200 Series Mechanical Diagram
