PIR-095-DA2
44.12
Details

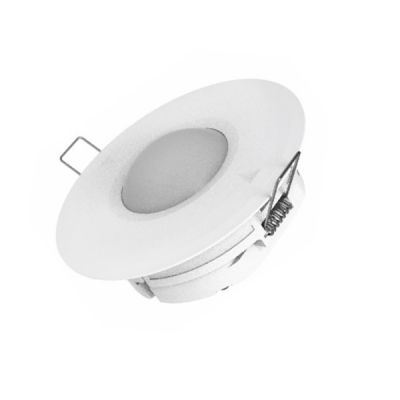

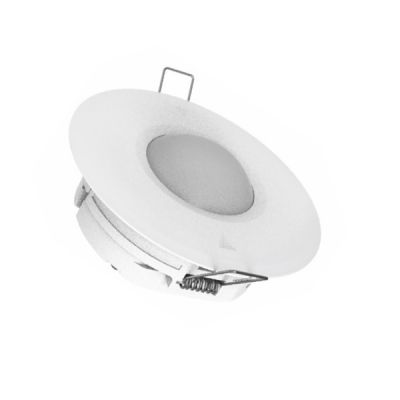

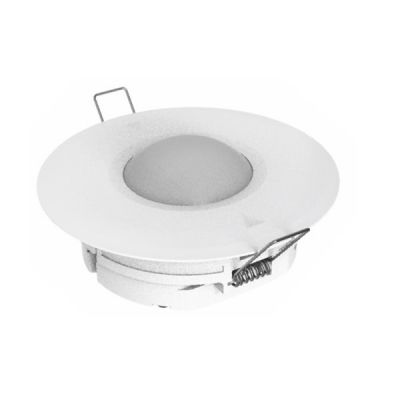

Meanwell PIR-095-DA2 is a DALI-2 PIR Motion Sensor, which complies with DALI-2 certification and IEC-62386 Part 303 standard. The model is used as a sensor for human presence detection, which could be powered and installed via DALI bus. Moreover, when paired with Meanwell DLC-02 software, PIR-095-DA2 enables comprehensive function configurations, facilitating the utilization of DALI-2 digital lighting applications to deliver energy efficiency, intelligent control, and other features. At the same time, when human movement is detected within the sensor coverage area, the scene will be triggered to be output to DALI-2 controller and activated preset lighting scene such as lamp ON/OFF, brightness, color temperature and events, etc. In addition, PIR-095-DA2 sensor can be configured through Meanwell DLC-02 software for single-point area detection or array area applications. The detection range could be set based on user needs.
Meanwell PIR-095-DA2 Encoding
| PIR | PIR Motion Sensor |
| 095 | 095 Series ( Detection Range 12M) |
| DA2 | DALI-2 Version |
| DA2 | DALI2 Part 303 Occupancy Sensor Standard |
Meanwell PIR-095-DA2 Specifications
| Model | PIR-095-DA2 | |
| Input/Output | DALI Bus (Input Range) | Powered by DALI bus (9.5V~22.5V DC according to IEC62386 Part 101) |
| Current Consumption | < 10mA at 16Vdc (Max.) | |
| Signal | DALI-2 Signal (Wiring type) | |
| Detection Range | >=12M | |
| Detection Angle | 120˚ | |
| Function | DALI Standard | Meet DALI standard IEC62386-Part 101、103、303 |
| Event Control | Support Part 303 with Brightness, Color Temperature, Scenes Control | |
| Delay Time Settings | Support Part 303 for Hold Time、Report Time、Dead Time Settings | |
| Software Settings | Via MW DLC-02 software | |
| ENVIRONMENT | Operating Temperature | -10 ~ +45℃ |
| Operating Humidity | 35 ~ 85% RH | |
| Storage Temperature& Humidity | -25 ~ +70℃, 10 ~ 95% RH | |
| Safety&EMC | Standard | IEC62386-101、103、303 ; BS EN/EN 61347-1/2-11 |
| Withstand Voltage | 3000VAC | |
| EMC | BS EN/EN 55015 / 61547; FCC Part 15 | |
| Others | Wire size | 0.5~1.5 mm2 (AWG 20~16) |
| Size | Ø108 * 44.95 mm (D*H) (Cutting hole 9cm) | |
| Packing / Weight | 179g ; 60 PCS / 11.91 Kg | |
| Material | ABS+PC (White) | |
Meanwell PIR-095-DA2 Features
l 2 years warranty
l Detection range 12M
l Powered by DALI Bus
l Compatible with any DALI-2 lighting system
l Compliant with IEC 62386-303 regulation
l Configurable functionality via Meanwell DLC-02 software customized Event Control&Delay Time Settings
Meanwell PIR-095-DA2 Applications
l Building automation
l Department store
l Office lighting
l Warehouse/Parking lot lighting
l Villa lighting
l Public lighting
l Smart home
Meanwell PIR-095-DA2 Mechanical Diagram
