Meanwell Photoelectric Motion Sensor with 6M120°DC12~24V External applied voltage:10V max. Sink current 5mA max

- +
Availability:In stock
SKU PIR-045
Brand Meanwell
Details

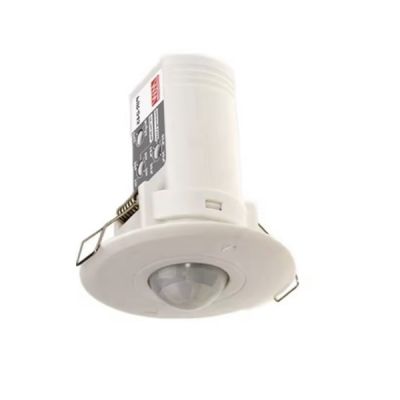

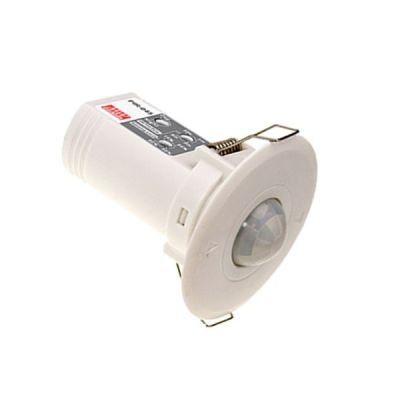

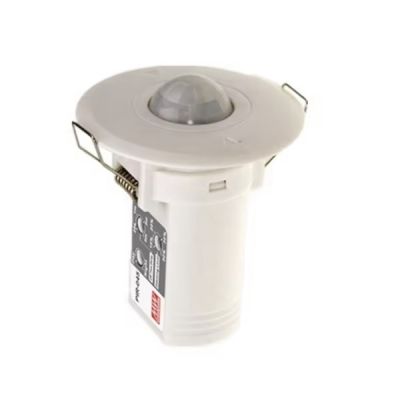

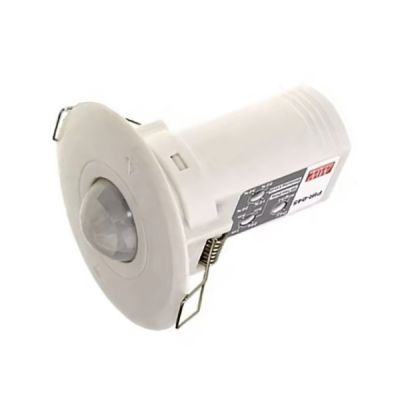

Meanwell PIR-045 is a photoelectric motion sensor with DC input. when PIR-045 deters movement of human, it will provide a dimming signal. At the same time, PIR-045 can work with a 0~10V or 1~10V dimmable led power supply so as to control multiple lighting units simultaneously.

Meanwell PIR-045 price and specs Photoelectric Motion Sensor Saving power 6M 120° DC12~24V YCICT

Meanwell PIR-045 Specifications

Model PIR-045
Input/Output SENSING DISTANCE 6M
SENSING ANGLE 120°
OPERATING VOLTAGE DC12~24V
CURRENT CONSUMPTION >=18mA
OUTPUT DIM External applied voltage:10V max. ; Sink current : 5mA max
Function WORKING PURPOSE Day / Night
STANDBY BRIGHT 10%, 20%, 30%, 50%
DELAY OFF TIME 20s, 1 min, 3min, 5min
DIMMING MODE gradually ON and OFF
ENVIRONMENT Operating Temp. -10 ~ +40
Operating humidity 35 ~ 85% RH non-condensing
Others Material PC
DIMENSION 60*71.3mm (D*H)
PACKING 78g; 160pcs/13.6Kg

Meanwell PIR-045 Features

l  Specific component from Japan

l  Saving power, High sensitivity, Easy installation

l  Compatible with any light source: Tungsten lamp, Light tube, LED light

l  Multi-Function switchablel; OFF delay, Standby brightness, Day/Night functions 3 main settings combination

l  2 years warranty

Meanwell PIR-045 price and specs Photoelectric Motion Sensor Saving power High sensitivity Easy installation YCICT

Meanwell PIR-045 Applications

l  Motion detection

l  Suitable location: Parking lot, Basement, Staircase, Front door, Porch, Garage, Public toilet

Meanwell PIR-045 Series Mechanical Diagram

Meanwell PIR-045 price and specs Photoelectric Motion Sensor Saving power High sensitivity Easy installation YCICT
