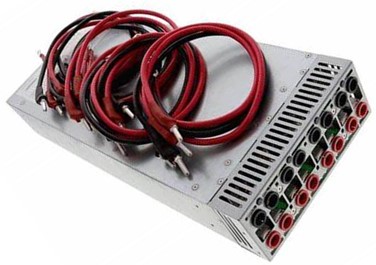

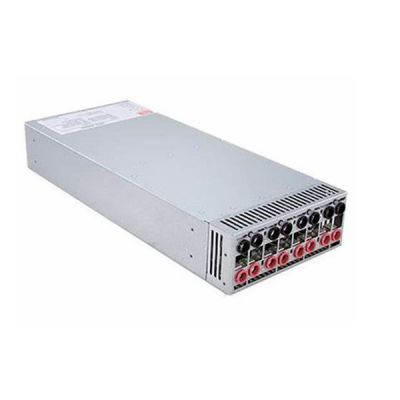

Meanwell ERG-5000 is a Grid Type energy recycling power inverter with 5000W(1250W*4CH)6000W (1500W*4CH)10~60VDC. The model supports 5KW rated and maximum up to 6KW input, achieving high efficiency up to 91%. Meanwhile, CC and CV modes selectable, and 4 input channels design which could be used independently or connected in series or parallel offer flexible combinations for various applications. ERG-5000 provides 2 input voltage models to meet market needs: Blank type (10~60 VDC), and H type (60~420 VDC). Customers can choose according to different industries (such as battery testing equipment, charging energy storage system, charging pile etc). Due to the fully digital design, the input voltage can be set in constant current or constant voltage mode via CANbus protocol or CMU2A controller. The output voltage and current are also programmed. Moreover, ERG-5000 has a variety of built-in monitoring signals like over-temperature, mains abnormality, input voltage abnormality and other functions. In order to allow users to quickly connect and integrate with the system equipment, the input terminal can be equipped with standard NEWSOK quick connect terminal or terminal block screw lock model, which can be flexible to choose the connection mode required for series connection to the front and back end equipment or attachment. ERG- 5000 supports 10~60VDC input voltage&ERG-5000H supports 60~420VDC input voltage.
Meanwell ERG-5000 Encoding

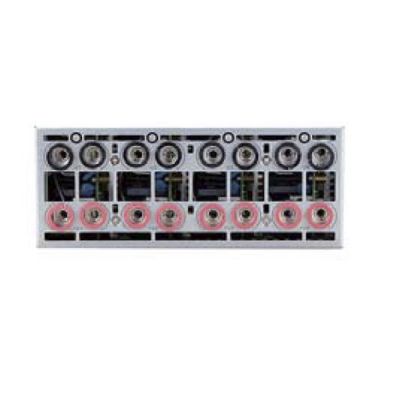

| ERG | Series Name |
| 5000 | Input Wattage |
| H | DC Input Range ( Blank: 10-60 VDC. H: 60-420VDC |
| T | DC Input connection option ( Blank: NEWSOK, T: Terminal block) |
Meanwell ERG-5000 Specifications
| Model | ERG-5000 | |
| DC INPUT | RATED INPUT POWER (Typ.) | 5000W (1250W*4CH) |
| MAX. INPUT POWER (Typ.) | 6000W (1500W*4CH) | |
| INPUT VOLTAGE RANGE | 10 ~ 60VDC | |
| RATED INPUT CURRENT (Typ.) | 105A*4CH | |
| MAX. INPUT CURRENT (Typ.) | 125A*4CH | |
| AC OUTPUT | RATED OUTPUT POWER (Typ.) | 2600 ~ 4320VA (For input 10 ~ 12VDC) 4320 ~ 4400VA (For input 12 ~ 60VDC) |
| AC VOLTAGE RANGE | 180 ~ 264±5VAC, single phase | |
| AC GRID FREQUENCY | 47 ~ 63Hz | |
| MAX. OUTPUT CURRENT (Typ.) | 24A/230VAC | |
| POWER FACTOR (AT RATED POWER) | >0.97 | |
| THD(AT RATED POWER) (Typ.) | <5% | |
| EFFICIENCY (Typ.) | 88% at 48VDC input/5000W | |
| ENERGY RECYCLING RATIO (Typ.) | 80%at 48VDC input/5000W (power supply efficiency>=90.5%) | |
| PROTECTION | OVER TEMPERATURE | Shuts down AC output voltage, reset after fault condition removed |
| DC INPUT OVER VOLTAGE | Shuts down AC output voltage, reset after fault condition removed | |
| DC INPUT UNDER VOLTAGE | Shuts down AC output voltage, reset after fault condition removed | |
| GRID FAULT | Shuts down AC output voltage, reset after fault condition removed | |
| COMMUNICATION ERROR | Shuts down AC output voltage after communication is failed for 4s. Reset after communication is re-built | |
| OVER POWER | Constant power limiting at MAX input power | |
| FUNCTION | COMMUNICATION INTERFACE | CANBus, Baud Rate 250k bps (Maximum 64 units ERG-5000 series) |
| CC/CV/CP MODE SELECT | CONSTANT CURRENT (CC) : 0.5~125A(±1%) / per. Channel | |
| CONSTANT VOLTAGE (CV) : 10~60VDC (±1%) | ||
| PARALLEL | Please refer to function manual and user manual for more detail | |
| ENVIRONMENT | WORKING TEMP | -20 ~ +60℃ |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes | |
| SAFETY&EMC | SAFETY STANDARDS | BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVDC I/P-FG:2.5KVDC O/P-FG:2.5KVDC | |
| I/P: DC input, O/P: AC output (Communiction port JK1 excluded) | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class A | |
| EMC IMMUNITY | Compliance to BS EN/EN55035, BS EN/EN61000-4-2,3,4,5,6 light industry level, criteria A | |
| Others | MTBF | ERG-5000: 148.8K hrs min. Telcordia SR-332 (Bellcore) ; 15K hrs min. MIL-HDBK-217F (25℃) ERG-5000H: 172K hrs min. Telcordia SR-332 (Bellcore) ; 19.5K hrs min. MIL-HDBK-217F (25℃) |
| COOLING | Internal fan cooling | |
| DIMENSION | ERG-5000: 504*211*83.5mm(L*W*H) ERG-5000-T: 460*211*83.5mm(L*W*H) | |
| PACKING | ERG-5000: 12Kg; 1pcs/12Kg/0.86CUFT ERG-5000-T: Kg; 1pcs/ Kg/ CUFT | |
Meanwell ERG-5000 Features
l 5 years warranty
l Wide input voltage range 10~60VDC/60~420VDC by models
l High efficiency up to 91%
l Modular design for flexible configuration
l Flexible CC/CV operation modes
l Remote control and monitoring by CANBus protocol via CMU2A control console
l Maximum 64 units ERG-5000 series that can be connected
l Protections: Over voltage/Under voltage/Over temperature/Over power/Grid fault /Communication error
Meanwell ERG-5000 Applications
l Battery test or power supply aging system
l Energy recycling system
l Connector mechanical test

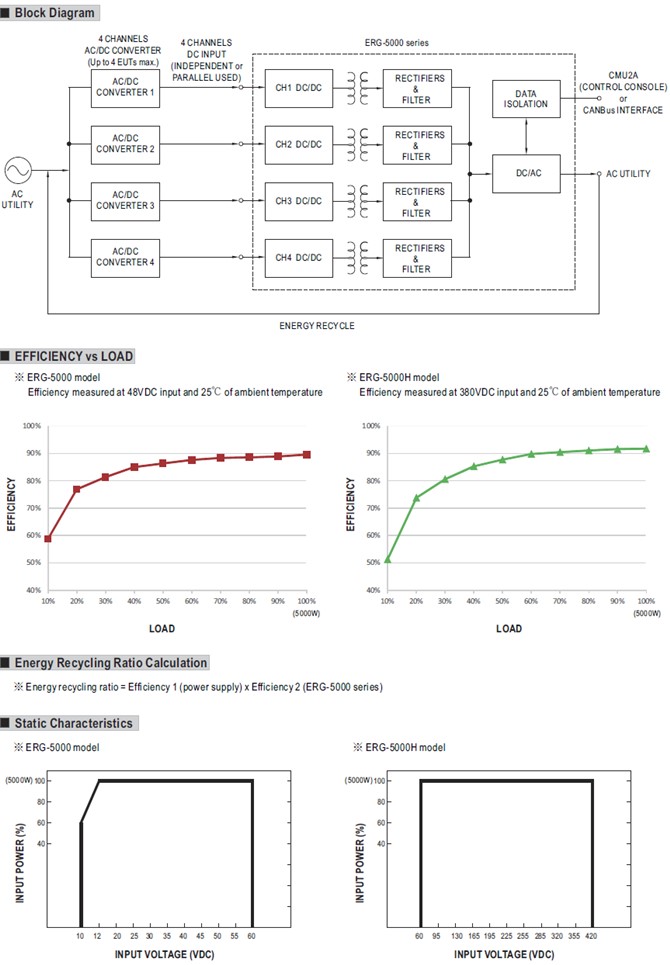

Meanwell ERG-5000 Mechanical Diagram
