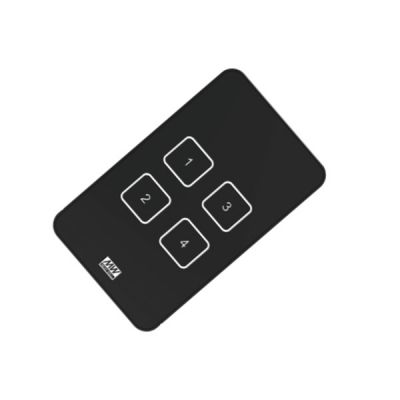

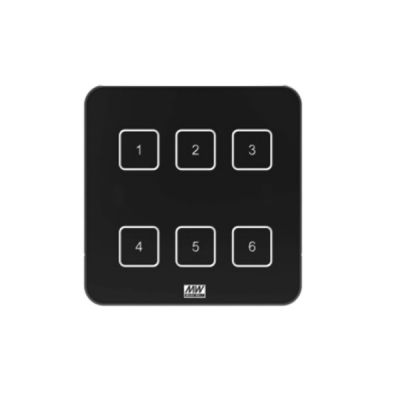

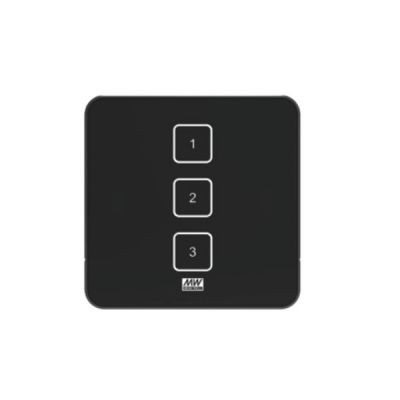

Meanwell DALI-2 Touch Panel (Push Button)

- +
Availability:In stock
SKU Meanwell DTP-2XX
Brand Meanwell
Details

Meanwell DTP-2XX Series is a DALI-2 Touch Panel (Push Button) complying with DALI IEC62386 standard. The product is powered by DALI bus, and has a variety of buttons. At the same time, it designs with a tempered glass and a sliding cover. The cover is easy to install and offers customized laser-engraved symbols. There is a built-in toggle switch to adjust the button backlight and volume, allowing users to customize settings according to their needs. Additionally, all touch panel functions can be set through Meanwell DLC-02 DALI lighting controller software after scanning the devices installed on the DALI Bus. The functions of touch panel buttons could be set according to the customer's lighting scene needs. This touch panel can be used with the Meanwell DLC-02 DALI controller, LED power supply, and various DALI sensors to form a DALI-2 digital lighting system, which control the on/off, color temperature, color, brightness, scene, grouping, scheduling, and various event adjustments, thus meeting most lighting control needs.

Meanwell DTP- 2XX price and datasheet DALI-2 Touch Panel Push Button DTP-206-U DTP-204-U DTP-206-E DTP-203-E YCICT

Meanwell DTP-2XX Series Encoding

DTP Series Name
2 DALI-2 Version

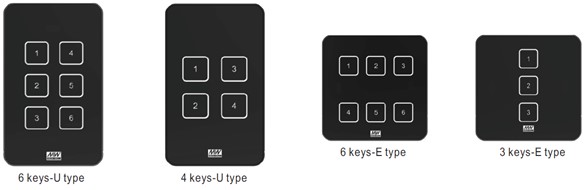

06 Number of Button per panel ( U type: 06/04, E type: 06/03)
U U or E type
□□ Customized code ( please refer page 6 or offer your own symbol)
Blank DALI-2 Touch panel with digit printing
□□ Customer code for customized function symbol ( size: 16.5*16.5mm2)

Meanwell DTP-2XX Series Specifications

Model DTP-206-U DTP-204-U DTP-206-E DTP-203-E
Keys of Button 6 4 6 3
Input DALI Bus DALI bus 9.5V~22.5V DC according to IEC62386 regulation
Current consumption < 6mA at 16VDC
Signal DALI-2
Function DALI standard Meet DALI IEC62386-101103301
Button event Short clickDouble clickLong press
Backlight Adjustable by a built-in toggle switch with 100%50%0%
Volume Adjustable by a built-in toggle switch with 100%50%0%
ENVIRONMENT Operating Temp. -20 ~ +50
Operating humidity 10 ~ 93% RH ; refer to EN50090-2-2
Storage Temperature&Humidity -25 ~ +70, 10 ~ 95% RH
SAFETY & EMC Standard IEC62386-101103301; BS EN/EN61347-1/2-11
Withstand Voltage 3000VAC
EMC BS EN/EN55015 ; BS EN/EN61547 ; FCC Part 15
Others Wire size 0.5~1.5 mm2(AWG 20~16)
Size/unit (L*W*H) 120 * 70 * 26.5mm 86 * 86 * 26.5mm
Packing 0.23Kg ; 24pcs / 6Kg /1.30CUFT 0.2Kg ; 24pcs / 6Kg / 1.30CUFT
Material ABS+PC(Black)

Meanwell DTP-2XX Series Features

l  DALI-2 certified touch panel

l  Compliant with IEC- 62386-301 push button

l  Compatible for all DALI-2 devices and controllers

l  Powered by DALI Bus

l  Configurable functionality via MEANWELL DLC-02 software

l  Each button can trigger multiple modes: Short Click/Double Click/Long Press, to trigger scene or grouping functions

l  Backlight brightness adjustable

l  Touch panel volume adjustable

l  2 years warranty

Meanwell DTP- 2XX price and specs DALI-2 Touch Panel (Push Button) DTP-206-U DTP-204-U DTP-206-E DTP-203-E YCICT

Meanwell DTP-2XX Series Applications

l  Office lighting

l  Commercial lighting

l  Warehouse lighting

l  Home automation

l  Luxury villa lighting

Meanwell DTP- 2XX price and specs DALI-2 Touch Panel DALI Bus DTP-206-U DTP-204-U DTP-206-E DTP-203-E YCICT

Meanwell DTP-2XX Series Mechanical Diagram

Meanwell DTP- 2XX price and specs DALI-2 Touch Panel Push Button DTP-206-U DTP-204-U DTP-206-E DTP-203-E YCICT
