DTP-206-E
15.47
Details

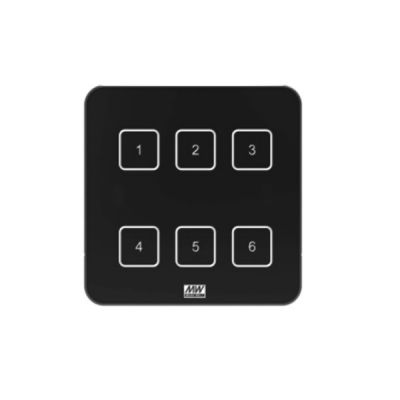

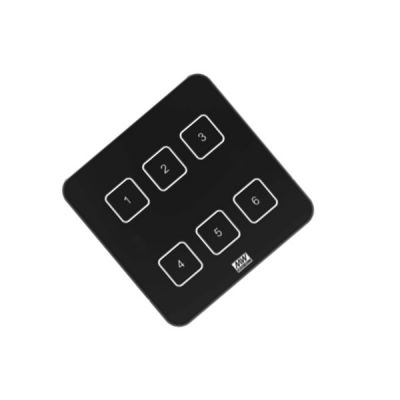

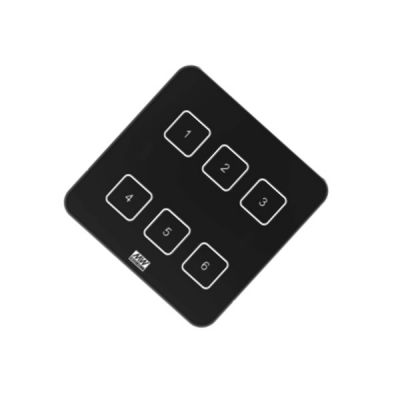

Meanwell DTP-206-E is a DALI-2 Touch Panel (Push Button) with 6 Keys E type, conforming with DALI IEC62386 standard. The item is powered by DALI bus, and has a variety of buttons. DTP-206-E designs with a tempered glass and a sliding cover, and the cover is easy to install offering customized laser-engraved symbols. Meanwhile, there is a built-in toggle switch to adjust the button backlight and volume, permitting users to customize settings according to their needs. Furthermore, all touch panel functions can be set through Meanwell DLC-02 DALI lighting controller software after scanning the devices installed on the DALI Bus. The functions of touch panel buttons could be set according to the customer's lighting scene needs. This touch panel can also be used with Meanwell DLC-02 DALI controller, LED power supply, and various DALI sensors to form a DALI-2 digital lighting system, which control the on/off, color temperature, color, brightness, scene, grouping, scheduling, and various event adjustments, therefore satisfying most lighting control needs.
Meanwell DTP-206-E Encoding
| DTP | Series Name |
| 2 | DALI-2 Version |
| 06 | Number of Button per panel ( U type: 06/04, E type: 06/03) |
| E | U or E type |
| □□ | Customized code ( please refer page 6 or offer your own symbol) |
| Blank | DALI-2 Touch panel with digit printing |
| □□ | Customer code for customized function symbol ( size: 16.5*16.5mm2) |
Meanwell DTP-206-E Specifications
| Model | DTP-206-E | |
| Keys of Button | 6 | |
| Input | DALI Bus | DALI bus 9.5V~22.5V DC according to IEC62386 regulation |
| Current consumption | < 6mA at 16VDC | |
| Signal | DALI-2 | |
| Function | DALI standard | Meet DALI IEC62386-101、103、301 |
| Button event | Short click、Double click、Long press | |
| Backlight | Adjustable by a built-in toggle switch with 100%、50%、0% | |
| Volume | Adjustable by a built-in toggle switch with 100%、50%、0% | |
| ENVIRONMENT | Operating Temp. | -20 ~ +50℃ |
| Operating humidity | 10 ~ 93% RH ; refer to EN50090-2-2 | |
| Storage Temperature&Humidity | -25 ~ +70℃, 10 ~ 95% RH | |
| SAFETY & EMC | Standard | IEC62386-101、103、301; BS EN/EN61347-1/2-11 |
| Withstand Voltage | 3000VAC | |
| EMC | BS EN/EN55015 ; BS EN/EN61547 ; FCC Part 15 | |
| Others | Wire size | 0.5~1.5 mm2(AWG 20~16) |
| Size/unit (L*W*H) | 86 * 86 * 26.5mm | |
| Packing | 0.2Kg ; 24pcs / 6Kg / 1.30CUFT | |
| Material | ABS+PC(Black) | |
Meanwell DTP-206-E Features
l 2 years warranty
l Powered by DALI Bus
l DALI-2 certified touch panel
l Backlight brightness adjustable
l Touch panel volume adjustable
l Compliant with IEC- 62386-301 push button
l Compatible for all DALI-2 devices and controllers
l Configurable functionality via MEANWELL DLC-02 software
l Each button can trigger multiple modes: Short Click/Double Click/Long Press, to trigger scene or grouping functions
Meanwell DTP-206-E Applications
l Office lighting
l Commercial lighting
l Warehouse lighting
l Home automation
l Luxury villa lighting
Meanwell DTP-2XX Series Mechanical Diagram
