MDS15C

As low as $25.24

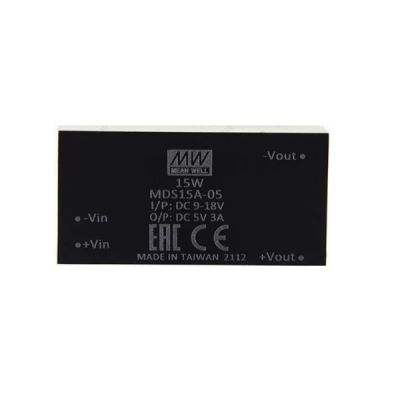

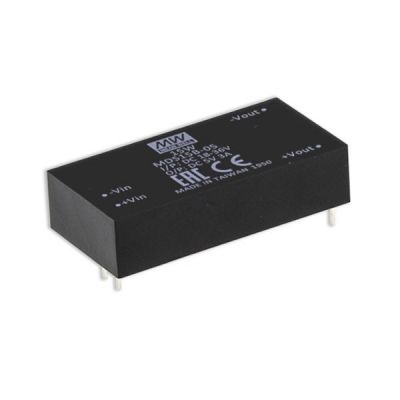

Meanwell 15W 2"x1" Package Medical Grade DC-DC Converter

- +
Availability:In stock
SKU Meanwell MDS15C
Brand Meanwell
Details

Meanwell MDS15C Series is 15W isolated DC-DC converter. The product stands out with regulated module type and medical grade with 2"x1"package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 88%, wide working temperature range -40~+90℃, 4KVAC I/P-O/P high isolation voltage, compliance with IEC60601-1 medical standard, continuous-mode short circuit protection, etc. In addition, MDS15C models account for different input voltage 9~18V,18~36V and 36~75V 2:1 wide input range, and various output voltage 5V/12V/1 5V/24V. Considering its high reliability, excellent quality and competitive price, Meanwell MDS15C Series is ideal for end-of-line medical devices that require increased system insulation and reduced leakage current, thereby improving overall system safety and avoiding the risk of electric shock to patients.

Meanwell MDS15C price and datasheet 15W Medical Grade DC-DC Converter MDS15C-05 MDS15C-12 MDS15C-15 MDS15C-24 48v ycict

Meanwell MDS15C Series Encoding

MDS Series Name
15 Rated Wattage
C Input voltage (A: 9~18Vdc B: 18~36Vdc C: 36~75Vdc)
05 Output Voltage (5/12/15/24Vdc

Meanwell MDS15C Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
MDS15C-05 Normal 48V (36~75V) 5mA 390mA 5V 3000mA 86% 5600μF
MDS15C-12 5mA 350mA 12V 1250mA 87% 1000μF
MDS15C-15 5mA 360mA 15V 1000mA 87% 720μF
MDS15C-24 5mA 360mA 24V 625mA 88% 220μF
INPUT VOLTAGE RANGE A: 9~18Vdc B: 18~36Vdc C: 36~75Vdc
SURGE VOLTAGE (100ms max.) 12Vin models : 25Vdc, 24Vin models : 50Vdc, 48Vin models : 100Vdc
FILTER Pi type
PROTECTION (Typ.) Fuse recommended. 12Vin models: 4A delay time Type, 24Vin models: 2A delay time Type, 48Vin models: 1A delay time Type
OUTPUT VOLTAGE ACCURACY ±1.0%
RATED POWER 15W
RIPPLE & NOISE 60mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SWITCHING FREQUENCY (Typ.) 12Vin/24Vin:250KHz, 48Vin:300KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 110 ~ 185% rated output power
Protection type : Recovers automatically after fault condition is removed
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +90 (Refer to "Derating Curve")
CASE TEMPERATURE +110 max.
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.03%/ (0~70)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260 max
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS IEC60601-1(LVD) 3rd edition, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P 4KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 100pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55011 Class A without external components
Radiated BS EN/EN55011 Class A without external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 1, ±15KV air, ±8KV contact
Radiated Susceptibility BS EN/EN61000-4-3 Level 1, 10V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, ±2KV
Surge BS EN/EN61000-4-5 Level 1, ±1KV Line-Line, ±2KV Line-GND
Conducted BS EN/EN61000-4-6 Level 1, 10Vrms(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 2, 10A/m
OTHERS MTBF 1060Khrs MIL-HDBK-217F(25)
DIMENSION 50.8*25.4*12mm (2*1*0.47 inch)
CASE MATERIAL UL94V-0 plastic case
PACKING 30g; 18pcs/per tube, 432pcs/24 tube max./carton

Meanwell MDS15C Series Features

l  3 years warranty

l  2:1 wide input range

l  Low patient leakage current<5μA

l  Wide operating temperature range -40~+90℃

l  Medical safety approved (2xMOPP) according to IEC60601-1

l  No minimum load required

l  DIP 2"x1" package with international standard pinout

l  Protections: Short circuit (Continuous)/Overload/Input under voltage

l  4000VAC high I/O isolation (Reinforced isolation)

Meanwell MDS15C price and specs 15W DIP Medical Grade DC-DC Converter MDS15C-05 MDS15C-12 MDS15C-15 MDS15C-24 48v ycict

Meanwell MDS15C Series Applications

l  CT scanning

l  Medical carts

l  Medical devices

l  Oral care equipment

l  Medical oxygen monitor

Meanwell MDS15C price and specs 15W Medical Grade DC-DC Converter MDS15C-05 MDS15C-12 MDS15C-15 MDS15C-24 48v ycict

Meanwell MDS15C Series Mechanical Diagram

Meanwell MDS15C price and specs 15W DIP Medical Grade DC-DC Converter MDS15C-05 MDS15C-12 MDS15C-15 MDS15C-24 ycict
