MDS15A-05
25.01
Details

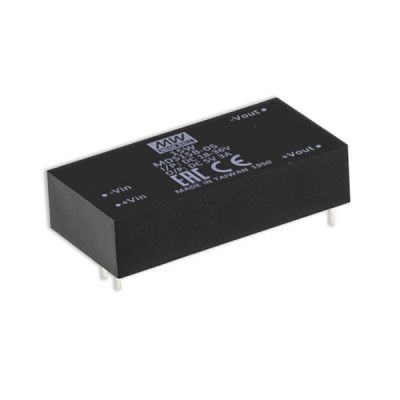

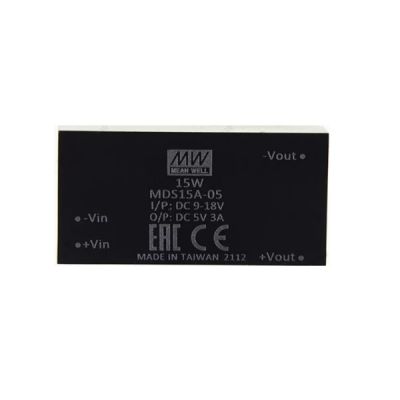

Meanwell MDS15A-05 is 15W isolated DC-DC converter with 10mA1500mA5V3000mA. The model stands out with regulated module type and medical grade with 2"x1"package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 88%, wide working temperature range -40~+90℃, 4KVAC I/P-O/P high isolation voltage, compliance with IEC60601-1 medical standard, continuous-mode short circuit protection, etc. What’s more, MDS15A models account for different input voltage 9~18V,18~36V and 36~75V 2:1 wide input range, and various output voltage 5V/12V/1 5V/24V. Due to its high reliability, excellent quality and competitive price, Meanwell MDS15A-05 is ideal for end-of-line medical devices that require increased system insulation and reduced leakage current, thereby improving overall system safety and avoiding the risk of electric shock to patients.
Meanwell MDS15A-05 Encoding
| MDS | Series Name |
| 15 | Rated Wattage |
| A | Input voltage (A: 9~18Vdc B: 18~36Vdc C: 36~75Vdc) |
| 05 | Output Voltage (5/12/15/24Vdc |
Meanwell MDS15A-05 Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| MDS15A-05 | Normal 12V (9~18V) | 10mA | 1500mA | 5V | 3000mA | 85% | 5600μF |
| MDS15A-12 | 10mA | 1450mA | 12V | 1250mA | 88% | 1000μF | |
| MDS15A-15 | 10mA | 1450mA | 15V | 1000mA | 87% | 720μF | |
| MDS15A-24 | 10mA | 1450mA | 24V | 625mA | 85% | 220μF | |
| INPUT | VOLTAGE RANGE | A: 9~18Vdc B: 18~36Vdc C: 36~75Vdc | |||||
| SURGE VOLTAGE (100ms max.) | 12Vin models : 25Vdc, 24Vin models : 50Vdc, 48Vin models : 100Vdc | ||||||
| FILTER | Pi type | ||||||
| PROTECTION (Typ.) | Fuse recommended. 12Vin models: 4A delay time Type, 24Vin models: 2A delay time Type, 48Vin models: 1A delay time Type | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±1.0% | |||||
| RATED POWER | 15W | ||||||
| RIPPLE & NOISE | 60mVp-p | ||||||
| LINE REGULATION | ±0.5% | ||||||
| LOAD REGULATION | ±0.5% | ||||||
| SWITCHING FREQUENCY (Typ.) | 12Vin/24Vin:250KHz, 48Vin:300KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| OVERLOAD | 110 ~ 185% rated output power | ||||||
| Protection type : Recovers automatically after fault condition is removed | |||||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +90℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +110℃ max. | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.03%/℃ (0~70℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃ max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | IEC60601-1(LVD) 3rd edition, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P 4KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 100pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55011 | Class A without external components | |||||
| Radiated | BS EN/EN55011 | Class A without external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 1, ±15KV air, ±8KV contact | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 1, 10V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, ±2KV | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, ±1KV Line-Line, ±2KV Line-GND | |||||
| Conducted | BS EN/EN61000-4-6 | Level 1, 10Vrms(e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 2, 10A/m | |||||
| OTHERS | MTBF | 1060Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 50.8*25.4*12mm (2*1*0.47 inch) | ||||||
| CASE MATERIAL | UL94V-0 plastic case | ||||||
| PACKING | 30g; 18pcs/per tube, 432pcs/24 tube max./carton | ||||||
Meanwell MDS15A-05 Features
l 2:1 wide input range
l Low patient leakage current<5μA
l Wide operating temperature range -40~+90℃
l Medical safety approved (2xMOPP) according to IEC60601-1
l No minimum load required
l Protections: Short circuit (Continuous)/Overload/Input under voltage
l 4000VAC high I/O isolation (Reinforced isolation)
l 3 years warranty
l DIP 2"x1" package with international standard pinout
Meanwell MDS15A-05 Applications
l Medical devices
l Medical oxygen monitor
l CT scanning
l Medical carts
l Oral care equipment
Meanwell MDS15A-05 Mechanical Diagram
