Meanwell 3W DIP Package DC-DC Medical Grade Regulated Converter

- +
Availability:In stock
SKU Meanwell MDS03G
Brand Meanwell
Details

Meanwell MDS03G Series is a 3W isolated and regulated DC-DC converter. The product outstands module type, and medical grade with DIP 24 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 81%, wide working temperature range -40~+90℃, 6KVDC or 4.2KVAC I/P-O/P high isolation voltage, compliance with IEC60601-1 medical standard, continuous-mode short circuit protection, etc. What’s more, MDS03G & MDD03G models account for different input voltage 9~36V and 18~75V 4:1 wide input range, and various output voltage: 5V/12V/15V for single output, and ±5V/±12V/±15V for dual output. Considering its high reliability, excellent quality, and competitive price, Meanwell MDS03G Series is very suitable for medical systems requiring ultra-low leakage current.

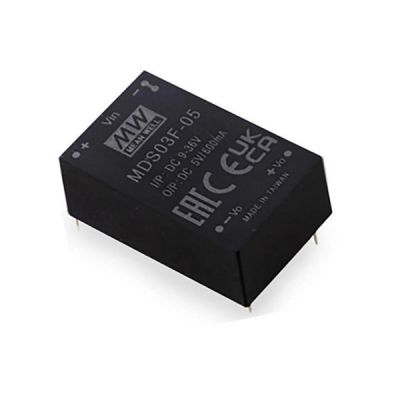

Meanwell MDS03G price and specs 3w DIP dc-dc medical Converter MDS03G-05 MDS03G-12 MDS03G-15 MDS03G MDD03G 24v 48v YCICT

Meanwell MDS03G Series Model Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
MDS03G-05 Normal 24V, 48V (18~75V) 15mA 160mA 5V 0-600mA 80% 330μF
MDS03G-12 15mA 160mA 12V 0-250mA 80% 47μF
MDS03G-15 15mA 160mA 15V 0-200mA 81% 47μF
INPUT VOLTAGE RANGE F: 9~36Vdc , G: 18~75Vdc
SURGE VOLTAGE (100ms max.) F models : 50Vdc ; G models : 100Vdc
FILTER Pi type
PROTECTION (Typ.) Fuse recommended. F models: 2A slow-blow Type, G models: 1A slow-blow Type
OUTPUT VOLTAGE ACCURACY ±2.0%
RATED POWER 3W
RIPPLE & NOISE 150mVp-p
LINE REGULATION ±0.5%
LOAD REGULATION ±0.5%
SWITCHING FREQUENCY (Typ.) 250KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
OVERLOAD 110~250% rated output power
Protection type: Recovers automatically after fault condition is removed
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +90 (Refer to "Derating Curve")
CASE TEMPERATURE +105 max
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.05% / (0 ~ 71)
SOLDERING TEMPERATURE 1.5mm from case of 3 ~ 5sec./265 max.
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS IEC60601-1(LVD) 3rd edition, EAC TP TC 020/2011(EAC TP TC 004 for 48Vin type only) approved
WITHSTAND VOLTAGE I/P-O/P:6KVDC or 4.2KVAC
ISOLATION RESISTANCE I/P-O/P:1000M Ohms / 500VDC / 25/ 70% RH
ISOLATION LEVEL Primary-secondary: 2xMOPP when system input voltage is with 250VAC, 50/60Hz
ISOLATION CAPACITANCE (Typ.) 20pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55011 N/A
Radiated BS EN/EN55011 Class A without external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 ±15KV air
Radiated Susceptibility BS EN/EN61000-4-3 10V/m
EFT/Burest BS EN/EN61000-4-4 ±2KV
Surge BS EN/EN61000-4-5 ±2KV Line-Line
Conducted BS EN/EN61000-4-6 10Vrms(e.m.f.)
Magnetic Field BS EN/EN61000-4-8 30A/m
OTHERS MTBF >454Khrs MIL-HDBK-217F(25)
DIMENSION 31.8*20.3*12.2mm (1.25*0.8*0.48 inch)
CASE MATERIAL UL94V-0 plastic case
PACKING 17g ; 15pcs/per tube, 750pcs/50 tube max./carton

Meanwell MDS03G Series Features

l  4:1 wide input range

l  3 years warranty

l  Low patient leakage current <5μA

l  Wide operating temperature range -40 ~+90℃

l  Protections: Short circuit (Continuous) / Overload

l  DIP 24 package with international standard pinout

l  6KVDC or 4.2KVAC high I/O isolation (Reinforced isolation)

l  Medical safety approved (2xMOPP) according to lEC60601-1

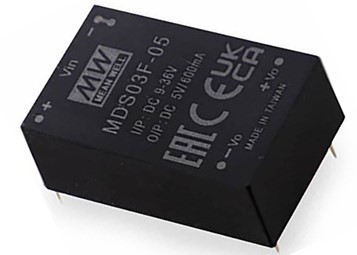

Meanwell MDS03G price and specs 3w dc-dc medical grade Converter MDS03G-05 MDS03G-12 MDS03G-15 MDS03G MDD03G YCICT

Meanwell MDS03G Series Applications

l  CT scanning

l  Medical carts

l  Medical devices

l  Oral care equipment

l  Industrial control system

l  Medical oxygen monitor

Meanwell MDS03G price and specs 3w DIP dc-dc medical grade Converter MDS03G-05 MDS03G-12 MDS03G-15 MDS03G MDD03G YCICT

Meanwell MDS03G Series Mechanical Diagram

Meanwell MDS03G price and datasheet 3w dc-dc medical grade Converter MDS03G-05 MDS03G-12 MDS03G-15 MDS03G MDD03G YCICT
