MDS01L-03N
9.51
Details

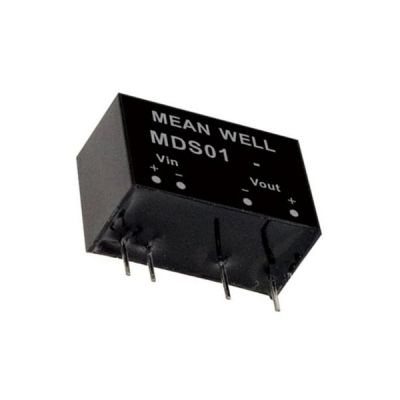

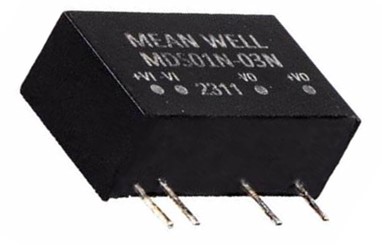

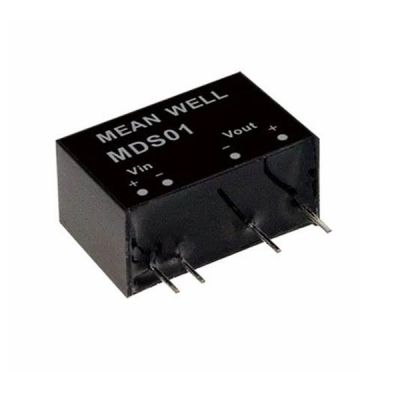

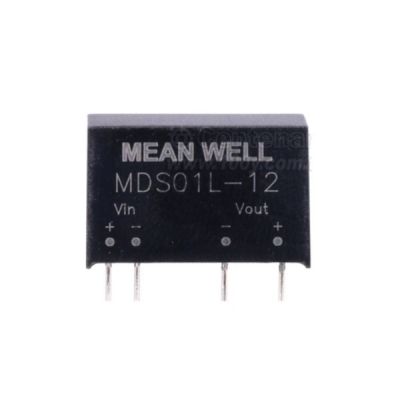

Meanwell MDS01L-03N is a 1W isolated and unregulated DC-DC converter with 30mA257mA3.3V31-303mA. The model features module type, medical grade with SIP7 package. Meanwhile, MDS01L-03N highlights international standard pins, high efficiency reaching up to 84%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P high isolation voltage, short circuit protection, etc. Additionally, MDS01L-N&MDD01L-N account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. Due to its high reliability, excellent quality, and competitive price, Meanwell MDS01L-03N is suitable for medical systems, ultra-low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell MDS01L-03N Encoding
| MD(S) | Series Name | S: Single Output |
| D: Dual Output | ||
| 01 | Rated Wattage | |
| L | Input voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N:21.6-26.4Vdc) | |
| 3 | Output Voltage(3.3/5/12/15Vdc, ±5V/±12V/±15Vdc) | |
| N | New Series | |
Meanwell MDS01L-03N Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| MDS01L-03N | Normal 5V (4.5~5.5V) |
30mA | 257mA | 3.3V | 31-303mA | 76% | 1000μF |
| MDS01L-05N | 30mA | 248mA | 5V | 20-200mA | 79% | 1000μF | |
| MDS01L-12N | 26mA | 240mA | 12V | 9-84mA | 82% | 220μF | |
| MDS01L-15N | 29mA | 240mA | 15V | 7-67mA | 84% | 220μF | |
| INPUT | VOLTAGE RANGE | L:4.5~5.5Vdc M:10.8~13.2Vdc N:21.6~26.4Vdc | |||||
| FILTER | Internal capacitor | ||||||
| PROTECTION | Fuse recommended. 500mA Slow-Blow Type for all models | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±5.0% | |||||
| RATED POWER | 1W | ||||||
| RIPPLE & NOISE | 100mVp-p | ||||||
| LINE REGULATION | 1.2% for 1% input variation | ||||||
| LOAD REGULATION | ±15% for 3.3Vo, 5Vo ; ±10% for others | ||||||
| SWITCHING FREQUENCY (Typ.) | 30KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +95℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +105℃ | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.02% / ℃ (0 ~ 90℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃ max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | IEC62368-1 / UL62368-1(Expect for 15Vo/±15Vo models), LVD IEC60601-1, EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:6KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 10pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032, BS EN/EN55011 | Class A/B with external components | |||||
| Radiated | BS EN/EN55032, BS EN/EN55011 | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2, ±4KV contact, Level 3, ±8KV air | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV / 5KHz | |||||
| Surge | BS EN/EN61000-4-5 | Level 2, 3V(e.m.f.) | |||||
| Conducted | BS EN/EN61000-4-6 | Level 1, 1A/m | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 0.5KV Line to Ground | |||||
| OTHERS | MTBF | 15000Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 19.7*7.1*11.5mm (0.775*0.279*0.452 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton | ||||||
Meanwell MDS01L-03N Features
l Low cost
l 3 years warranty
l SIP7 package with international standard pinout
l Operating temperature range -40 ~+95℃
l Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo ) and LVD IEC60601-1
l Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
l Low patient leakage current <2μA
l Protections: Short circuit (Continuous)
l 6KVDC high I/O isolation (Reinforced insulation)
Meanwell MDS01L-03N Applications
l Medical devices
l Medical oxygen monitor
l CT scanning
l Medical carts
l Oral care equipment
l Telecom/datacom system
l Wireless network
l Industrial control facility
Meanwell MDS01L-03N Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
Abundant supply to meet market demand. The warehouse is rich in goods with all kinds of commodities, which Can meet the needs of different customers.
Fast delivery and high efficiency. The warehouse has sufficient supply, when customers need to order, we can quickly find the goods, and deliver out, which effectively improves the efficiency and saves valuable time for customers
