MDR-60-12
13.58
Details

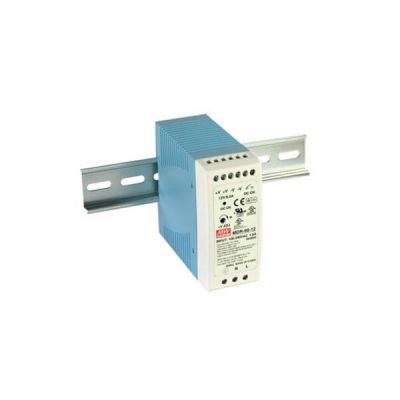

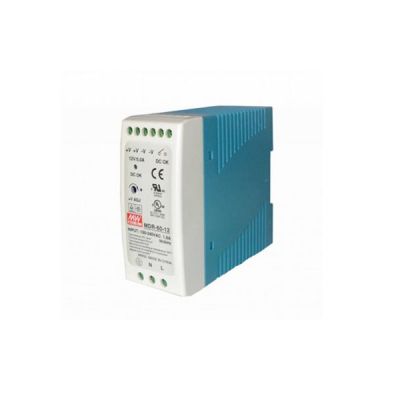

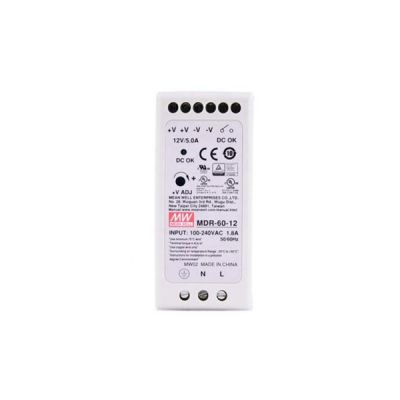

Meanwell MDR-60-12 is Single Output Ultra Slim Industrial DIN Rail Power Supply with 12V5A0-5A60W120mVp-p12-15V. It can be installed on DIN rail TS-35/7.5 or 15 and natural air convection cooling. Additionally, this model is also with Built-in active DC OK relay contact and short-circuit, overload and over-voltage protections. As the flexible DIN rail mounting system increases the installation speed, all equipment can be easily snapped into the metal rail. What’s more, Meanwell MDR-60-12 could be easily arranged on the DIN rail using a closed junction box or in a location with limited space. Similar devices can be installed in close proximity to each other, therefore, reducing the wiring required. At the same time, MDR-60-12 is equipped with Class l, Div 2 Hazardous L ocations T4 and and undergoing 100% full load burn-in test. Thanks to its high efficiency, high reliability and long longevity, Meanwell MDR-60-12 is widely applied in a variety of automation, instrumentation and industrial applications.
Meanwell MDR-60-12 Specifications
| Model | MDR-60-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 5A | |
| CURRENT RANGE | 0-5A | |
| RATED POWER | 60W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 12-15V | |
| VOLTAGE TOLERANCE | ±1.0% | |
| LINE REGUL ATION | ±1.0% | |
| LOAD REGULATION | ±1.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load | |
| HOLD UP TIME | 50ms/230VAC 20ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT (Typ.) | 1.8A/115VAC 1A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 30A/115VAC 60A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 15.6 ~ 18V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| FUNCTION | DC OK ACTIVE SIGNAL | Relay contact rating(max.): 30V/1A resistive |
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6 | |
| SAFETY &EMC | SAFETY STANDARDS | UL508, UL62368-1, TUV BS EN/EN62368-1,Class I, Div. 2 Group A, B, C, D Hazardous Locations T4, EAC TP TC 004,BSMI CNS14336-1, AS/NZS 60950.1 , IS13252(Part1)/IEC60950-1approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 299.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 40*90*100mm (W*H*D) | |
| PACKING | 0.33Kg; 42pcs/14.8Kg/0.82CUFT | |
Meanwell MDR-60-12 Features
l 3 years warranty
l DC OK relay contact
l 100% full load burn-in test
l Universal AC input/Full range
l LED indicator for power on
l Protections: Short circuit / Overload / Over voltage
l Cooling by free air convection
l No load power consumption<0. 75W
l Can be installed on DIN rail TS-35/7.5 or 15
l Class Il.Div 2 Hazardous L ocations T4
Meanwell MDR-60-12 Mechanical Diagram
