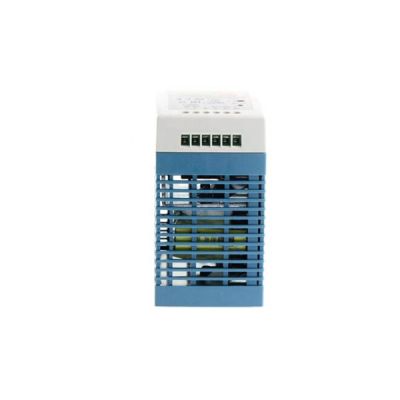

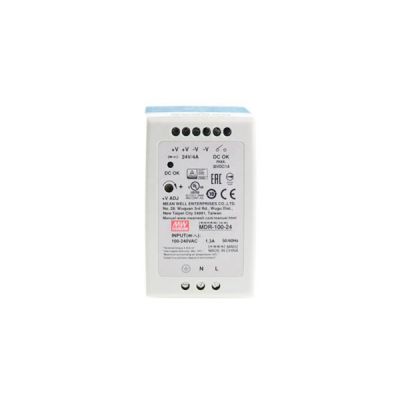

MDR-100
15.16
Details
Meanwell MDR-100 Series is 96W Single Output Industrial DIN Rail Power Supply with Short circuit/Overload/Over voltage/Over temperature Protections. The entire series can be installed on DIN rail TS-35/7.5 or 15 and cooled by natural air convection. In addition, the series is also with Built-in active DC OK relay contact. As the flexible DIN rail mounting system increases the installation speed, all equipment can be easily snapped into the metal rail. Furthermore, Meanwell MDR-100 series could be easily arranged on the DIN rail using a closed junction box or in a location with limited space. Similar devices can be installed in close proximity to each other, thus reducing the wiring required. At the same time, MDR-100 Series is equipped with ZCS/ZVS technology to reduce power dissipation and 100% full load burn-in test. Considering its high efficiency, high reliability and long longevity, Meanwell MDR-100 Series is widely applied in a variety of automation, instrumentation and industrial applications.
Meanwell MDR-100 Series Model Specifications
| Model | MDR-100-12 | MDR-100-24 | MDR-100-48 | |
| Output | DC VOLTAGE | 12V | 24V | 48V |
| RATED CURRENT | 7.5A | 4A | 2A | |
| CURRENT RANGE | 0-7.5A | 0-4A | 0-2A | |
| RATED POWER | 90W | 96W | 96W | |
| RIPPLE & NOISE (max.) | 120mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 12-15V | 24-30V | 48-56V | |
| VOLTAGE TOLERANCE | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGUL ATION | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±1.0% | ±1.0% | ±1.0% | |
| SETUP, RISE TIME | 3000ms, 50ms/230VAC 3000ms, 50ms/115VAC at full load | |||
| HOLD UP TIME | 50ms/230VAC 20ms/115VAC at full load | |||
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | ||
| FREQUENCY RANGE | 47 - 63Hz | |||
| POWER FACTOR (Typ.) | PF≧0.95/230VAC PF≧0.98/115VAC at full load | |||
| EFFICIENCY (Typ.) | 83.00% | 86.00% | 87.00% | |
| AC CURRENT (Typ.) | 1.3A/115VAC 0.8A/230VAC | |||
| INRUSH CURRENT (Typ. ) | COLD START 30A/115VAC 60A/230VAC | |||
| LEAKAGE CURRENT | <1mA / 240VAC | |||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | ||
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
| OVER VOLTAGE | 15.6-18V | 31.2-36V | 57.6 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||
| OVER TEMPERATURE | Shut down o/p voltage, auto-recovery or re-power on to recover | |||
| FUNCTION | DC OK ACTIVE SIGNAL | Relay contact rating(max.): 30V/1A resistive | ||
| ENVIRONMENT | WORKING TEMP | -10 ~ +60℃(Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |||
| VIBRATION | Component : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes ; Mounting : Compliance to IEC60068-2-6 | |||
| SAFETY &EMC | SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 60950.1 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32),BS EN/EN61204-3 Class B,BS EN/EN61000-3-2,-3,EAC TP TC 020,CNS13438 Class B | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2, BS EN/EN61204-3, heavy industry level, criteria A, EAC TP TC 020 | |||
| Others | MTBF | 346K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 55*90*100mm (W*H*D) | |||
| PACKING | 0.42Kg; 30pcs/13.6Kg/0.82CUFT | |||
Meanwell MDR-100 Series Features
l Universal AC input/ Full range
l Protections: Short circuit/Overload/Over voltage/Over temperature
l ZCS/ZVS technology to reduce power dissipation
l Cooling by free air convection
l Can be installed on DIN rail TS -35/7.5or 15
l DC OK relay contact
l No load power consumption<1 W
l LED indicator for power on
l 100% full load burn-in test
l 3 years warranty

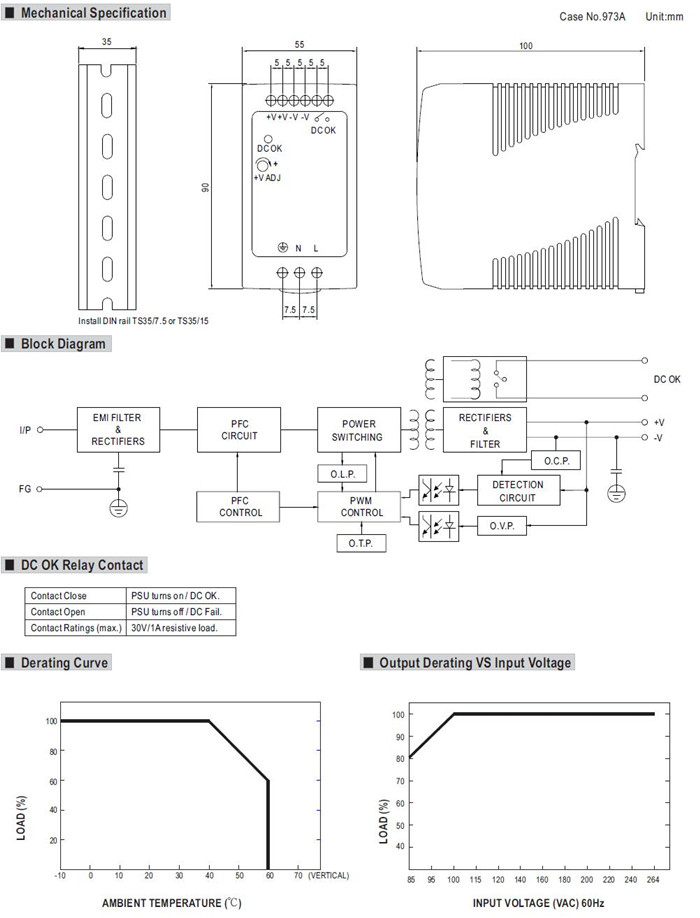

Meanwell MDR-100 Series Mechanical Diagram
