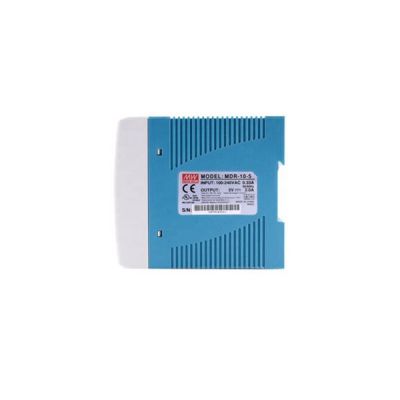

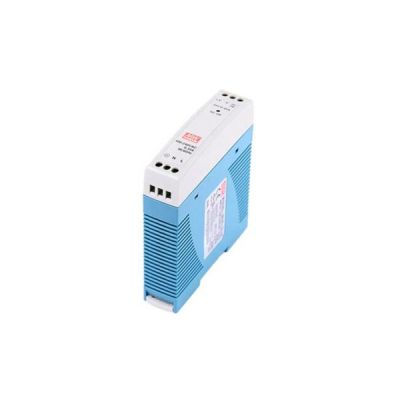

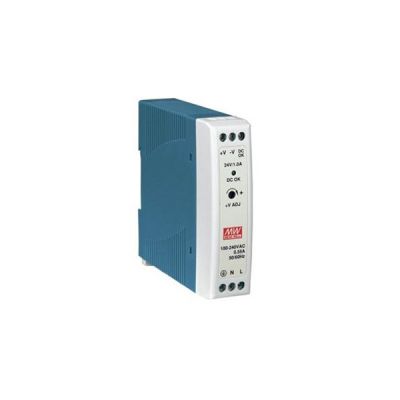

Meanwell MDR-10 Series is an ultra-thin single-output DIN rail power supply with short-circuit, overload and over-voltage protection. These PSUs can be installed on DIN rail TS-35/7.5 or 15 and can be cooled by natural air convection. The flexible DIN rail mounting system can increase the installation speed because all equipment can be easily snapped into the metal rail. MDR-10 series can be easily arranged on the DIN rail using a closed junction box or in a location with limited space. Similar devices can be installed in close proximity to each other, reducing the wiring required. Most power supplies are convectively cooled, so no cooling fans are required. MDR-10 series can be widely used in a variety of automation, instrumentation and industrial applications. They are used to power various DC operating equipment including sensors, motors, actuators, solenoid valves and relays.
Meanwell MDR-10 Series Model Specifications
| Model | MDR-10-5 | MDR-10-12 | MDR-10-15 | MDR-10-24 | |
| Output | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 2A | 0.84A | 0.67A | 0.42A | |
| CURRENT RANGE | 0-2A | 0-0.84A | 0-0.67A | 0-0.42A | |
| RATED POWER | 10W | 10W | 10W | 10W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 4.5-5.5V | 10.8-13.8V | 13.5-18V | 21.6-29V | |
| VOLTAGE TOLERANCE | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| LINE REGUL ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | |
| LOAD REGULATION | ±5.0% | ±3.0% | ±3.0% | ±2.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | ||||
| HOLD UP TIME | 120ms/230VAC 25ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||
| FREQUENCY RANGE | 47 - 63Hz | ||||
| EFFICIENCY (Typ.) | 77.00% | 81.00% | 81.00% | 84.00% | |
| AC CURRENT (Typ.) | 0.33A/115VAC 0.21A/230VAC | ||||
| INRUSH CURRENT (Typ. ) | COLD START 35A/115VAC 70A/230VAC | ||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||
| PROTECTION | OVERLOAD | Above 105% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | ||||
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||||
| FUNCTION | DC OK ACTIVE SIGNAL (max.) | 3.75 ~ 6V / 50mA | 9 ~ 13.5V / 40mA | 11.5 ~ 16.5V / 40mA | 18 ~ 27V / 20mA |
| SAFETY &EMC | SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry level, criteria A, EAC TP TC 020 |
||||
| Others | MTBF | 584K hrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 22.5*90*100mm (W*H*D) | ||||
| PACKING | 0.15Kg; 72pcs/11.8Kg/1.04CUFT | ||||
Meanwell MDR-10 Series Features
l Universal AC input/Full range
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l Can be installed on DIN rail TS-35/7.5or 15
l Built in DC OK active signal
l LED indicator for power on
l No load power consumption<0.75W
l 100% full load burn-in test
l 3 years warranty

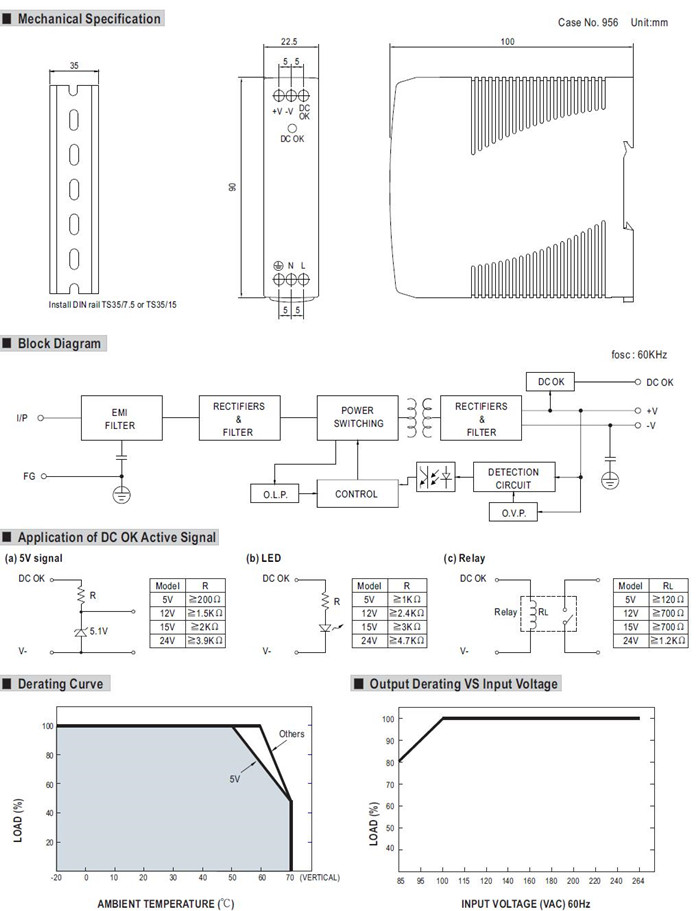

Meanwell MDR-10 Series Mechanical Diagram
