Meanwell 10W Single Output Industrial DIN Rail Power Supply with 5V 2A0-2A10W80mVp-p4.5-5.5V±5.0%±1.0%±5.0%

- +
Availability:In stock
SKU Meanwell MDR-10-5
Brand Meanwell
Details

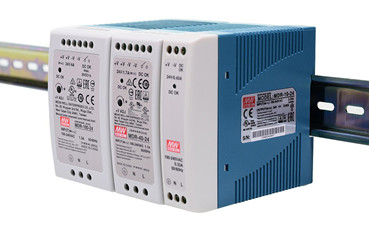

Meanwell MDR-10-5 is an ultra-thin single-output DIN rail power supply with 5V 2A0-2A10W80mVp-p4.5-5.5V. this model can be installed on DIN rail TS-35/7.5 or 15 and can be cooled by natural air convection. The flexible DIN rail mounting system can increase the installation speed because all equipment can be easily snapped into the metal rail. Apart from it, MDR-10-5 can be easily arranged on the DIN rail using a closed junction box or in a location with limited space. Similar devices can be installed in close proximity to each other, reducing the wiring required. Most power supplies are convectively cooled, so no cooling fans are required. Thanks to these functions, MDR-10-5 can be widely used in a variety of automation, instrumentation and industrial applications.

Meanwell MDR-10 Series Model Specifications

Meanwell MDR-10-5 Specifications

Model MDR-10-5
Output DC VOLTAGE 5V
RATED CURRENT 2A
CURRENT RANGE 0-2A
RATED POWER  10W
RIPPLE & NOISE (max.)  80mVp-p
VOLTAGE ADJ. RANGE 4.5-5.5V
VOLTAGE TOLERANCE ±5.0%
LINE REGUL ATION ±1.0%
LOAD REGULATION ±5.0%
SETUP, RISE TIME 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load
HOLD UP TIME  120ms/230VAC 25ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE 47 - 63Hz
EFFICIENCY (Typ.)  77.00%
AC CURRENT (Typ.) 0.33A/115VAC 0.21A/230VAC
INRUSH CURRENT (Typ. ) COLD START 35A/115VAC 70A/230VAC
LEAKAGE CURRENT <1mA / 240VAC
PROTECTION OVERLOAD Above 105% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75-6.75V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP -20 ~ +70(Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/(0 ~ 50)
VIBRATION Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
FUNCTION DC OK ACTIVE SIGNAL (max.) 3.75 ~ 6V / 50mA
SAFETY &EMC SAFETY STANDARDS UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B
EMC IMMUNITY Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry level,
criteria A, EAC TP TC 020
Others MTBF 584K hrs min. MIL-HDBK-217F (25)
DIMENSION 22.5*90*100mm (W*H*D)
PACKING 0.15Kg; 72pcs/11.8Kg/1.04CUFT

Meanwell MDR-10-5 Features

l  3 years warranty

l  Universal AC input/Full range

l  Built in DC OK active signal

l  LED indicator for power on

l  No load power consumption<0.75W

l  100% full load burn-in test

l  Protections: Short circuit/Overload/Over voltage

l  Cooling by free air convection

l  Can be installed on DIN rail TS-35/7.5or 15

Meanwell MDR-10-5 Features

Meanwell MDR-10-5 Mechanical Diagram

Meanwell MDR-10-5 Mechanical Diagram
