MDR-10-24
11.39
Details

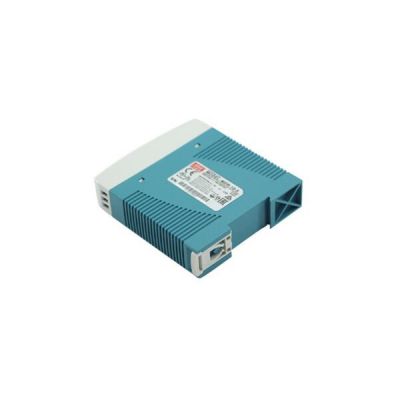

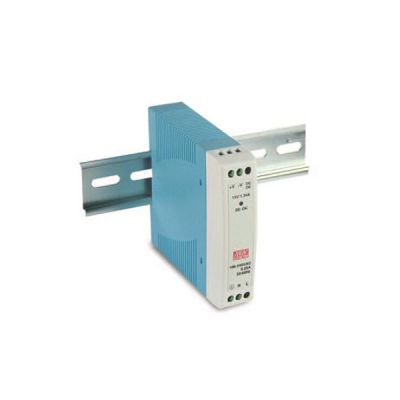

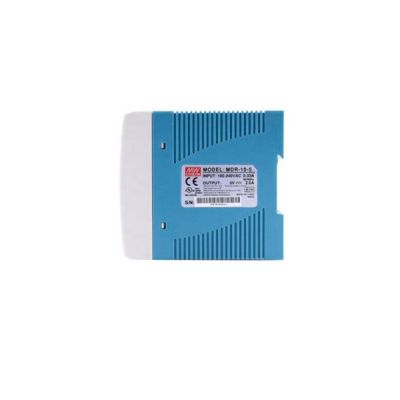

Meanwell MDR-10-24 is an ultra-thin single-output DIN rail power supply with 24V0.42A0-0.42A10W150mVp-p21.6-29V.This model could be installed on DIN rail TS-35/7.5 or 15 and cooled by natural air convection. The flexible DIN rail mounting system increases the installation speed because all equipment can be easily snapped into the metal rail. What’s more, MDR-10-24 can be easily arranged on the DIN rail using a closed junction box or in a location with limited space. Similar devices can be installed in close proximity to each other, reducing the wiring required. Most power supplies are convectively cooled, so no cooling fans are required. Considering these functions, Meanwell MDR-10-24 can be widely used in a variety of automation, instrumentation and industrial applications.
Meanwell MDR-10-24 Specifications
| Model | MDR-10-24 | |
| Output | DC VOLTAGE | 24V |
| RATED CURRENT | 0.42A | |
| CURRENT RANGE | 0-0.42A | |
| RATED POWER | 10W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 21.6-29V | |
| VOLTAGE TOLERANCE | ±2.0% | |
| LINE REGUL ATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 1000ms, 30ms/115VAC at full load | |
| HOLD UP TIME | 120ms/230VAC 25ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 - 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT (Typ.) | 0.33A/115VAC 0.21A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 35A/115VAC 70A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVERLOAD | Above 105% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 27.6-32.4V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 50℃) | |
| VIBRATION | Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | |
| FUNCTION | DC OK ACTIVE SIGNAL (max.) | 18 ~ 27V / 20mA |
| SAFETY &EMC | SAFETY STANDARDS | UL508, TUV BS EN/EN62368-1, EAC TP TC 004, BSMI CNS14336-1, AS/NZS 62368.1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32), BS EN/EN61204-3 Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020, CNS13438 Class B | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2, 3, 4, 5, 6, 8, 11, BS EN/EN55024,BS EN/EN61000-6-1,BS EN/EN61204-3, light industry level, criteria A, EAC TP TC 020 |
|
| Others | MTBF | 584K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 22.5*90*100mm (W*H*D) | |
| PACKING | 0.15Kg; 72pcs/11.8Kg/1.04CUFT | |
Meanwell MDR-10-24 Features
l 3-year warranty
l Built in DC OK active signal
l LED indicator for power on
l 100% full load burn-in test
l Cooling by free air convection
l Universal AC input/Full range
l No load power consumption<0.75W
l Can be installed on DIN rail TS-35/7.5or 15
l Protections: Short circuit/Overload/Over voltage
Meanwell MDR-10-24 Mechanical Diagram
