MDD02N-N
10.63
Details

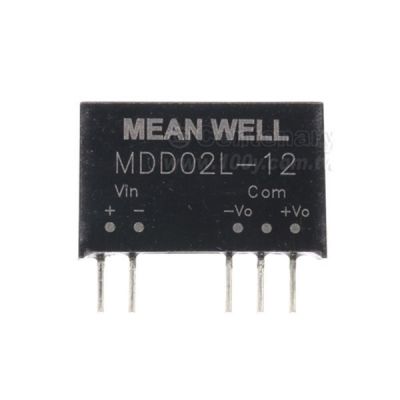

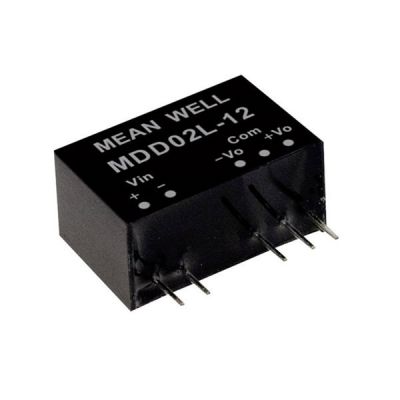

Meanwell MDD02N-N Series is a 2W isolated and unregulated DC-DC converter. The product outstands module type, and medical grade with SIP7 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 86%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P high isolation voltage, short circuit protection, etc. What’s more, MDS02M-N&MDD02M-N models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Considering its high reliability, excellent quality, and competitive price, Meanwell MDD02N-N Series is suitable for medical systems, ultralow leakage current or industrial control, telecommunication field, distributed power architecture, and so on.
Meanwell MDD02N-N Series Encoding
| MD(S) | Series Name | S: Single Output |
| D: Dual Output | ||
| 02 | Rated Wattage | |
| N | Input voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N:21.6-26.4Vdc) | |
| 12 | Output Voltage (3.3/5/12/15Vdc, ±5V/±12V/±15Vdc) | |
| N | New Series | |
Meanwell MDD02N-N Series Model Specifications
| ORDER NO. | INPUT | OUTPUT | EFFICIENCY (TYP.) | CAPACITOR LOAD (MAX) | |||
| INPUT VOLTAGE (RANGE) | INPUT CURRENT | OUTPUT VOLTAGE | OUTPUT CURRENT | ||||
| NO LOAD | FULL LOAD | ||||||
| MDD02N-05N | Normal 24V (21.6~26.4V) |
11mA | 102mA | ±5V | ±20-200mA | 83% | 680μF |
| MDD02N-12N | 10mA | 102mA | ±12V | ±9-84mA | 83% | 150μF | |
| MDD02N-15N | 10mA | 100mA | ±15V | ±7-67mA | 84% | 150μF | |
| INPUT | VOLTAGE RANGE | L:4.5~5.5Vdc M:10.8~13.2Vdc N:21.6~26.4Vdc | |||||
| FILTER | Internal capacitor | ||||||
| PROTECTION | Fuse recommended. 500mA Slow-Blow Type for all models | ||||||
| OUTPUT | VOLTAGE ACCURACY | ±5.0% | |||||
| RATED POWER | 2W | ||||||
| RIPPLE & NOISE | 100mVp-p | ||||||
| LINE REGULATION | 1.2% for 1% input variation | ||||||
| LOAD REGULATION | ±15% for 3.3Vo, 5Vo ;±10% for others | ||||||
| SWITCHING FREQUENCY (Typ.) | 20KHz | ||||||
| PROTECTION | SHORT CIRCUIT | Protection type : Continuous, automatic recovery | |||||
| ENVIRONMENT | COOLING | Free-air convection | |||||
| WORKING TEMP. | -40 ~ +95℃ (Refer to "Derating Curve") | ||||||
| CASE TEMPERATURE | +105℃ | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | 0.02% / ℃ (0 ~ 90℃) | ||||||
| SOLDERING TEMPERATURE | 1.5mm from case of 1 ~ 3sec./260℃max | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | IEC62368-1 / UL62368-1 (Expect for 15Vo/±15Vo models), LVD IEC60601-1, EAC TP TC 020/2011 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:6KVDC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| ISOLATION CAPACITANCE (Typ.) | 25pF | ||||||
| EMC EMISSION | Parameter | Standard | Test Level | ||||
| Conducted | BS EN/EN55032, BS EN/EN55011 | Class A/B with external components | |||||
| Radiated | BS EN/EN55032, BS EN/EN55011 | Class A/B with external components | |||||
| EMC IMMUNITY | Parameter | Standard | Test Level | ||||
| ESD | BS EN/EN61000-4-2 | Level 2,±4KV contact, Level 3,±8KV air | |||||
| Radiated Susceptibility | BS EN/EN61000-4-3 | Level 2, 3V/m | |||||
| EFT/Burest | BS EN/EN61000-4-4 | Level 1, 0.5KV / 5KHz | |||||
| Surge | BS EN/EN61000-4-5 | Level 1, 0.5KV Line to Ground | |||||
| Conducted | BS EN/EN61000-4-6 | Level 2, 3V (e.m.f.) | |||||
| Magnetic Field | BS EN/EN61000-4-8 | Level 1, 1A/m | |||||
| OTHERS | MTBF | 12900Khrs MIL-HDBK-217F(25℃) | |||||
| DIMENSION | 19.7*7.1*11.5mm (0.775*0.279*0.452 inch) | ||||||
| CASE MATERIAL | Non-Conductive black plastic (UL 94V-0 rated) | ||||||
| PACKING | 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton | ||||||
Meanwell MDD02N-N Series Features
l Low cost
l 3 years warranty
l Low patient leakage current <2pA
l Protections: Short circuit (Continuous)
l Operating temperature range -40~+95℃
l 6KVDC high I/O isolation (Reinforced insulation)
l SIP7 package with international standard pinout
l Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
l Comply with IEC/UL62368-1 (Expect for 15Vo/t15Vo) and LVD lEC60601-1
Meanwell MDD02N-N Series Applications
l CT scanning
l Medical carts
l Medical devices
l Wireless network
l Oral care equipment
l Industrial control facility
l Medical oxygen monitor
l Telecom/datacom system
Meanwell MDD02N-N Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
